Key Features

  • Perfect match for 3D park flyers weighing 20–30 oz (565–850 g)
  • Ideal for scale park flyers 25–35 oz (710–990 g)
  • Ideal for models requiring up to 250 watts of power
  • High-torque, direct-drive alternative to inrunner brushless motors

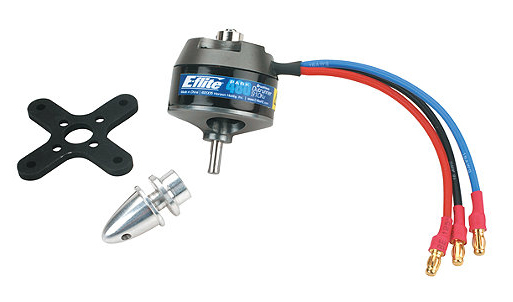

  • Includes mount, prop adapters and mounting hardware
  • External rotor design, 4mm shaft can easily be reversed for alternative motor installations
  • Slotted 12-pole outrunner design
  • Quiet, lightweight operation
  • High-quality construction with ball bearings and hardened steel shaft

Needed To Complete

20A–35A brushless ESC

2S–3S Li-Po or 6- to 10-cell Ni-MH/Ni-CD

10x7–12x6 propeller

Overview

The Park 480 Brushless Outrunner motor is designed to deliver clean and quiet power for 3D park flyers weighing 20 to 30 ounces (565 to 850 grams), scale park flyers weighing 25 to 35 ounces (710 to 990 grams), or models requiring up to 250 watts of power.  It’s an especially good match for E-flite's Mini Edge 3D ARF (EFL2225) and Mini Funtana 3D ARF (EFL2075), and would provide extreme power for sport park flyers such as the Mini Ultra Stick ARF (EFL2250).

Application Airplane
Bearings or Bushings One 4 x 9 x 4mm Bearing and One 4 x 10 x 4mm Bearing
Cells 6–10 Ni-Cd/Ni-MH or 2–3S Li-Po
Continuous Current 21 - 30A
Idle Current (Io) 85A @8V
Maximum Burst Current 25A (15 sec)
Motor Design Outrunner
Overall Diameter 35mm (1.40 in)
Overall Length 33mm (1.30 in)
Power Plant Size 450-480 Electric
RPM/Volt (Kv) 910
Recommended Prop Range 10x7 to 12x6
Resistance (Ri) 08 ohms
Shaft Diameter 4mm (.16 in)
Size Park flyer
Speed Control 20–35A brushless
Type Brushless outrunner
Voltage 7.2 to 12
Weight 87 g (3.1 oz)
Wire Gauge 16






SKU EFLM1500
Barcode # 0605482774236
Brand E-Flite
Shipping Weight 0.2000kg
Shipping Width 0.100m
Shipping Height 0.080m
Shipping Length 0.100m
Shipping Cubic 0.000800000m3
