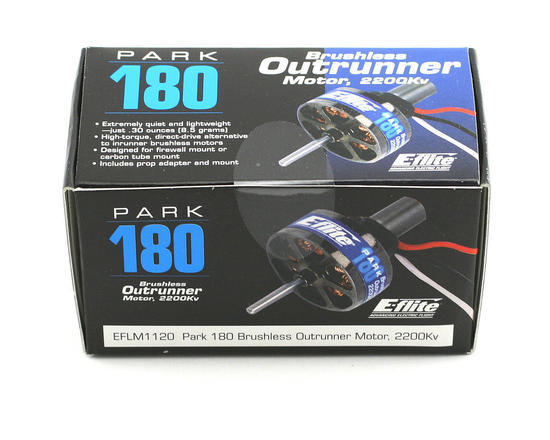

Park 180 Brushless Outrunner Motor, 2200Kv

Key Features

  • Ideal for 3D models weighing 2–3 oz (55–85 g) and sport and scale models weighing 3–6 oz (85–170 g)
  • Ideal for indoor and outdoor small aerobatic park flyers
  • Extremely quiet and lightweight—just .3 oz (8.5 g)
  • High-torque, direct-drive alternative to inrunner brushless motors
  • Designed for firewall mount or carbon tube mount
  • 4- to 8-cell Ni-Cd/Ni-MH or 2–3S Li-Po
  • Up to 30 watts

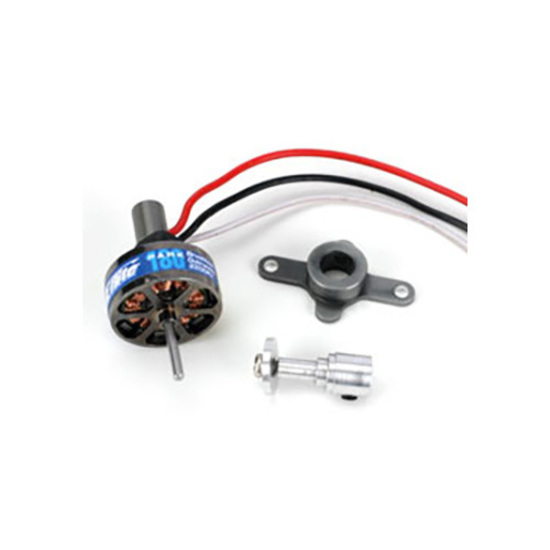

  • Includes prop adapter
  • Includes mount, mounting hardware and 2mm gold BL connectors
  • Upgraded performance for indoor motors
  • High-quality construction with ball bearings and hardened steel shaft

Overview

Ideal for 3D models 2–3 oz (55–85 g) and sport and scale models 3–6 oz (85–170 g), or models requiring up to 30 watts of power.



Product Specifications

Type: Brushless outrunner
Size: 180
Bearings or Bushings: Two 1.5 x 4 x 2mm Bearings
Recommended Prop Range: 3x3 to 6x3 ‘Direct Drive’ for 2S or 4x4 or 4.5x3 for 3S
Voltage: 4.8–11.4V
RPM/Volt (Kv): 2200
Resistance (Ri): .91 ohms
Idle Current (Io): .30A @ 8V
Continuous Current: 2.6A
Maximum Burst Current: 3.2A (15 sec)
Cells: 2–3S Li-Po or 4–8 Ni-Cd/Ni-MH
Speed Control: 4–6A brushless
Weight: 8.5 g (.30 oz)
Overall Diameter: 16mm (.63 in)
Shaft Diameter: 1.5mm
Overall Length: 20mm (.80 in)


Needed to Complete

4-6A Brushless ESC

2-3S Li-Po or 4-8 cell Ni-Cd/Ni-MH

3x3 Direct Drive Prop

SKU EFLM1120
Barcode # 0605482002544
Brand E-Flite
Shipping Weight 0.2000kg
Shipping Width 0.080m
Shipping Height 0.080m
Shipping Length 0.080m
Shipping Cubic 0.000512000m3
