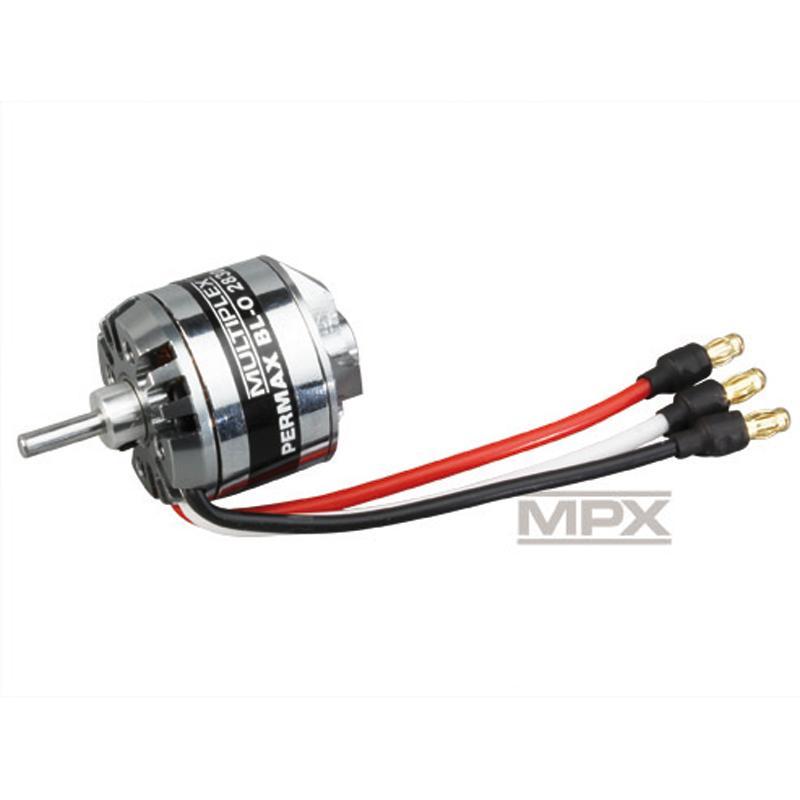

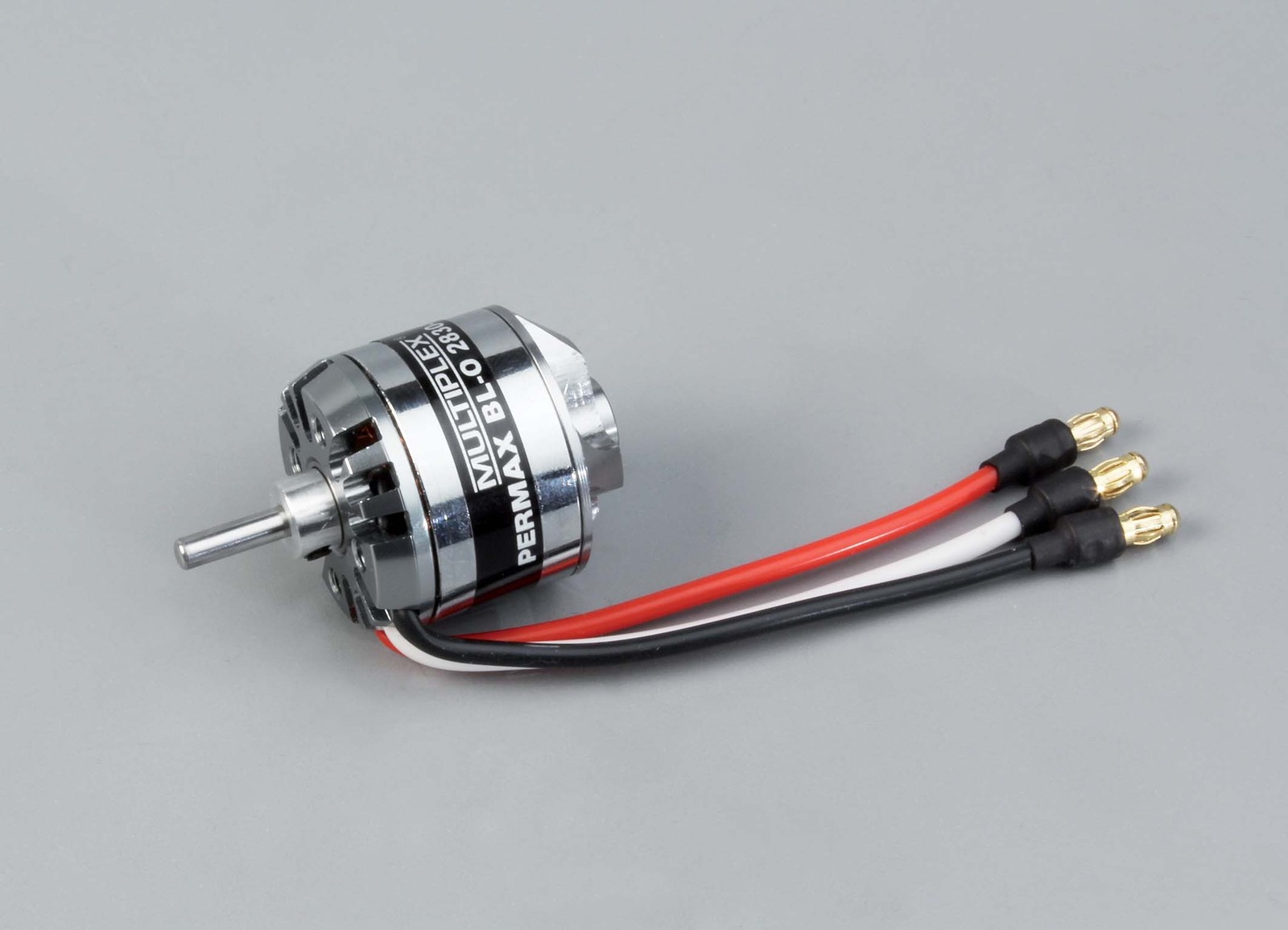

Reasonably priced motors in the 175 and 235 Watt class, suitable for gliders up to 1800g (MPX33 3116), 3D models weighing around 500 g to 700g, aerobatic models up to 900 g and trainers up to about 1100 g (MPX33 3108).

This 235 W motor is included in the MiniMag brushless and TwinStar II brushless power sets, amongst others.

SPECIFICATION

Diameter:

28 mm

Length:

30 mm

Weight:

54 g

Max. output:

235 W

Max. rotational speed:

15.000 Umin-1

Max. case temperature:

65o C

Mounting:

19 / 16 mm / 4 x M3



Type:

BL-O 2830-1100

#

33 3108

RPM / V:

1100

Cell count NiXX / LiPo:

6 - 12 / 2S - 4S

Optimum working range:

10 A – 15 A

Max. current for 15 sec.:

18 A

Shaft Ø:

3,2 mm



SKU MPX333108
Barcode # 4041033071083
Brand Multiplex
