This is the 12 Muffler Extension for the 842, E-2030 OSMG2869, & E2030 Blue Mufflers

Fits the: .20FP, .20FP-S, .20FP-M .25FP, .25FP-S

This Muffler Extension is a 12 spacer that installs between the muffler
and the exhaust port on the side of the cylinder head. This results in the
muffler being farther out from the cowl of the plane. One might elect to use
one of the muffler extensions to keep the fuel residue farther out from a
prized paint job or if the aircraft has a large cowl and the muffler isnt far
enough away from the outside of the cowl.

FEATURES

Natural aluminum construction

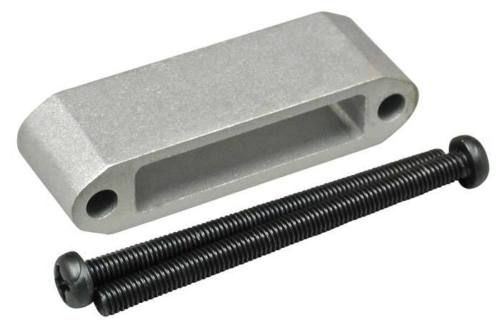

INCLUDES

One muffler extension
Two 3x40mm round phillips head screws w.5 pitch threads

SPECIFICATIONS

Length: 12.5mm
Width: 38mm
Height: 9mm
Mounting hole centers: 32mm
