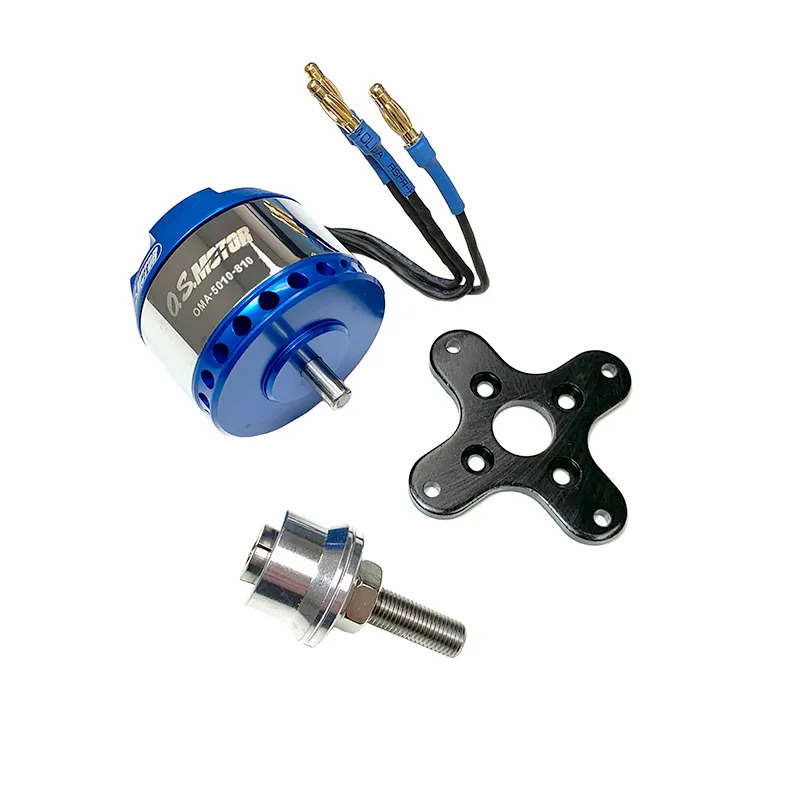

This highly efficient OS motor is intended to be an electric equivalent of the .52 class 4 stroke engine or .40. class 2 stroke. The KV has been chosen so that it works with closer comparable propellers to engines. By fitting an APC 14 x 7E and using a 4 cell, Li-Po battery you can get 9600rpm maximum and thrust of 4kg! To get this performance will require an efficient ESC and a battery that can deliver this current constantly. By going to the 12 x 8E propeller the speed can be increased.

Specs

Diameter   50mm.
Length   42mm
kV   810
Power   814W
Power cover   45A (Max 80A 5sec)
Power cover unloaded   1,8A/10V
Phase resistance   24.5 mm
Number of poles   14
Turn   20
Weight   234g
Shaft Diameter   6mm
Axle length   11.7mm
Wire length:   110mm
Contact Type   4mm Round Gold Connector
Voltage   11,1V-14,8V (3S-4S LiPo)
Regulator   60-80A (depending on propeller selection, see list below)
Propeller   12X8E to 14x10E

SKU OSM51012910
Barcode # 4531028501027
Brand OS Engines
Shipping Weight 0.6000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.002000000m3
