O.S. Motor Mount 65LA/61-91FX/75AX 71905200
SKU code: OSM71905200
Make 4 interest-free payments of $11.50 fortnightly and receive your order now.

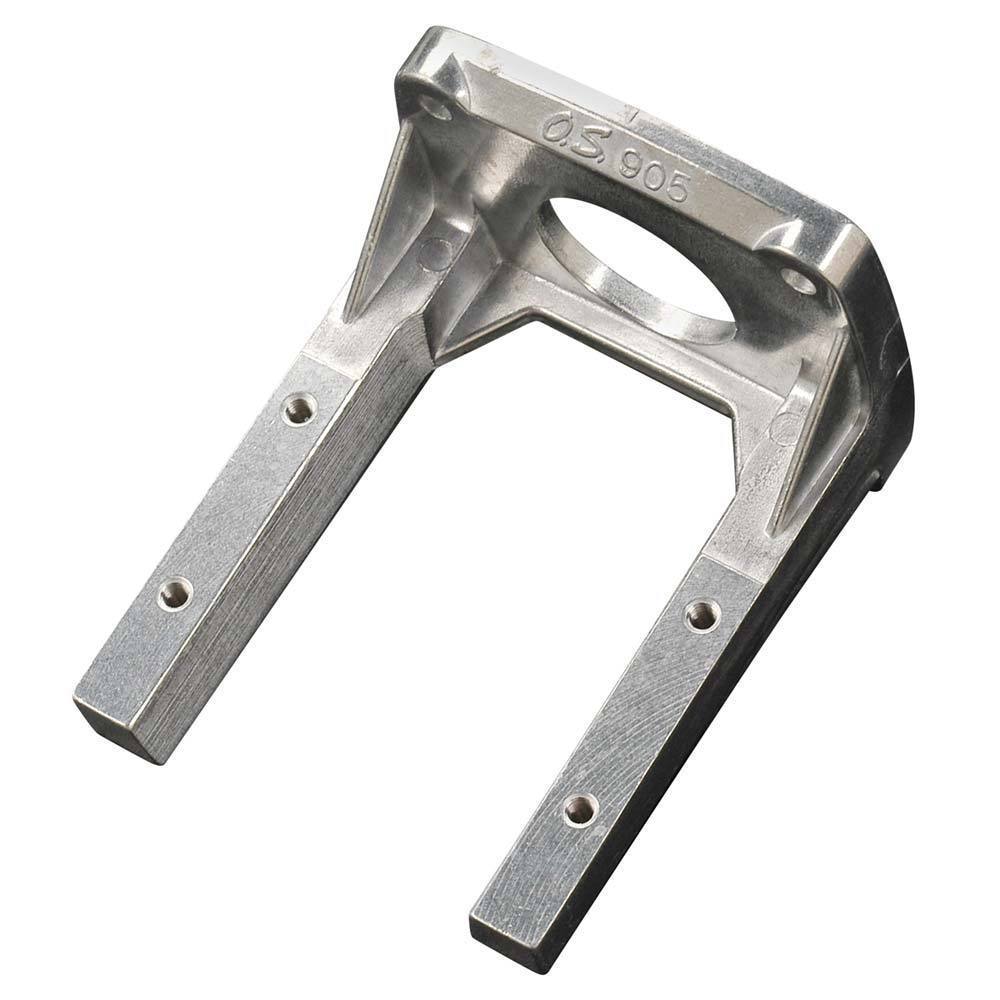

This is a motor mount drilled and tapped to fit O.S.
61SF 61SF-P 61RF 61RF-P 60FP 61FX (2-stroke)
Includes all hardware necessary for mounting the engine to a firewall and to
mount an engine to the engine mount. The nose gear hole is not pre-drilled.
Includes
- Four engine mounting screws (to secure the engine to the mount)-
- M3.5x16
- Four lock washers (for the engine mounting screws)
- Four blind nuts (they fit into the firewall)
- Four motor mount screws (to secure the mount to the firewall)-
- M4x20
- One L-wrench for the screws
Specifications
Type of Material: All Aluminum mount with Steel screws and washers
Type of Mount: Beam Style Square Shaped Back
Length: 78mm (3 )
Width: 45mm (1.77 )
Height: 45mm (1.77 )
Center Distance Between Firewall Mounting Holes: 46.6mm
** Distance from firewall to first engine mounting hole: 37mm
SKU | OSM71905200 |
Barcode # | 4531028601017 |
Brand | OS Engines |
Shipping Weight | 0.2000kg |
Shipping Width | 0.100m |
Shipping Height | 0.080m |
Shipping Length | 0.100m |
Shipping Cubic | 0.000800000m3 |
