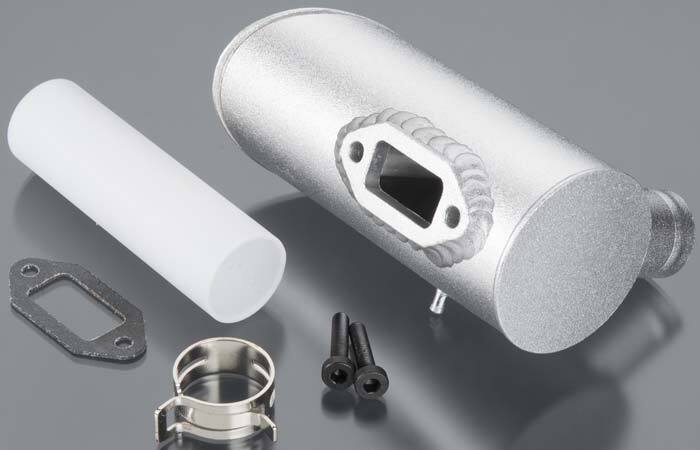

This is the 1-Hole Left Muffler for the DLE-120cc Engine,

FEATURES

Aluminum construction
Plastic muffler extension directs exhaust away from fuselage

INCLUDES

1-Hole Left Muffler
Metal and Fiber Gasket
Two 4.5x22mm Socket Head Cap Screws
Muffler Extension with Compression Clamp

SPECIFICATIONS

Distance between Mounting Hole Centers: 1.65" (42mm)
Muffler Body Diameter: 2.15" (54mm)
Muffler Body Length: 5" (127mm)
Outlet Pipe Diameter: 0.98" (25mm)
Outlet Pipe Length: 1.2" (27.5mm)
Muffler Extension Length: 3.75" (95.2mm)
Muffler Extension Diameter: 1.10" (28mm)

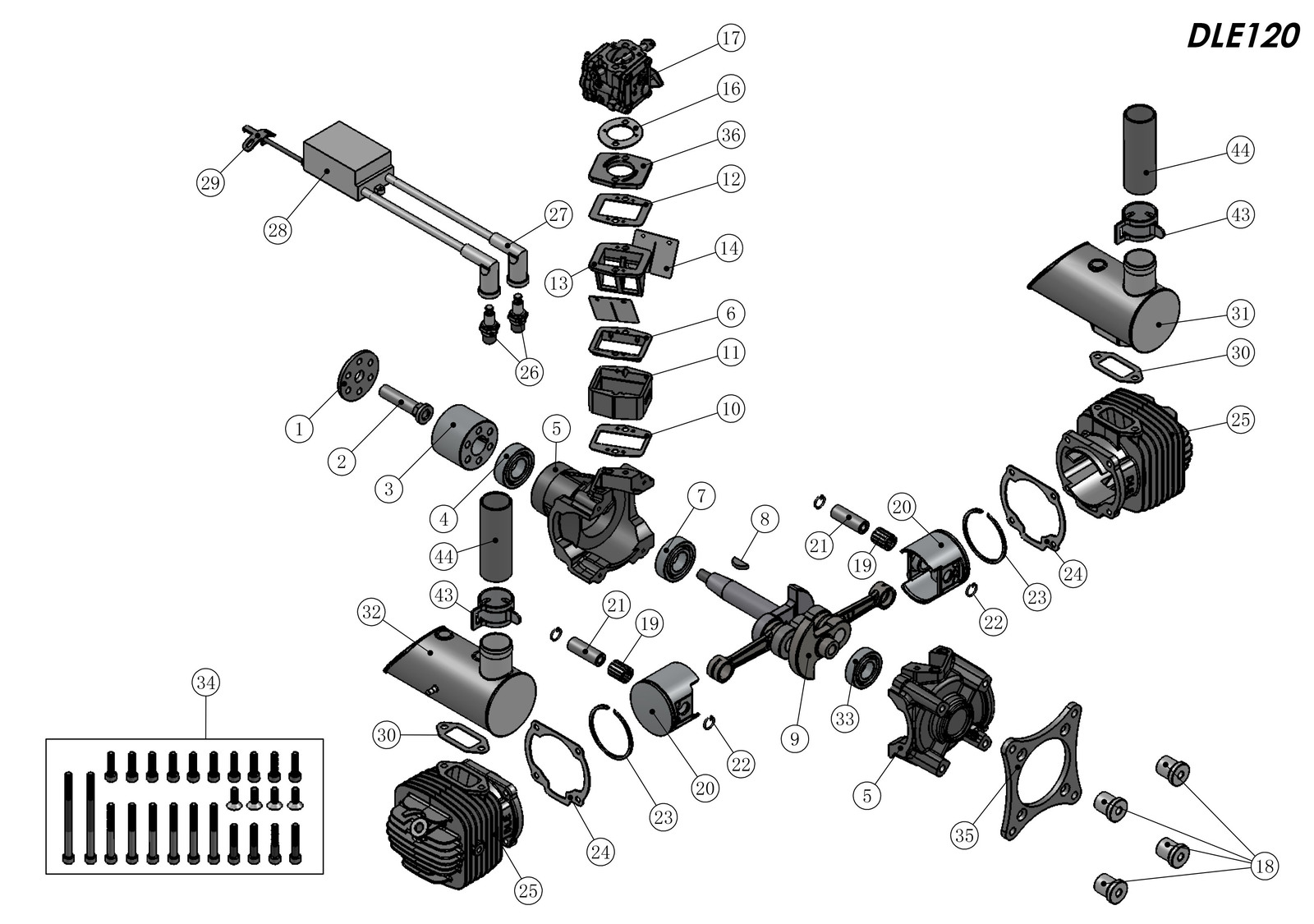

Number 31 as per the exploded view



SKU 120Y31
Brand DLE Engines
Shipping Weight 0.4000kg
Shipping Width 0.080m
Shipping Height 0.060m
Shipping Length 0.080m
Shipping Cubic 0.000384000m3
