Product Details

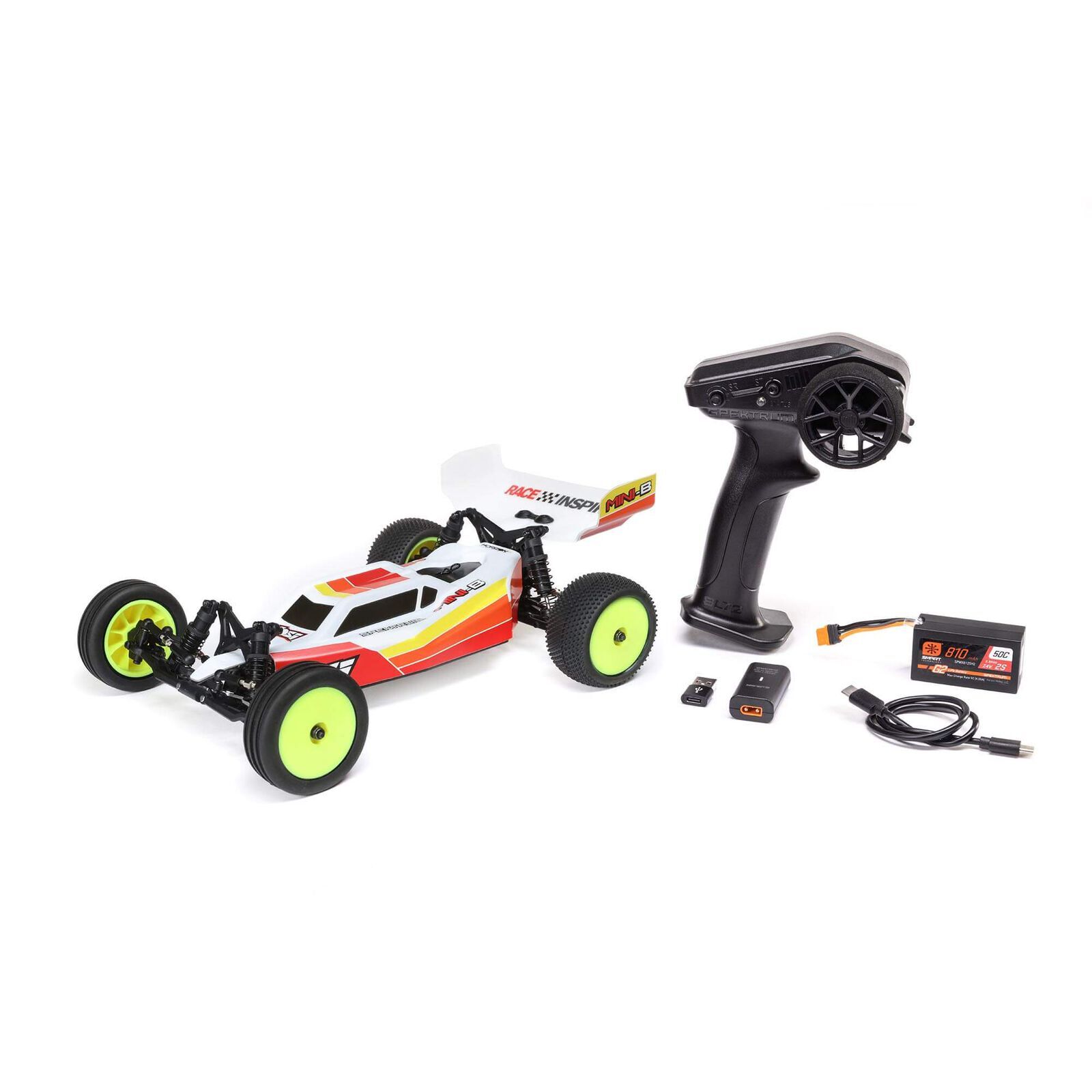

In The Box

• (1) 1/16 Losi Mini-B 2WD Brushless Racing Buggy RTR
• (1) Spektrum SLT2 2.4GHz Transmitter
• (1) Spektrum SR315 2.4GHz Dual Protocol Receiver
• (1) Spektrum SX108 Steering Servo
• (1) Spektrum FIRMA 6000Kv Brushless Motor & ESC 2-in-1 Combo
• (1) Spektrum Smart G2 2S LiPo Battery
• (1) Spektrum Smart G2 2S LiPo USB-C Battery Charger
• (4) AA Transmitter Batteries
• (1) Mini-B 2WD Brushless Product Manual

Needed to Complete

• USB Power Adapter with QC 2.0/3.0 18W+

Losi 1/16 Mini-B 2WD Buggy User Manual

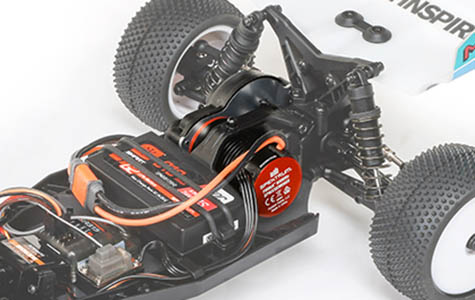

MID-MOTOR CONFIGURATION

The mid-motor configuration of the Losi Mini-B 2WD brushless racing buggy creates a well-balanced chassis on high-traction surfaces, allowing for better performance on multiple racing surfaces and also balancing out steering and traction.

ALUMINUM CHASSIS

The Mini-B has been designed with a 1.5mm thick, 6061-T6 aluminum chassis plate that provides strength and durability along with rigidity that vastly improves racing performance.

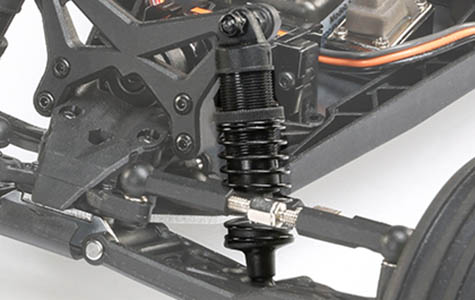

THREADED OIL-FILLED SHOCKS

The injection-molded oil shocks have threaded shock collars that allow for easy preload and ride height adjustments to quickly adjust to the track after your warm up laps. The shock bodies also feature a bottom-loading, rebuildable shock cartridge with dual O-rings that help to keep the oil in the shocks. As an option, the shocks can be tuned using different spring rates and TLR shock oil weights available separately.

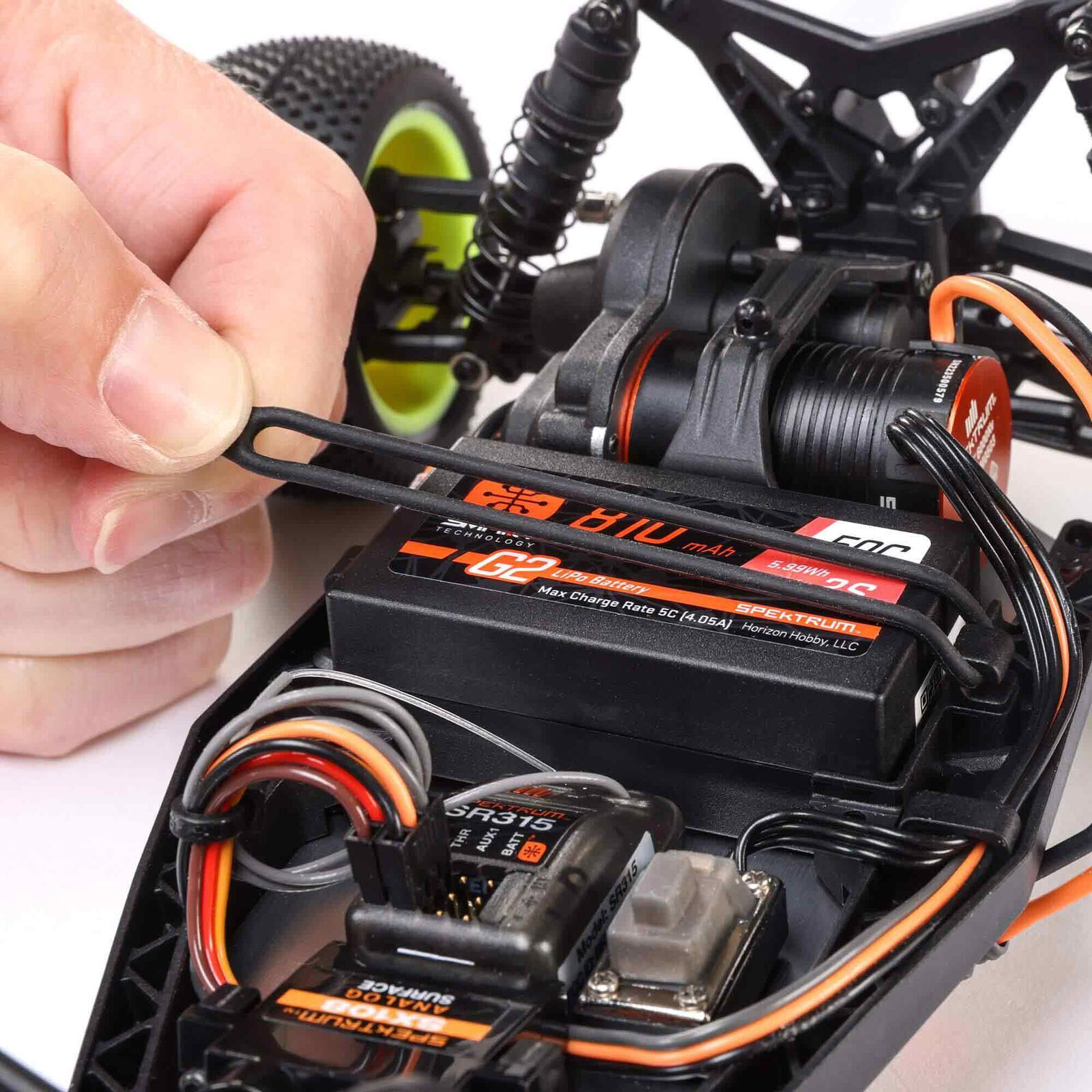

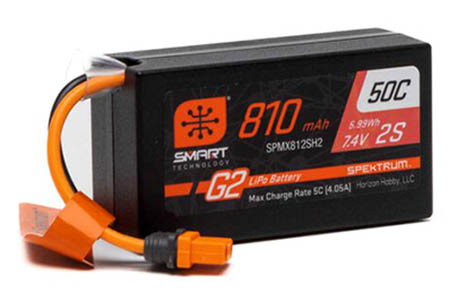

SPEKTRUM SMART G2 2S LIPO BATTERY

The included 7.4V 810mAh 2S Smart G2 50C LiPo battery not only offers high capacity for long run times, but also stores its charging parameters on an integrated microchip. That data uploads to the included Smart charger automatically when the battery is connected. Safe, accurate charging begins immediately.

SPEKTRUM SMART G2 USB-C LIPO BATTERY CHARGER

Using innovative Spektrum Smart technology, the included 2S LiPo battery communicates automatically with the supplied Smart USB charger the moment you plug it in. You don't have to worry about making the correct charge settings — it's done for you. Charging is convenient, safe, and easy!

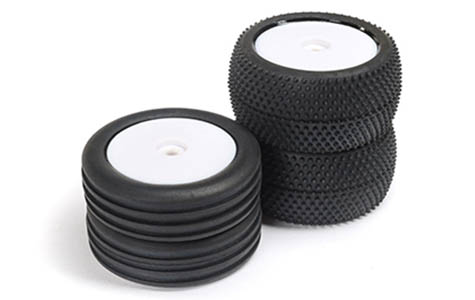

RACE-PROVEN TIRES

The tires included with the Mini-B 2WD brushless racing buggy recreate Losi's popular Big Shot rear tires and Wide Body Rib front tires from the early 2000s.

METAL GEAR TRANSMISSION

The metal gear transmission is engineered to handle the massive power output of the Mini-B's brushless motor system. All of the gears are ball bearing supported for a smooth, efficient transmission.

FULL BALL BEARINGS

The entire vehicle is equipped with ball bearings for maximum smoothness and efficiency — a must-have for racing! (Less steering.)

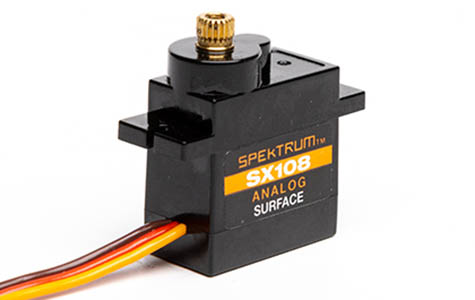

SPEKTRUM SX108 SERVO WITH SERVO SAVER

The Spektrum SX108 steering servo turns the Mini-B tires with over 40 oz-in of torque. Its servo saver gives a consistent feel to the steering while protecting the servo from sudden jolts caused by bumping with other vehicles on the track.

SPEKTRUM SLT2 2.4GHz RADIO

In addition to providing interference-free control, the included Spektrum SLT2 2.4GHz transmitter offers many useful features including steering trim, steering rate, and steering reversing. With its throttle limiting switch, beginners can limit their access to the buggy's full speed potential from 50% to 75% to 100% — perfect for learning RC control skills gradually and safely.

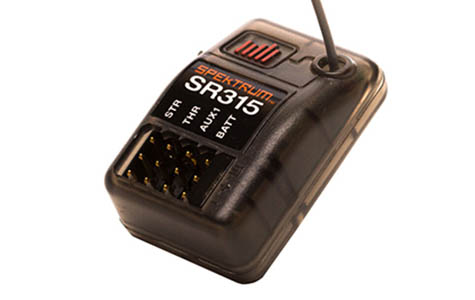

SPEKTRUM SR315 RECEIVER

The Spektrum SR315 3-Channel Dual Protocol receiver delivers superb range and response with a solid 2.4GHz link. It has an extra port for racing transponders and accommodates upgrades to higher-performance Spektrum transmitters without the need for a new receiver.

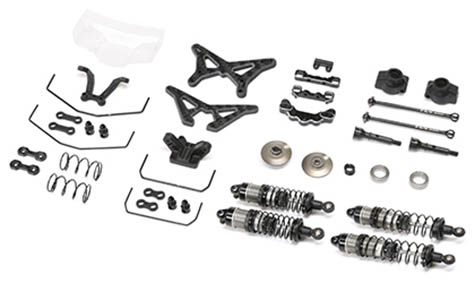

OPTION PARTS

Competing, customizing, upgrading — you can do it all, RC style, with the Losi Mini-B 2WD. A full line of option parts is available for making this racing buggy all your own.

REFINED DESIGN

Small improvements make a big difference at the track! After studying the Mini-B and listening to racers, Losi engineers found many ways to refine its design. The shock cup height has been adjusted to keep the spring secure. A bearing spacer added in the rear hub lets you tighten the rear wheel with confidence. A new ball cup material provides better function and durability. The transmission case accepts sway bars, and the front bulkhead has been thickened to increase strength. The new slipper plate offers a more consistent feel under brushless power, and the servo saver increases consistency while making the steering feel more direct.
