Product Details

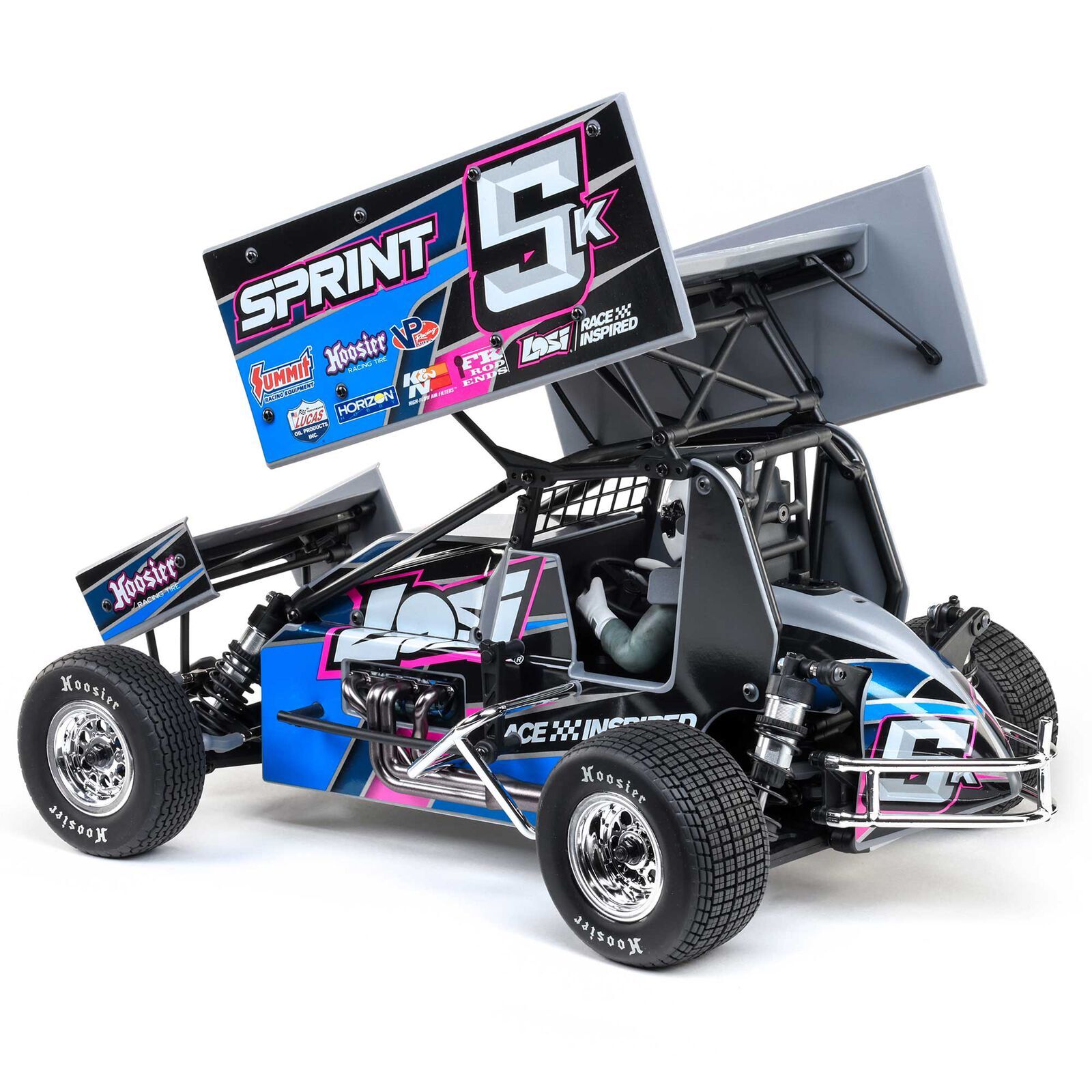

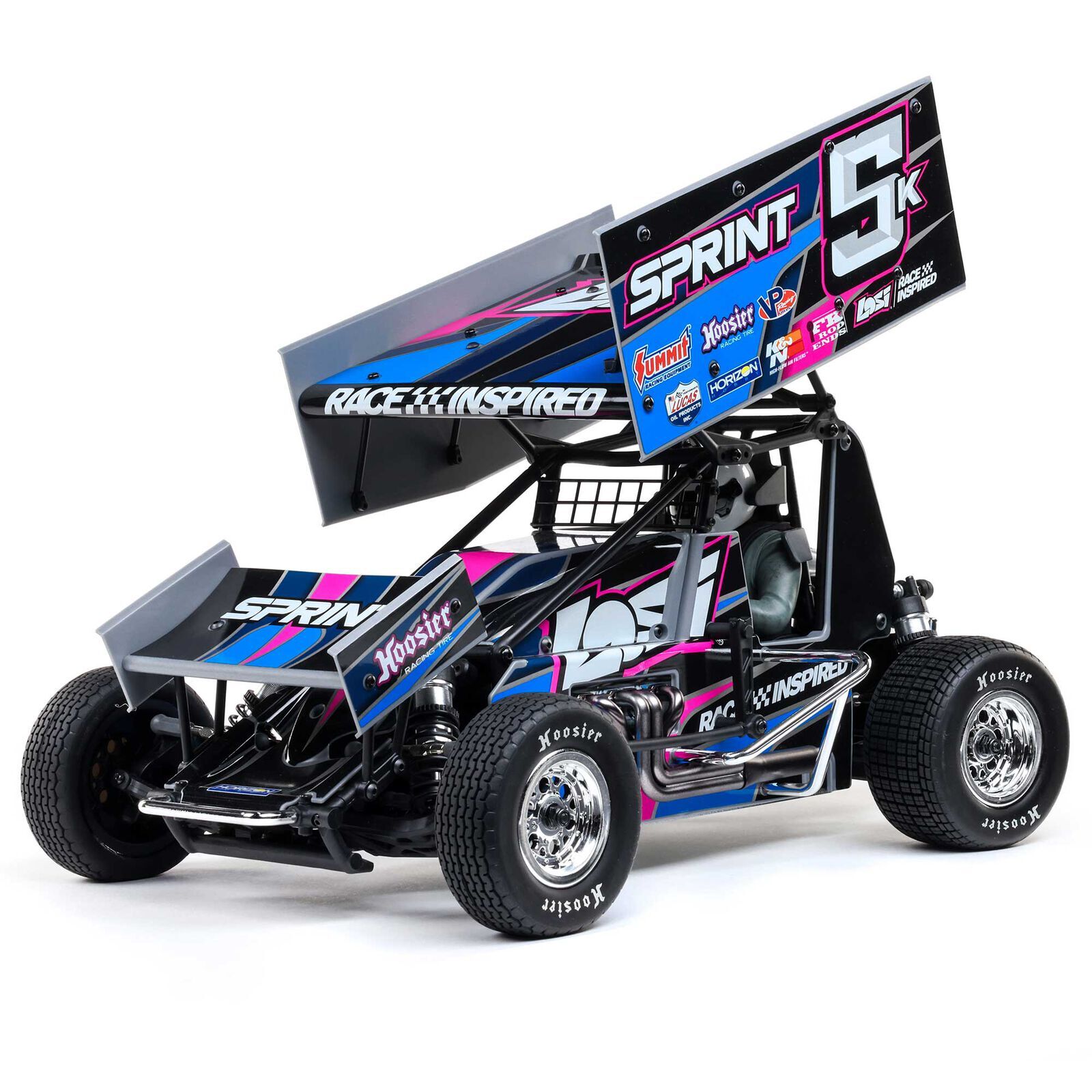

Out of the box, the 22S Sprint looks and performs like a real sprint car - with a proven race geometry design, race-ready brushless power system, and removable top and front wings. Compatible with Losi and TLR option parts, it’s the game-changing way to get in the race!

In The Box1/10 22S Sprint 2WD RTR, Blue

(1) Losi 22S Sprint Car 1/10 Scale 2WD RTR
(1) Spektrum SLT2 2-Channel 2.4GHz Transmitter
(1) Spektrum SR215 DSMR 2-Channel Sport Receiver
(1) Spektrum Firma 45A Brushless Smart Lite ESC
(1) Spektrum Firma 3650 3300Kv Brushless Motor
(1) Spektrum S684 25T Waterproof Metal Gear Servo
(4) AA Transmitter Batteries
(1) Metal 4-Way Nut Driver
(1) Composite Shock Body & Shock Cap Tools
(1) Instruction Manual

Key Features

Race-ready Spektrum 2S brushless power system
Clipless body and cage mounting for easy chassis access
Based on competition-proven TLR 22 geometry
Removable top and front wings
Fully assembled and ready to run - only battery and charger required

Needed to Complete

(1) 2S LiPo battery w/IC5

(1) Compatible charger

User Manual 1/10 22S Sprint 2WD Brushless

Losi 22S Sprint RTR RC Features

  • Race-ready brushless power system
  • Clipless body and cage mounting for easy chassis access
  • Ready to run - includes battery and charger
  • Removable top and front wings
  • 2.5mm 6061-T6 aluminum chassis
  • Threaded aluminum shock bodies
  • Adjustable steel turnbuckles
  • All-metal transmission
  • Adjustable dual slipper clutch
  • Sealed gear differential, pre-filled with diff fluid
  • Battery tray with easy-to-use elastomer straps
  • Adjustable stops for using full-length or shorty batteries
  • Accepts existing Losi and TLR option parts
  • Based on competition-proven TLR 22 geometry
  • Templates for body panels available to download
  • Clipless roll cage/body/top wing mounting
  • Powerful Spektrum brushless power system
  • Spektrum SLT2 2.4GHz transmitter
  • Spektrum SR215 DSMR 2-channel receiver
  • Spektrum S684 25T waterproof metal gear steering servo
  • Officially licensed Hoosier tires
  • Molded and electroplated exhaust
  • Hand-painted driver figure with post anchor device and race seat
  • Steering wheel and scale steering box interior
  • Faux Pitman arm and steering linkage
  • Metal 4-Way Nut Driver
  • Composite Shock Body & Shock Cap Tools
  • (4) AA Transmitter Batteries
  • (2) Decal Sheets with Custom Numbers & Number Boards

Losi 1/10 22S Sprint Video

Losi 22S Sprint RTR RC Overview

With the 1/10 scale, ready-to-run 22S Sprint 2WD, Losi takes the lead among all RC manufacturers in providing the best RC dirt oval racing experience right out of the box.

One of the most popular forms of American full-scale motorsports, dirt oval racing might at first seem somewhat simple. But anyone who’s passionate about racing knows that there’s much more to it than making left turns. To get out of the stands and into the race, you need skill, commitment, and - perhaps most of all - a capable vehicle.

One of the most popular forms of American full-scale motorsports, dirt oval racing might at first seem somewhat simple. But anyone who’s passionate about racing knows that there’s much more to it than making left turns. To get out of the stands and into the race, you need skill, commitment, and - perhaps most of all - a capable vehicle.

The Losi 22S Sprint delivers superior performance and accurate scale looks at a fraction of the cost, with time-saving, ready-to-run ease. Based on championship-winning Team Losi Racing TLR 22 geometry, it’s filled with the features that experienced racers respect.

An aluminum chassis, steel turnbuckles, and all-metal transmission provide the durability to survive intense competition on a crowded dirt oval course. The sealed gear differential is pre-filled with diff fluid for optimal performance. A customizable battery tray increases your battery options, with adjustable stops for using full-length or shorty packs. The installed Spektrum 2S brushless system powers the 22S Sprint around the oval, hitting 25+ mph down the chutes.

Numerous scale details take its realism to the next level - molded and electroplated exhaust, a hand-painted driver figure with a post anchor device and race seat, steering wheel and scale steering box interior, and much more. It comes out of the box as a winged sprint car, but the front and rear wings can easily be removed to race in another class. The officially licensed Hoosier tires feature a soft compound that’s ideal for most tracks. If you race often on high-traction, high-wear surfaces, a hard compound version is available separately.

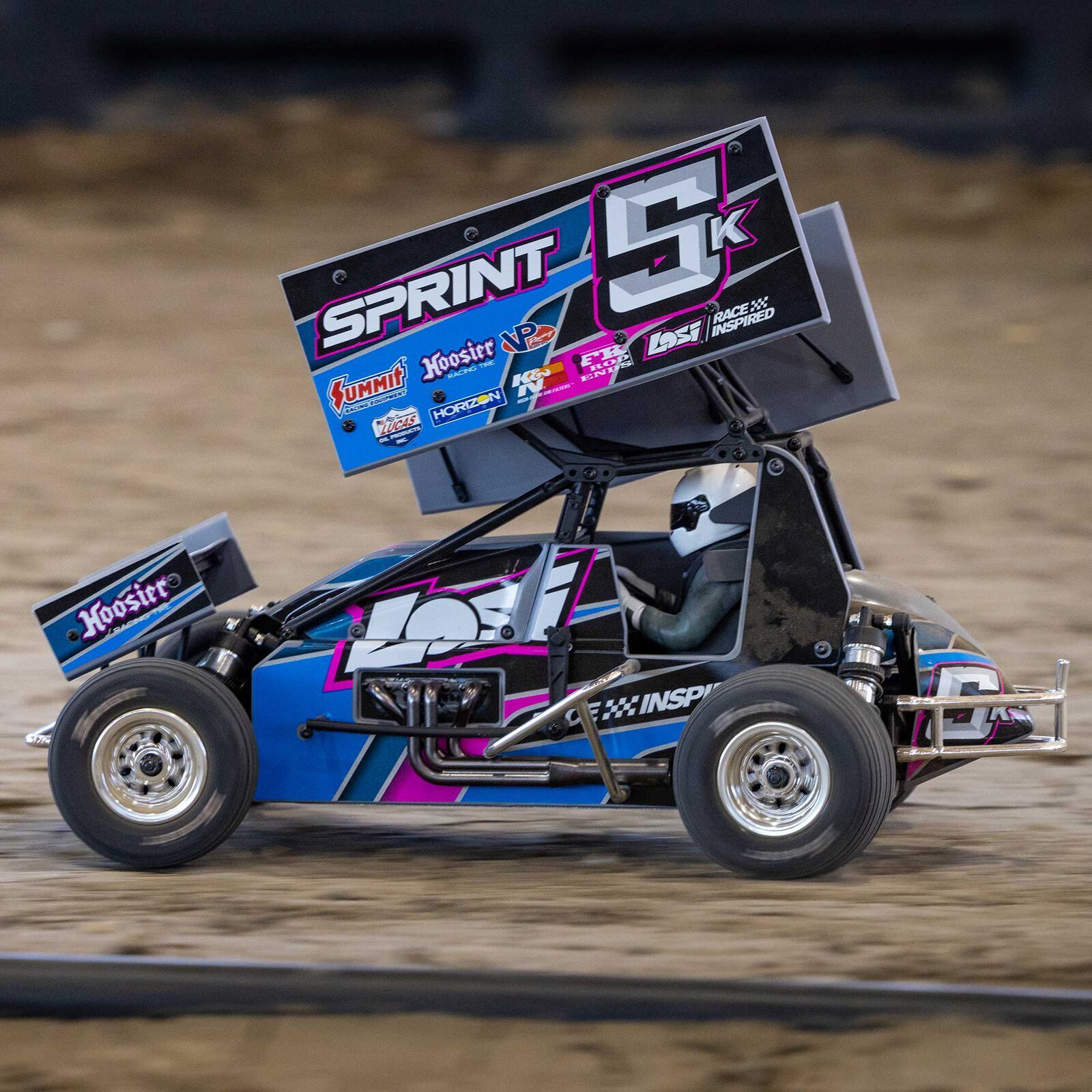

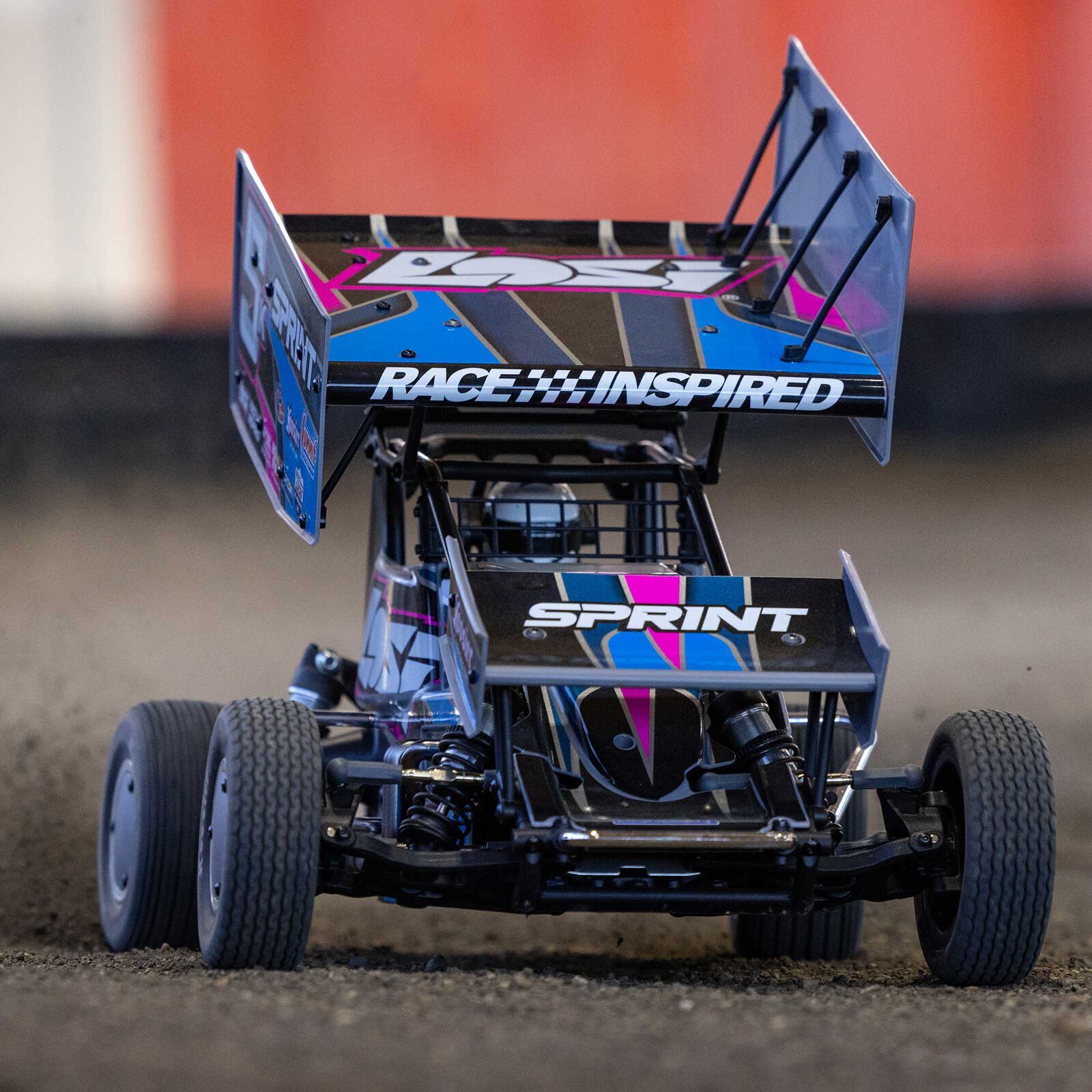

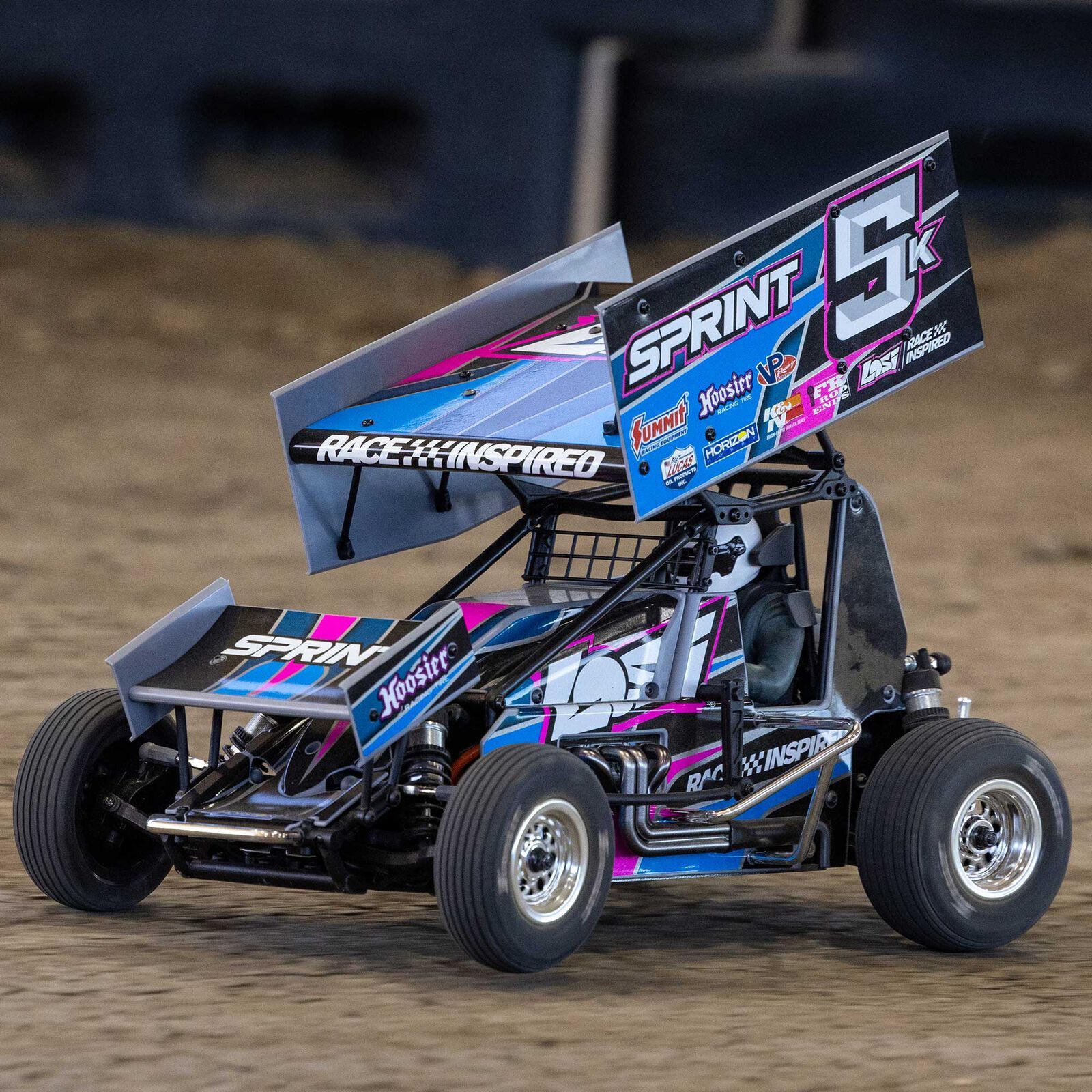

The Losi 22S Sprint really shines on a true RC dirt oval track with proper clay dirt, banks, and corners. But even on a simple oval made with cones in a driveway or dirt lot, it’s a blast to drive.

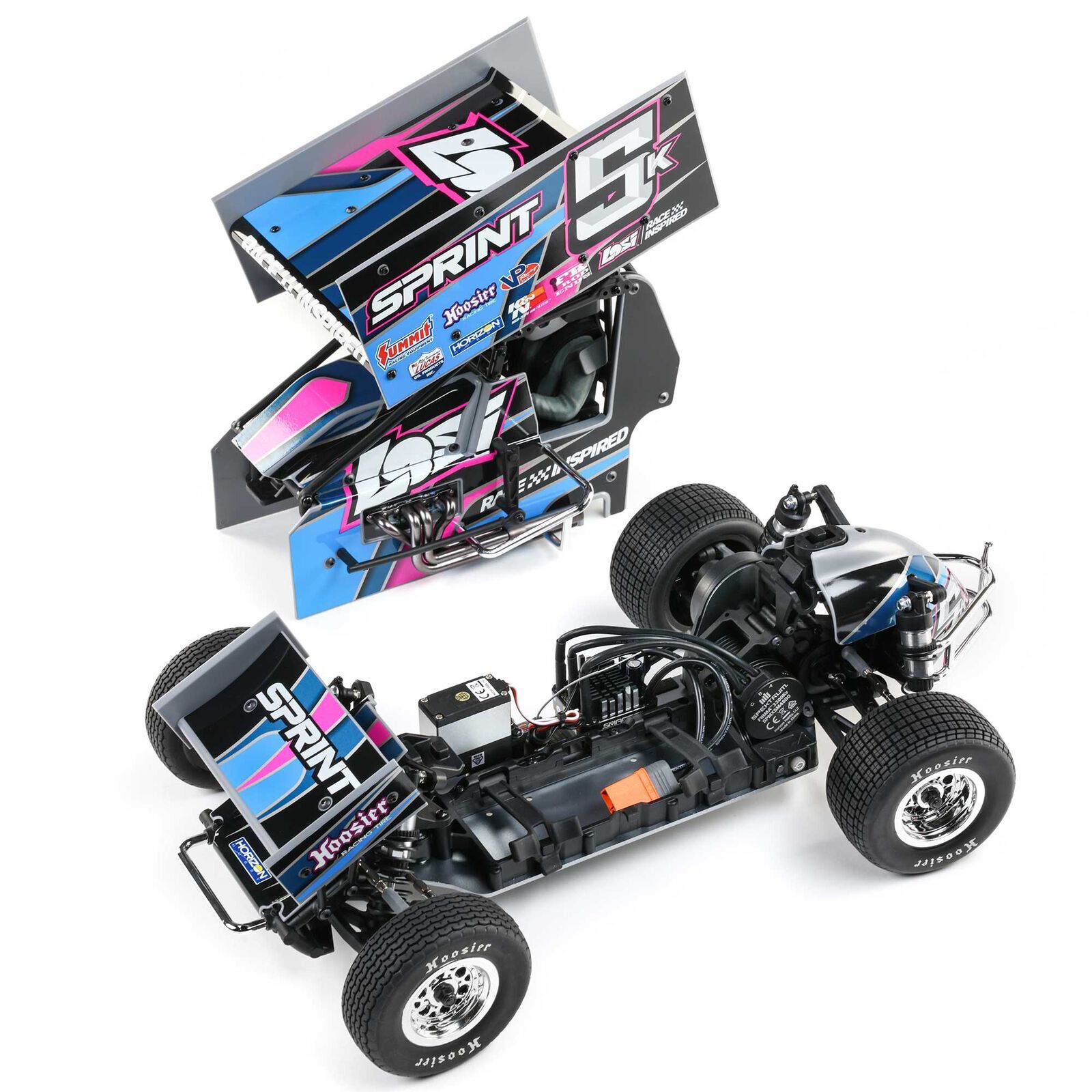

RC vehicles with scale roll cages can be challenging to work on. Sometimes the cage must be disassembled before accessing the chassis for maintenance, repairs, and upgrades. On the Losi 22S Sprint, you just disengage one spring-loaded clip to lift and remove the cage, body, and top wing assembly from the chassis. It’s so easy, it’s almost unbelievable.

RC vehicles with scale roll cages can be challenging to work on. Sometimes the cage must be disassembled before accessing the chassis for maintenance, repairs, and upgrades. On the Losi 22S Sprint, you just disengage one spring-loaded clip to lift and remove the cage, body, and top wing assembly from the chassis. It’s so easy, it’s almost unbelievable.

Losi 22S Sprint  Details

WINGED OR NON-WINGED

WINGED OR NON-WINGED

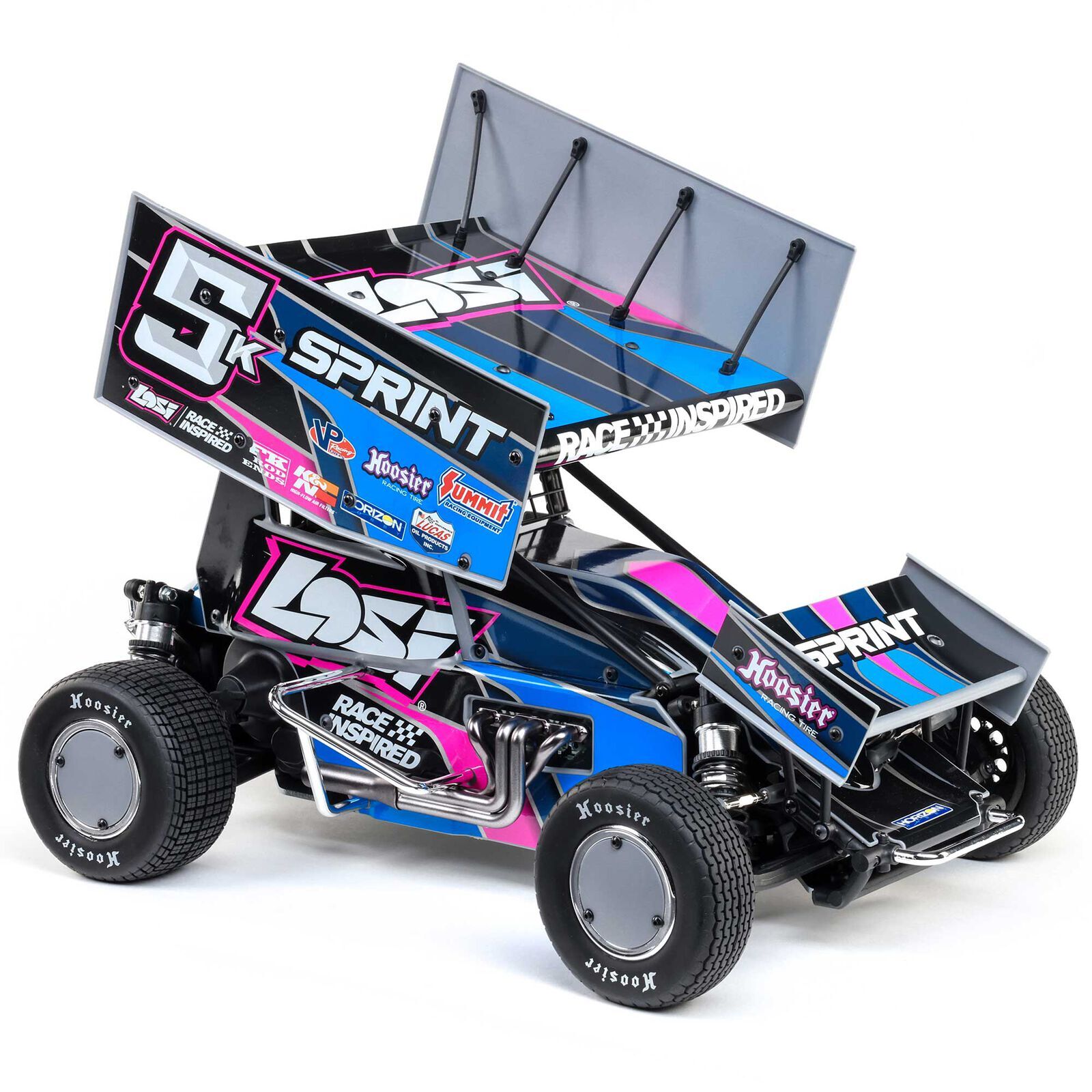

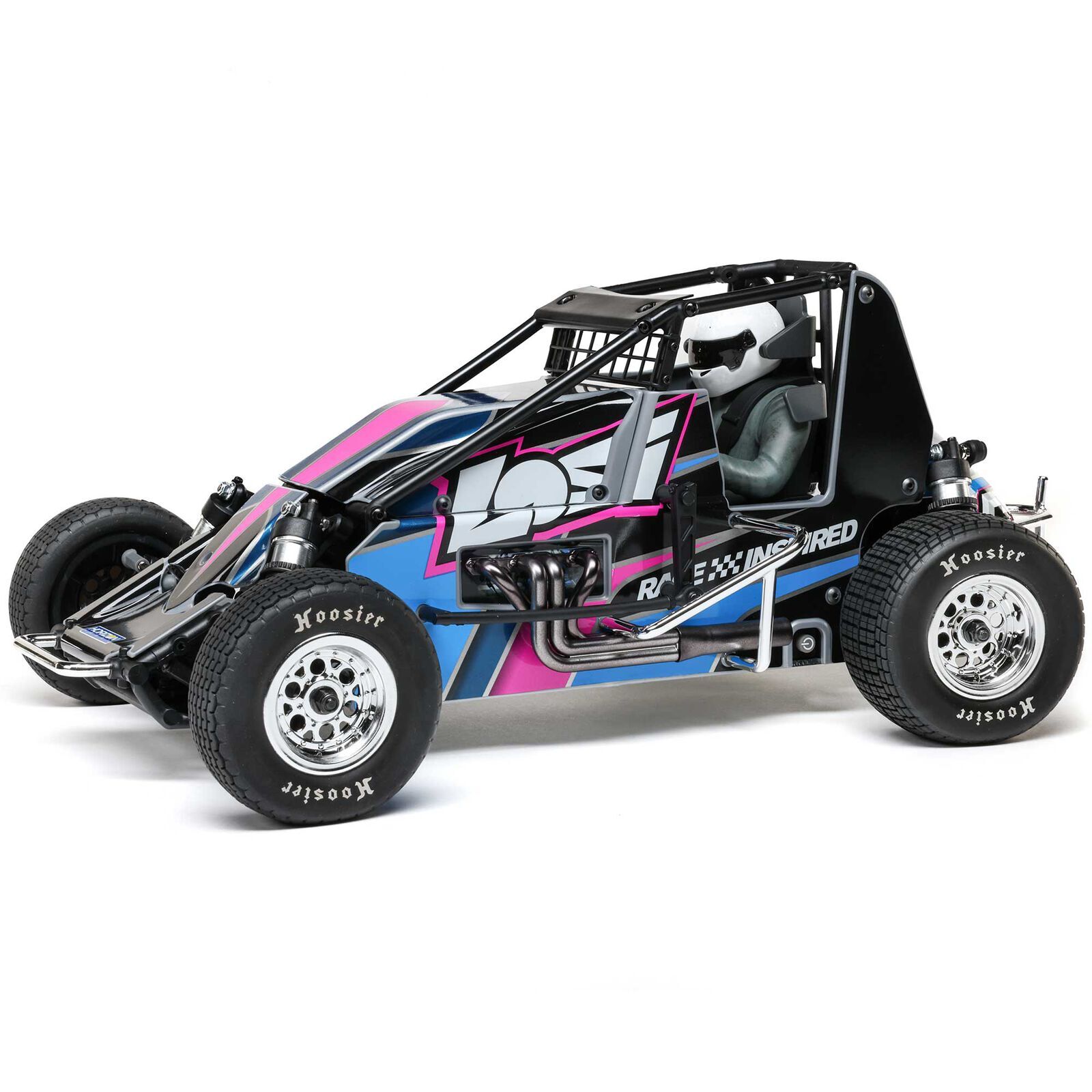

On Saturday nights at dirt oval tracks around the United States, spectators find a healthy blend of winged and non-winged sprint cars in action. The Losi 22S Sprint brings that same mix to RC dirt oval tracks. It comes out of the box as a Winged Sprint. To race in another class, simply remove the top and front wings and install the included, non-winged Sprint name plate.

DURABLE CONSTRUCTION

DURABLE CONSTRUCTION

Race-proven features, including an aluminum chassis, aluminum-bodied shocks, and adjustable steel turnbuckles, combine to give the Losi 22S Sprint the durability to withstand intense competition.

ALL-METAL TRANSMISSION

ALL-METAL TRANSMISSION

The Losi 22S Sprint’s all-metal transmission features an adjustable dual slipper clutch and sealed gear differential, pre-filled with diff fluid for optimal performance.

CUSTOMIZABLE BATTERY TRAY

CUSTOMIZABLE BATTERY TRAY

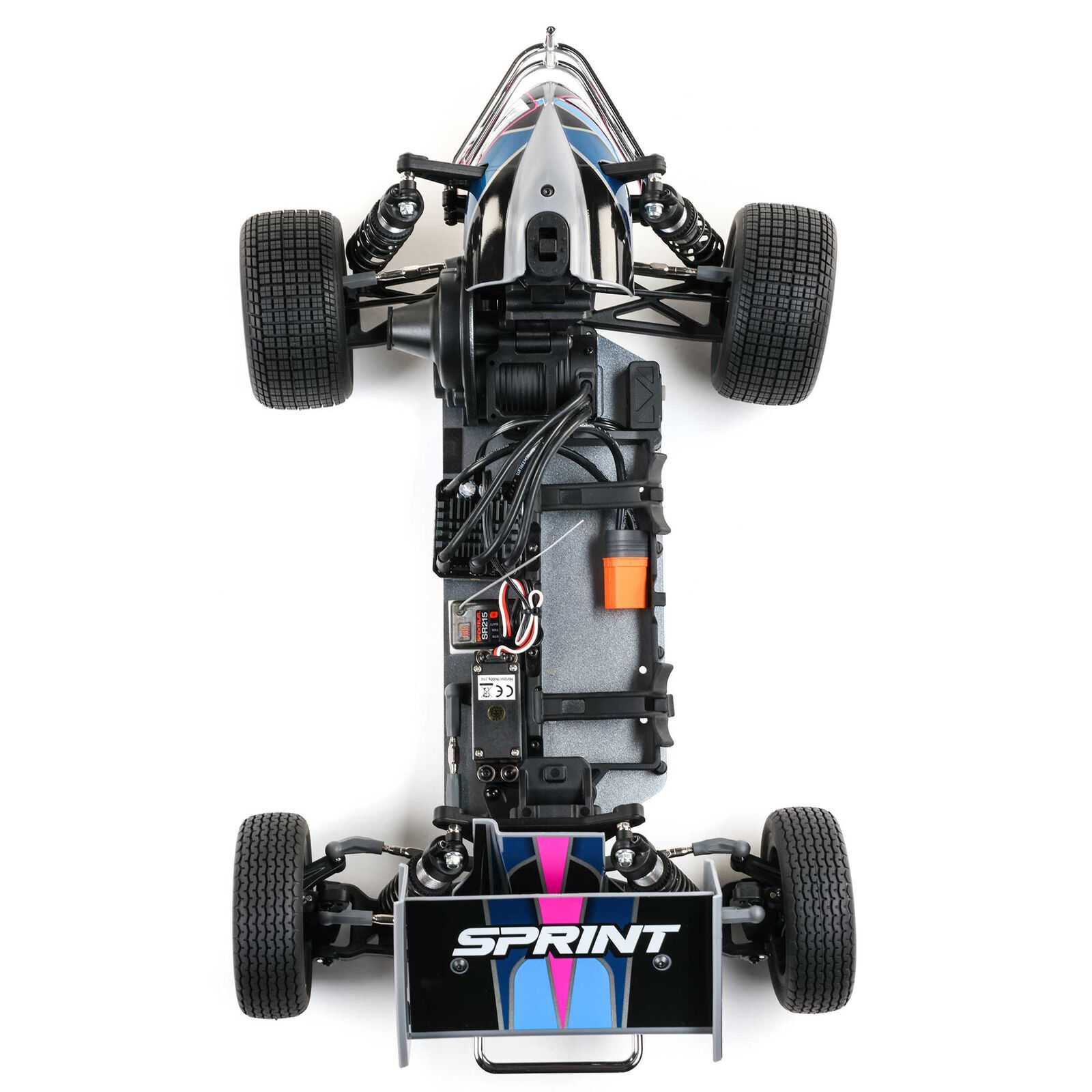

The 22S Sprint expands your battery options by including a customizable battery tray with adjustable stops for using full-length or shorty batteries. Easy-to-use elastomer straps hold your battery securely in place.

UPDATED BRAKE CALIPERS & PISTON

LOSI OPTION PARTS AVAILABLE

Many Losi option parts are available for drivers to keep their 22S Sprint 2WD in peak form or get a leg up on the competition. They include:

TLR-TUNED OPTION PARTS AVAILABLE

TLR-TUNED OPTION PARTS AVAILABLE

The Losi 22S Sprint geometry is based on the TLR 22 platform that has long dominated in 1/10 scale electric racing. Many TLR-Tuned option parts are already available for taking the 22S Sprint’s performance to the next level. They include:

LOADED WITH SCALE DETAILS
LOADED WITH SCALE DETAILS

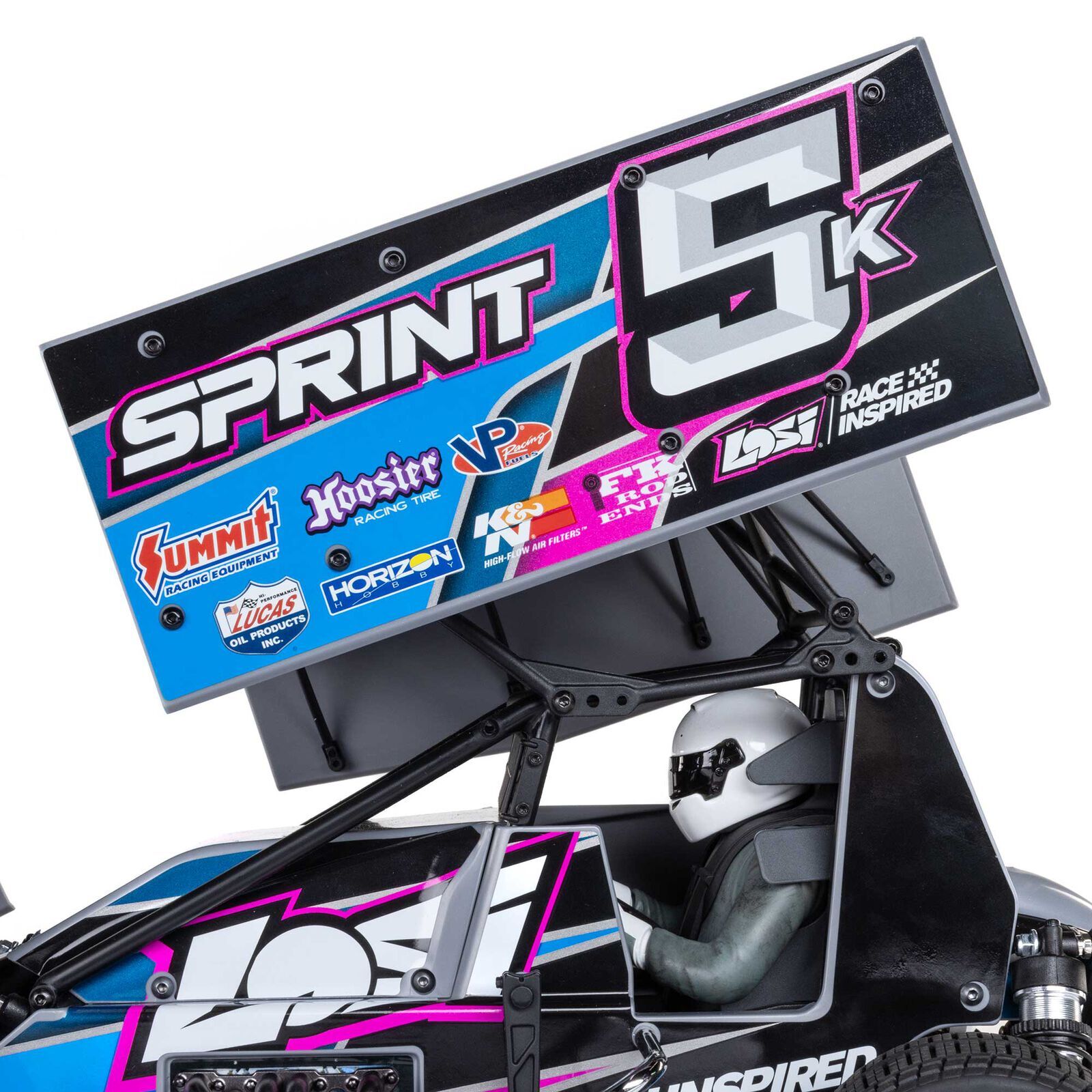

The scale wing supports are just one of many details that add to the 22S Sprint’s realistic looks. Others include molded and electroplated exhaust, a hand-painted driver figure with post anchor device and race seat, steering wheel and scale steering box interior, faux Pitman arm and steering linkage, rock guard, and wheel disk.

SERVO SAVER
DESIGN YOUR OWN LIVERIES

Design your own liveries to customize the look of your Losi 22S Sprint. The body panel templates are available as a free download. With these, you can create new liveries of your own.

EASY ACCESS ON/OFF BUTTON
EASY ACCESS ON/OFF BUTTON

At races, drivers often have to wait on deck or in the staging lane before the track opens for practice runs. Then it’s a dash to turn on the vehicle, put the body on, and get up to the driver stand. The 22S Sprint can be turned on and off easily from outside the vehicle, making the process much simpler, faster, and more convenient.

POWERFUL BRUSHLESS POWER SYSTEM
POWERFUL BRUSHLESS POWER SYSTEM

The 22S Sprint comes with a Spektrum 2S brushless system installed. It features the Firma 45A Smart Lite ESC and Firma 3650 3300Kv brushless motor - a combination that delivers the power to reach maximum speeds of 25+ mph.

REALISTIC RIDER FIGURE
SPEKTRUM SLT2 TRANSMITTER

In addition to providing interference-free control, the included Spektrum SLT2 2.4GHz transmitter offers steering trim, steering rate, steering reversing, and other useful features. Novice drivers can use the throttle limiting switch to limit top speed to 50% or 75% of the vehicle’s full potential - perfect for learning control skills gradually and safely.

SPEKTRUM S684 SERVO
SPEKTRUM S684 SERVO

The 22S Sprint includes a Spektrum S684 high-speed metal gear servo with a 25T solid servo horn for durable, powerful steering muscle. Its waterproof design lets you race with confidence in any conditions.

 SR215 DSMR 2-CHANNEL
SPEKTRUM SR215 DSMR 2-CHANNEL SPORT RECEIVER

The factory-installed, telemetry-equipped Spektrum SR215 is a dual protocol DSMR receiver that can also connect to advanced racing radios like the DX5 and iXSR. Its lightning fast 5.5ms frame rate provides a quick, low-latency connection for the pro-level enthusiast. The streamlined case offers added antenna support and an integrated antenna tube slot for easy installation. The battery port can also be used for a lap counting transponder.

OFFICIALLY LICENSED HOOSIER TIRES
OFFICIALLY LICENSED HOOSIER TIRES

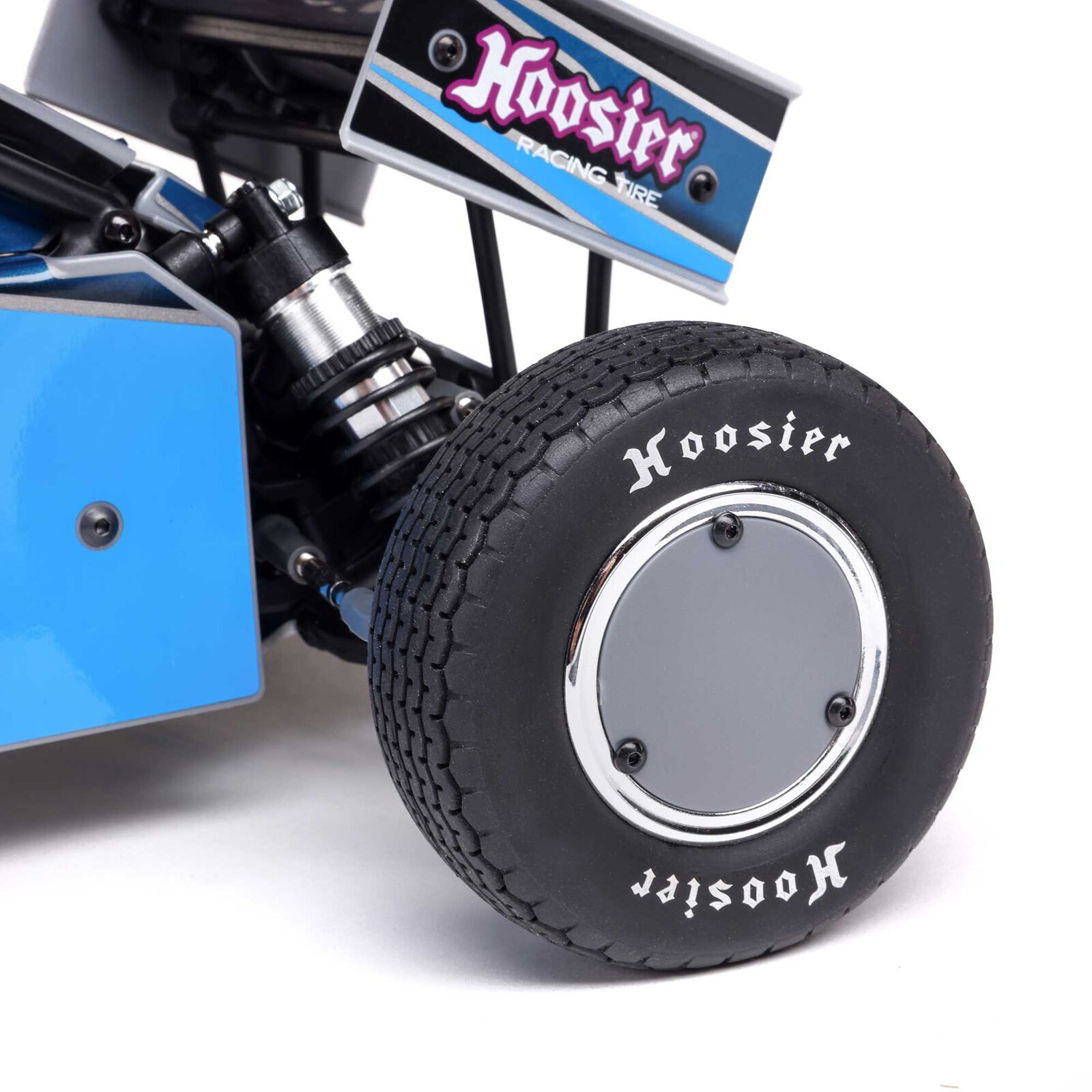

The officially licensed, 2.2” based Hoosier tires feature a soft compound that’s ideal for most tracks. They’re mounted to all-new, scale-correct 1.7/2.2” wheels with a chrome finish and color-matched wheel covers on the right side. Together, the 22S Sprint wheels and Hoosier tires heighten the dirt oval realism. A hard compound version of the tire is available separately for racing on high traction, high wear surfaces.

CLIPLESS ROLL CAGE/BODY/TOP WING MOUNTING
CLIPLESS ROLL CAGE/BODY/TOP WING MOUNTING

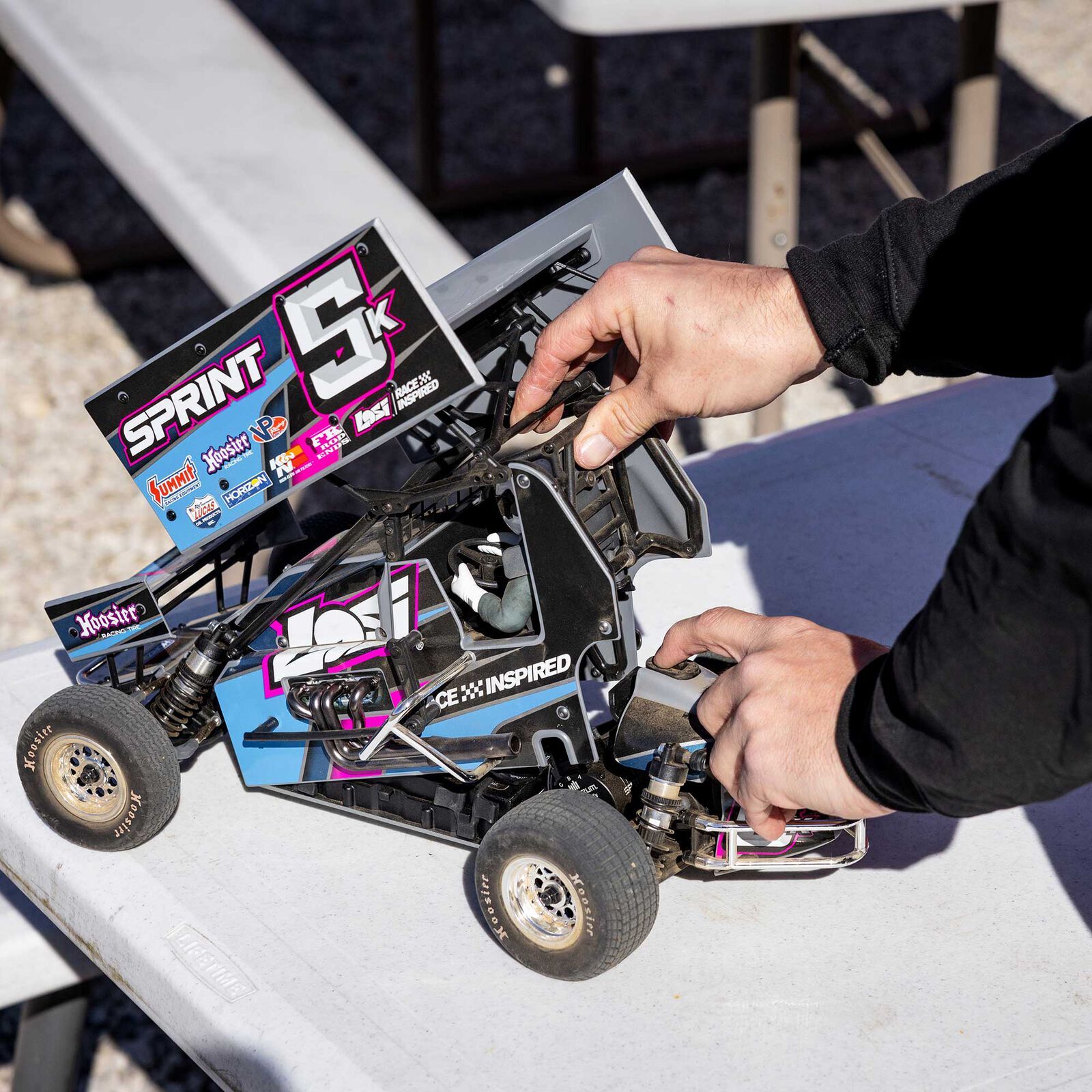

RC vehicles with scale roll cages have a reputation for being hard to work on - sometimes the cage must be taken apart to access the chassis for repairs, maintenance, or upgrades. On the Losi 22S Sprint, you simply disengage one spring-loaded clip to remove the entire cage/body/top wing assembly. It makes chassis access fast and easy!

Product Specifications

Approximate Assembly Time Less than 1 Hour
Battery Sold Separately
Charger Sold Separately
Chassis Aluminum
Completion Level Ready-To-Run
Connector Type IC5
Differential Diff Oil: 3,000wt
Drivetrain 2WD
Final Drive Ratio 10.21:1
Internal Gear Ratio 2.43:1
LiPo Compatibility 2S
Max Battery Dimensions H 1.18 in (30mm) x L 5.51 in (140mm) x W 1.85 in (47mm)
Motor Type Brushless
Power Type Electric
Product Height 12" (305 mm)
Product Length 17" (432 mm)
Product Weight Without Battery: 4.95 lb (2.25kg) / With Recommended Battery: 4.95 lb (2.25kg)
Product Width 9.8" (249 mm)
Scale 1/10
Shock Type Shock Oil: Front: 30wt, Rear: 35wt
Spur Gear Included: 84
Top Speed 25+
Vehicle Type Sprint Car
Wheel Hex Size 12mm
Wheelbase 10.25" (260 mm)
SKU LOS-1387T1
Brand Losi
Shipping Weight 4.0000kg
Shipping Width 0.410m
Shipping Height 0.370m
Shipping Length 0.540m
Shipping Cubic 0.081918000m3
