DATA SHEET

Sizes: 35 x 24 x 6mm
Weight (gr): 15 gr
Connection: JR / Graupner / Futaba

MORE INFO

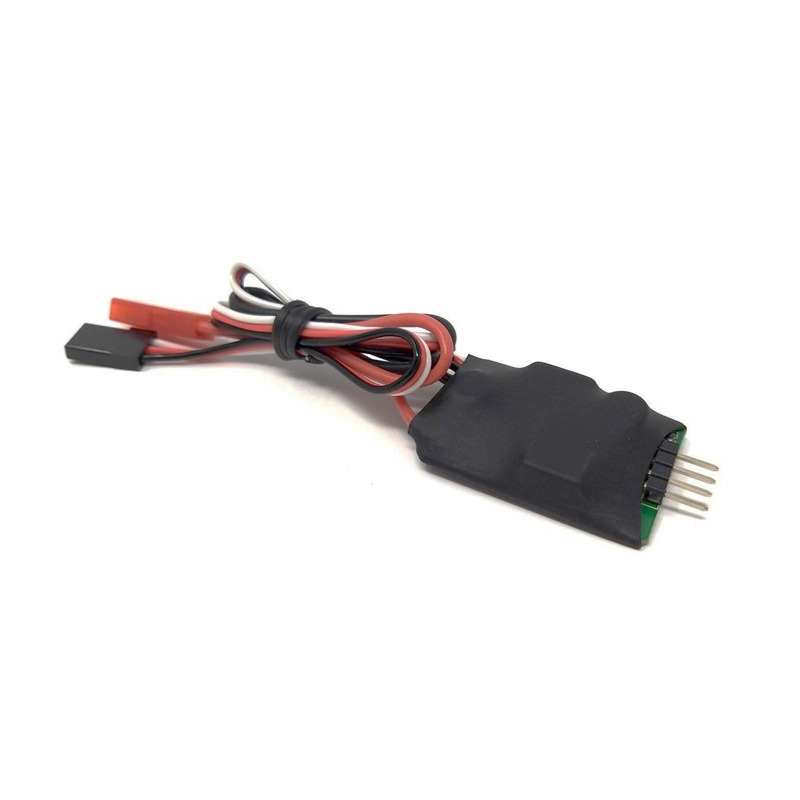

JP Hobby Electrical Magnetic Brake Controller V2

Description

Electrical Magnetic Brake Controller - For RJP Hobby magnetic brake systems. This is the same controller that is included with JP Hobby Electric Wheel and Brake Sets.

JP E-Brake Using illustration

  • Voltage input : 2S-6S Can tap directly on aircraft batteries Or use an external battery 2S-6S
  • Voltage output: 6-10V
  • Signal input : Connect the module on your receiver on a 2 or 3 position switch channel or for variable braking force, to a slider or rotary (variable) knob on your TX. Some will set up brakes as a mix, with the "down elevator" to save a channel.
  • The braking force is controlled by the servo travel/endpoints you set in your TX.

Specifications

  •  Input：7.4v~26v (2~6S lipo)
  •  Output Voltage: 6~10V
  •  Size: 35 x 24 x 6mm
  •  Weight: 15g
SKU JP-BC-1
Brand JP Hobby
Shipping Weight 0.3000kg
Shipping Width 0.080m
Shipping Height 0.060m
Shipping Length 0.080m
Shipping Cubic 0.000384000m3
