HobbyWing Platinum Pro 150A V5 ESC 3-8S HW30203500
SKU code: HW30203500
Make 4 interest-free payments of $72.25 fortnightly and receive your order now.
The Hobbywing Platinum Pro V5 150 Amp ESC is the next level ESC for high performance, advanced programming, and overall capabilities. Using a 32-bit processor combined with advanced algorithms, Hobbywing has maximized performance in the V5 series of Platinum Pro speed controllers. Like all Hobbywing ESCs, users can program various settings to ensure they have the needed features to match their aircraft set up needs.

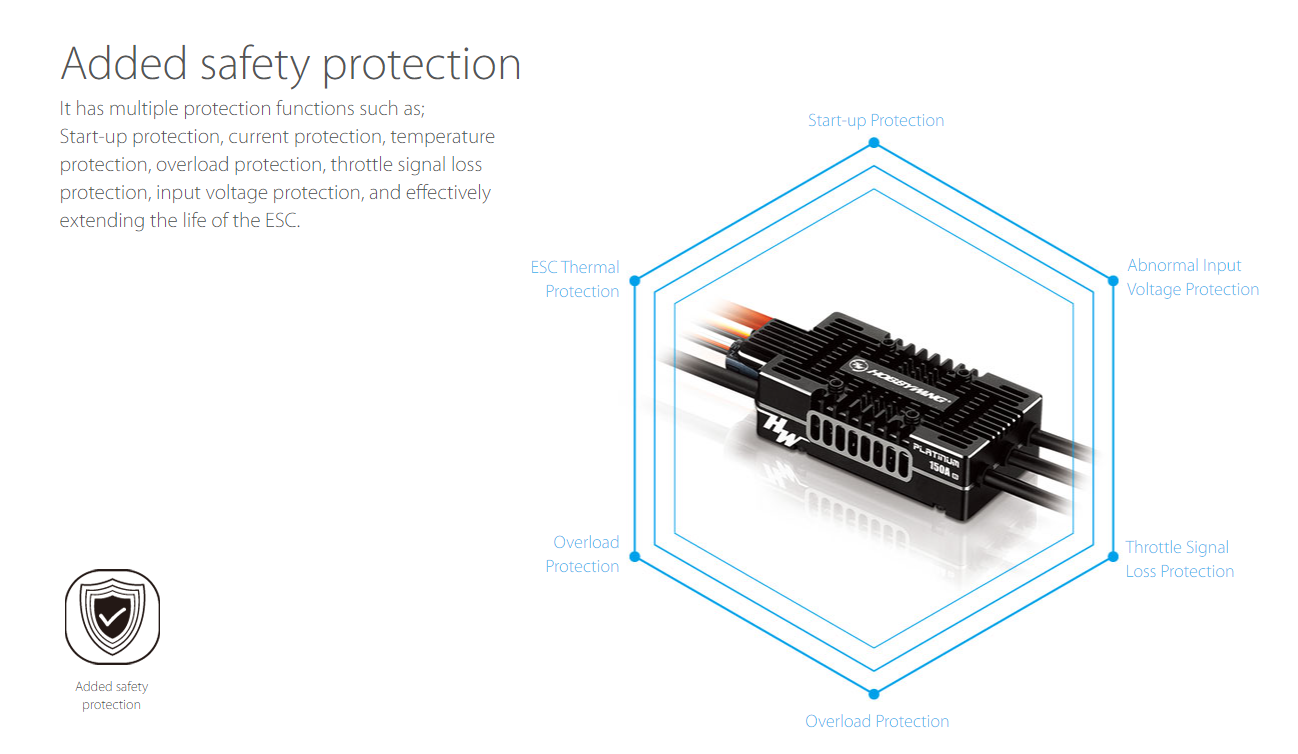

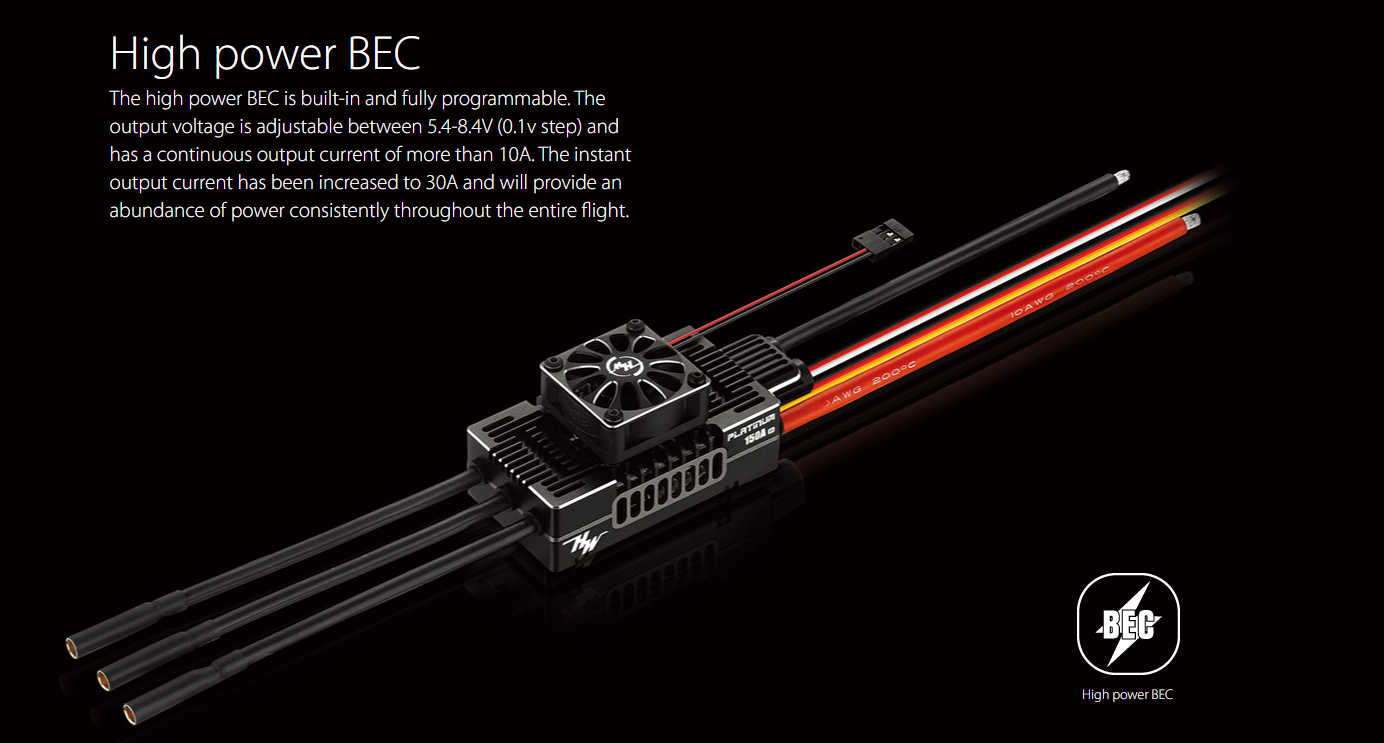

The Platinum Pro V5 ESC features a built-in and fully programmable BEC. The output voltage is adjustable between 5.4-8.4V in 0.1V steps. To keep up with your demanding electronics, the BEC also has a continuous output current of 10A. For protection, Hobbywing V5 ESC's feature a start-up protection, current protection, temperature protection, overload protection, throttle signal loss and input voltage protection. These safeties help to give you the needed peace of mind.
Features:
- Multi-stage protection functionality
- 20% stronger BEC compared to V4 series

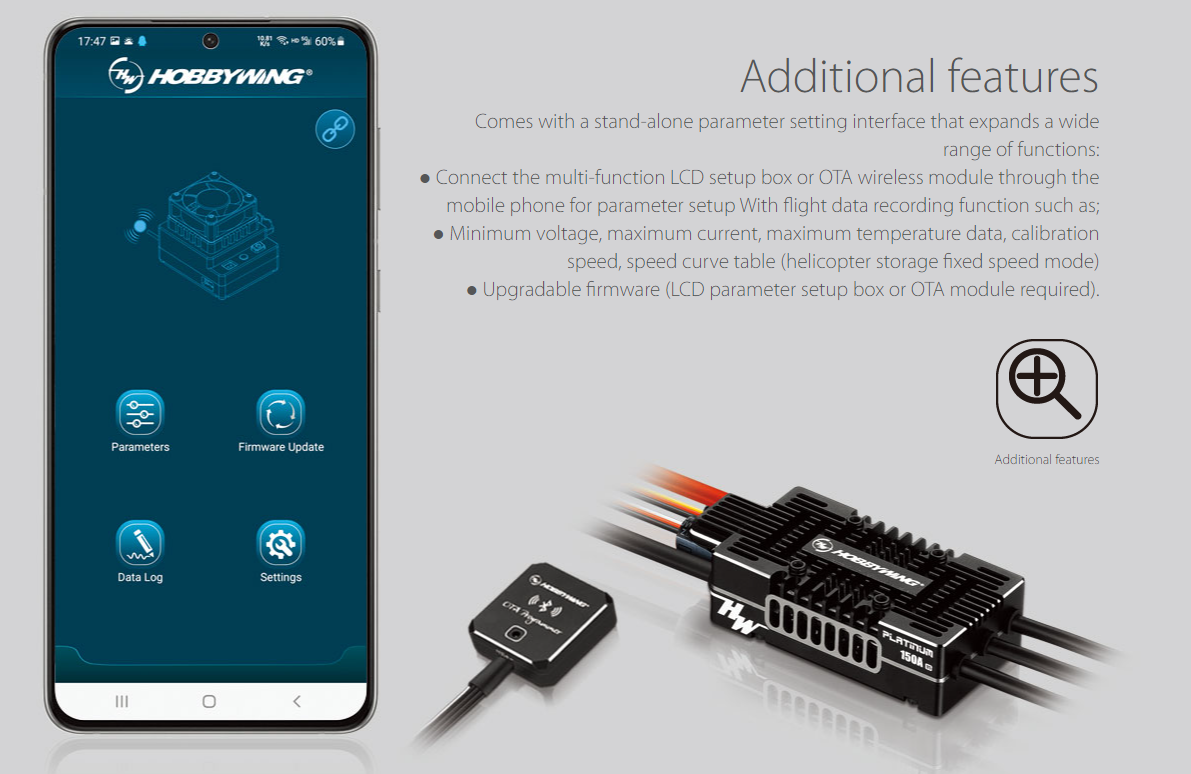

- Programmable through the OTA programmer or LCD program box (both sold separately)
- Fast 32 bit processor for efficient algorithm processing
- Reduced size & improved current handling compared to V4 series
- VBar Control firmware integrated - allowing for VBar telemetry capabilities

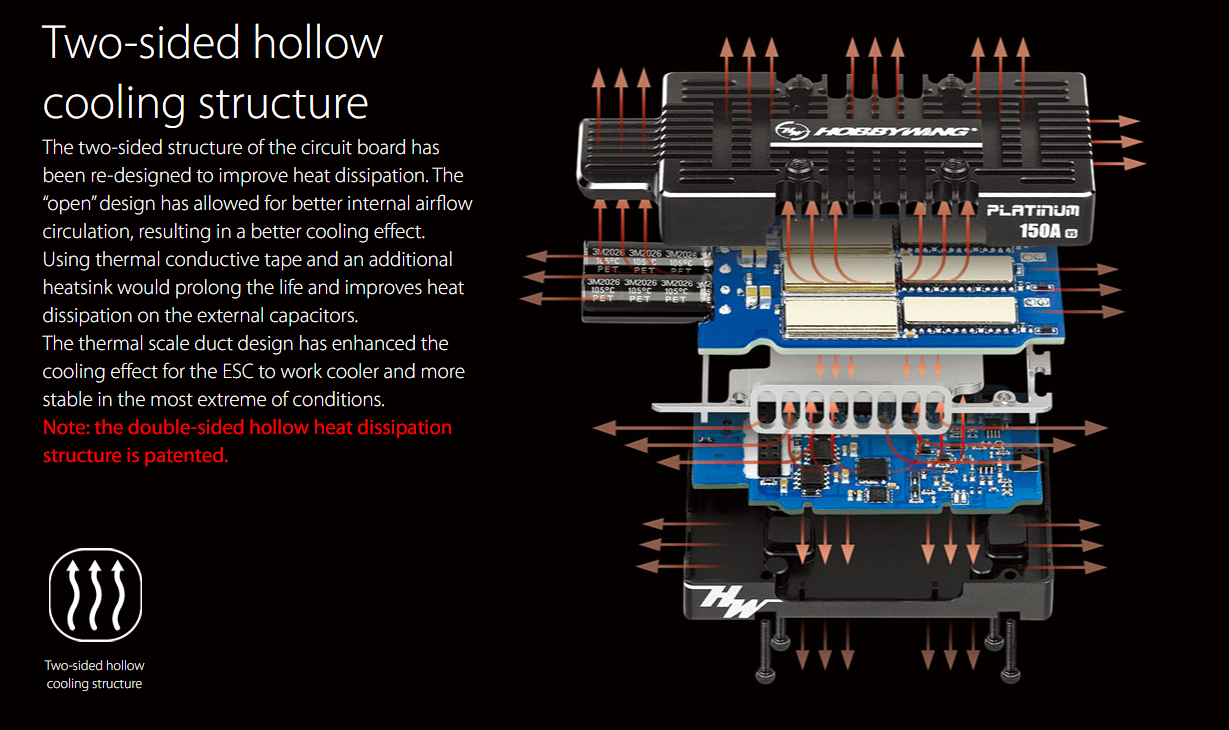

- Double-sided cooling Structure
- Multiple brake modes for fixed wing operation

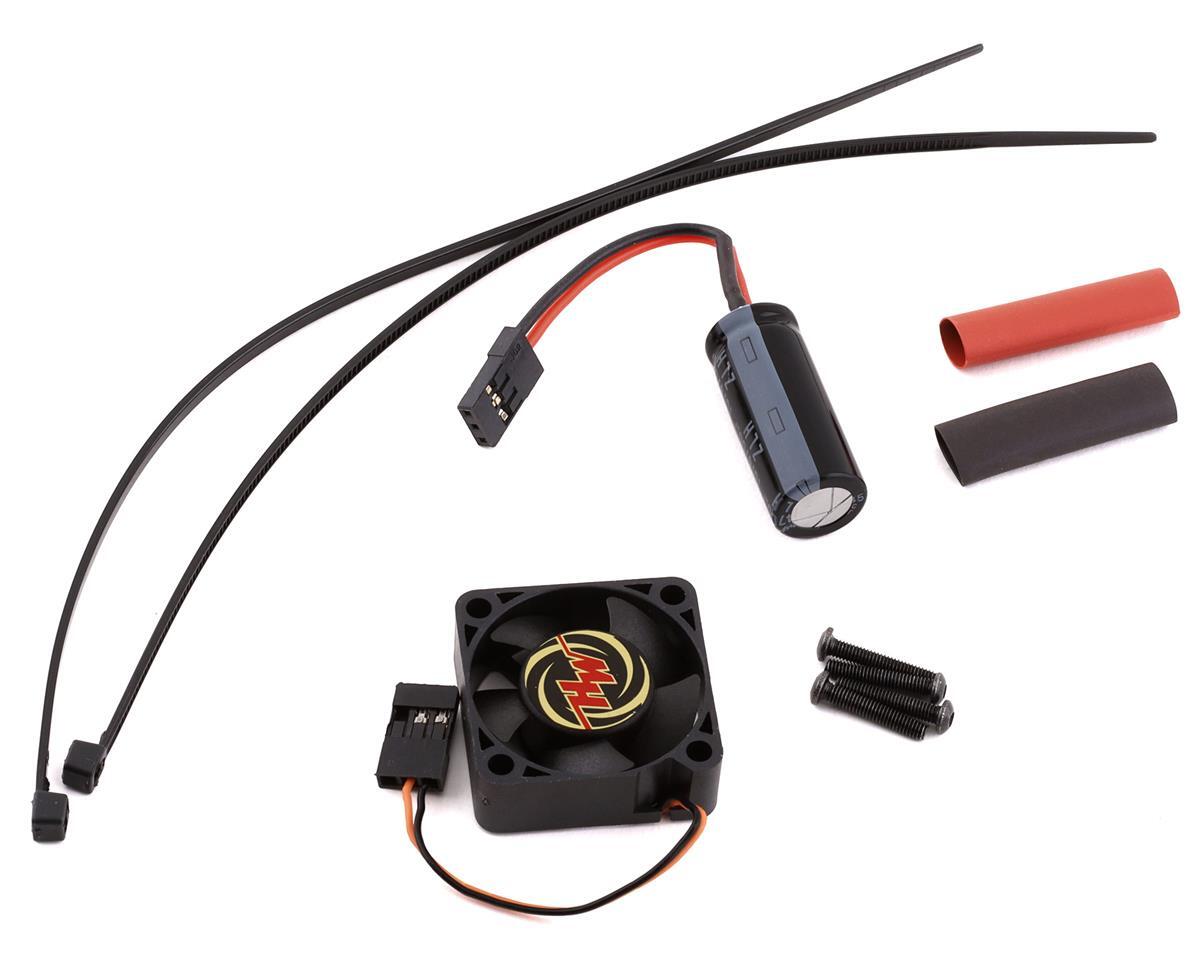

Includes:

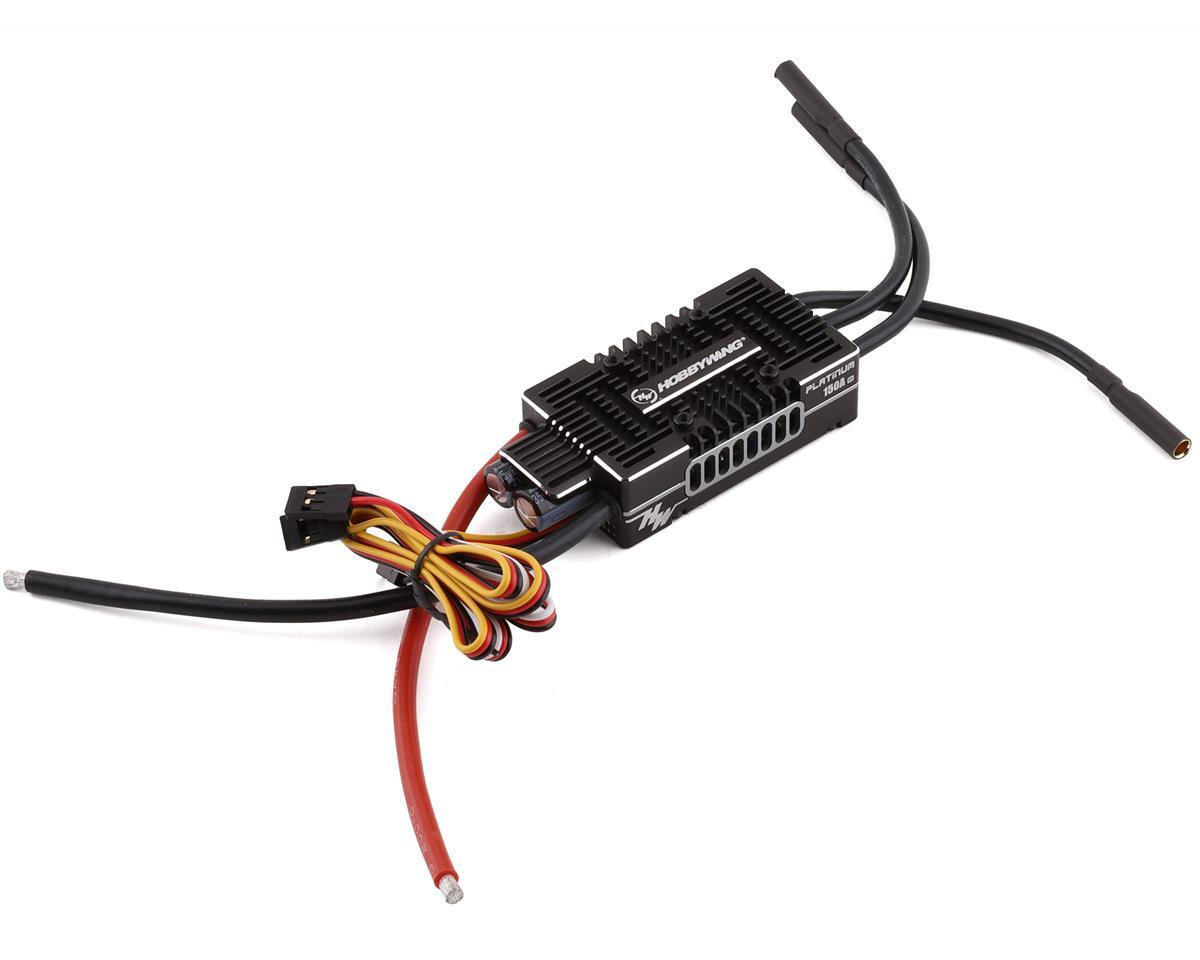

(1) Hobbywing Platinum Pro V5 150 ESC
(1) ESC Fan with mounting hardware
(1) Capacitor
(2) Pieces of Heat Shrink
(2) Zip Ties
Specifications
Application | 500-580 Class Helicopter/Airplane | |
Input Voltage | 3-8S Lipo | |
Cont./Peak Current (10s) | 150A/180A | |
(Switch-mode) BEC | 5.4V-8.4V Adjustable (Step: 0.1V), 10A/30A Cont./Peak | |
Separate Programming Port | For connecting LCD Program Box / OTA Programmer | |
Input Wires | Red-10AWG-150mm*1/Black-10AWG-150mm*1 | |
Output Wires | Black-12AWG-100mm*3 | |
Output connector | 4.0mm Gold Bullet Connectors (Female) | |
Size | 83x37x16.5mm | |
Mounting Holes | M3-3mm, 37.5xZ16.5mm | |
Weight | 140g |
SKU | HW30203500 |
Barcode # | 6938994402880 |
Brand | HobbyWing |
Shipping Weight | 0.3500kg |
Shipping Width | 0.160m |
Shipping Height | 0.110m |
Shipping Length | 0.800m |
Shipping Cubic | 0.014080000m3 |
