Motor Overview:

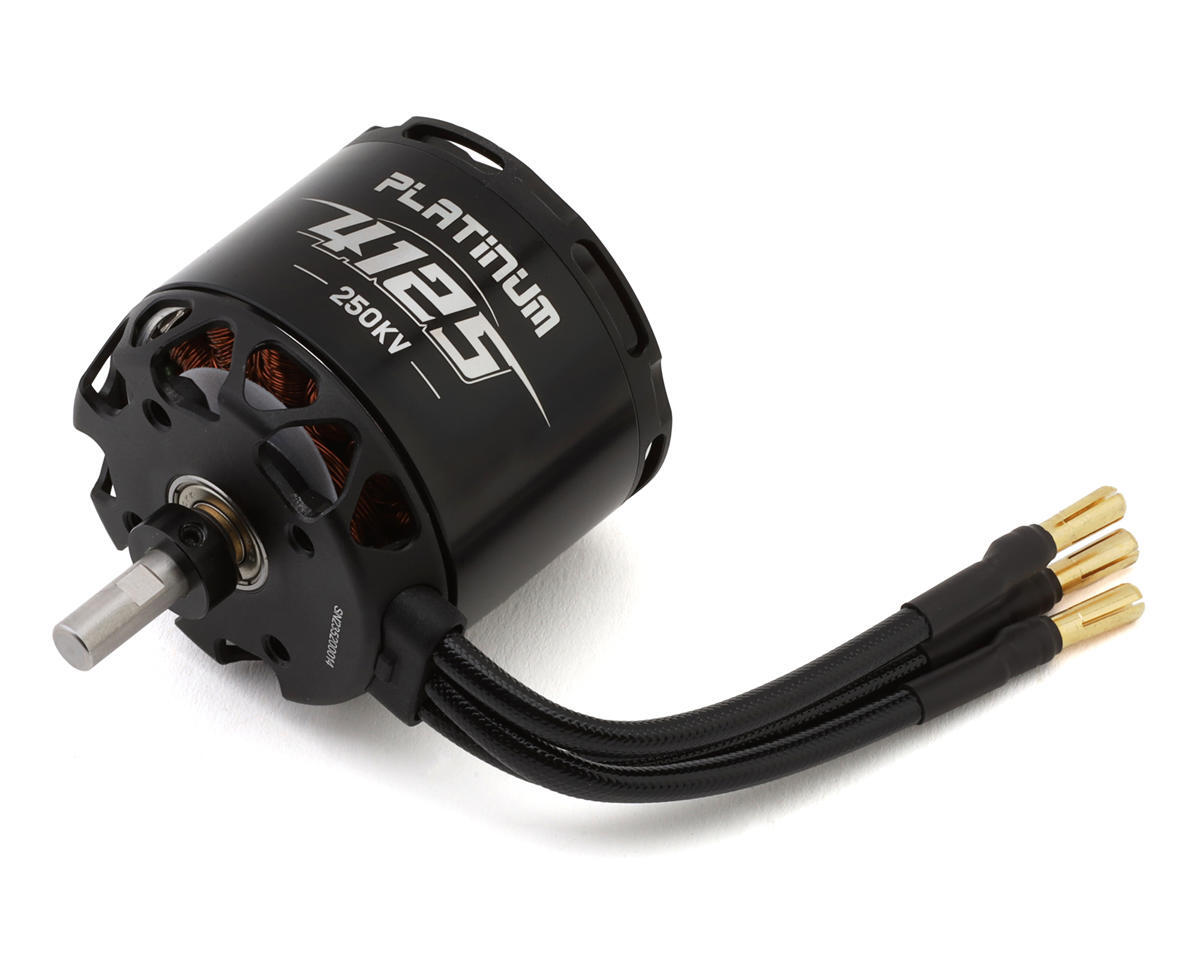

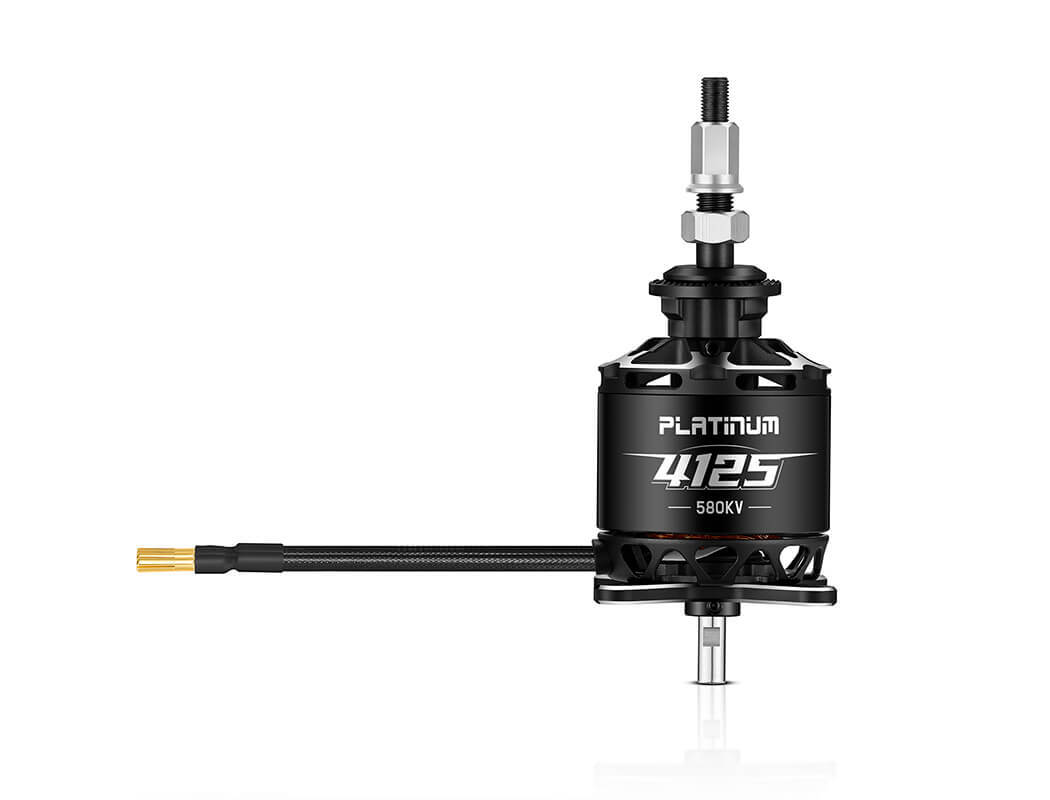

This is the Platinum 4125SL Brushless Outrunner Motor from Hobbywing. Designed with Dual Dynamic Balance Technology, this motor delivers unmatched efficiency and smooth operation. It also features superior heat dissipation for extended performance and a patented propeller locking system for enhanced flight safety.

Features:

• Dual Dynamic Balance Technology for smooth operation
• Boosts efficiency by over two percent compared to competing motors
• Superior heat dissipation for extended runtime

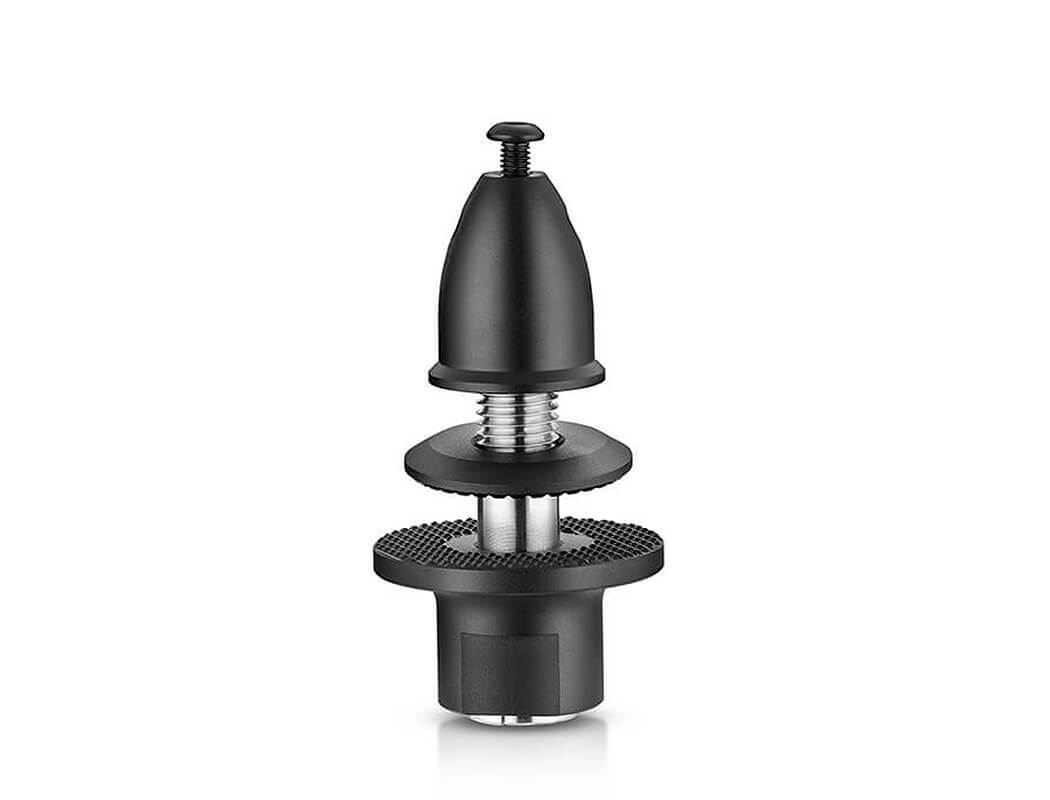

• Patented propeller locking system for added flight safety
• Diamond-shaped anti-slip propeller mount for enhanced reliability

Specifications:

Motor Size: Φ49.5 *77.3mm
Replacement for .50-.60 Glow
Stator Size: Φ40.6*25mm
Stator Process: High standard silicon steel sheet,180? high temperature resistance paint
Enamelled Wire: 200?
Props Mounting Dimensions: Φ15mm-3*M3
Motor Mounting Dimensions: Φ30mm-4*M4
Slot & Pole: 12N14P
Dynamic Balance: ≤10mg
Bearing: 696ZZ
Motor Axle Diameter: Φ6mm
Isolation Test: 500V AC high voltage resistance test
KV: 580
Battery (LiPo): LiPo-6S
No-load Current: 3.9A/22.2V
Maximum Current (Non-hermetic Ambient Temperature ≤ 25?: 119.7A/1min17s
Max Power: 2289W/1min17s
Max Thrust: 7.35kg
Resistance: 9.5mΩ
Wire Size: Enamelled Wire Output
Wire Length: 90mm
Weight (With Wire): 370g

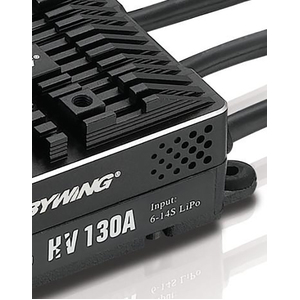

Recommended ESC: PLATINUM 120A V4, PLATINUM 150A V5
Recommended Propeller: 5S:15x8E,16x8E,, 6S:14x6E,14x7E,15x6E

Includes:

• (1) Platinum 4125SL Brushless Outrunner Motor

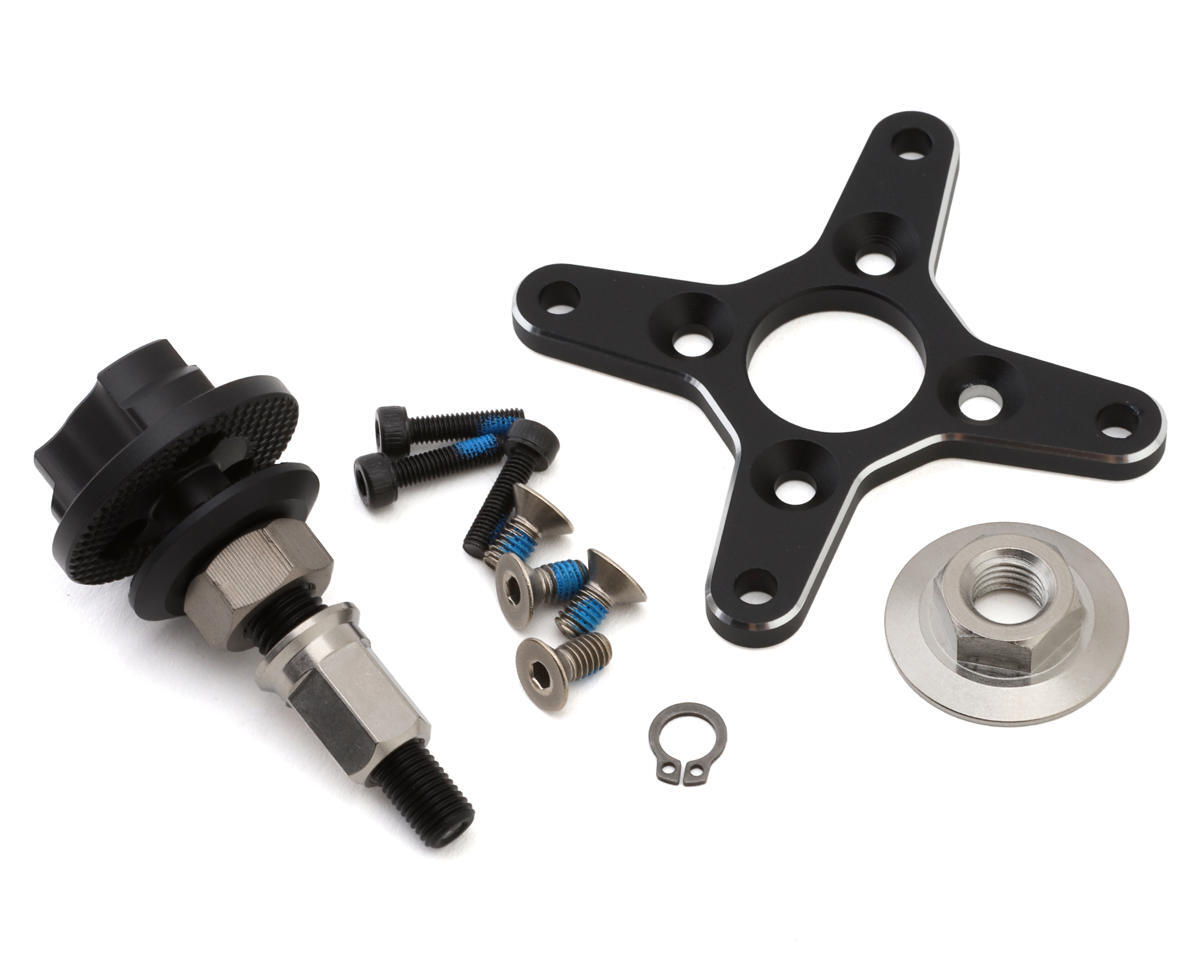

• Motor Hardware and Accessories
