Features of HobbyWing V5 Series Electronic Speed Controllers:

● DEO Technology / Active Freewheeling: the DEO technology (Driving Efficiency Optimization) implemented in the ESC has multiple advantages:
 - Rapider and smoother throttle response, better stability and flexibility during flight.
 - Higher driving efficiency, longer flight time.
 - Lower ESC temperature, more reliable operation.

● Soft Start-ups & Reverse Brake
 - New soft start-up modes are applicable to regular propeller aircraft and EDF aircraft with different sizes. With Reverse Brake mode enabled when landing can effectively shorten the sliding distance of the aircraft to simulate the landing of a real aircraft (within a super short-distance). Normal Brake Mode, Proportional Brake mode, and Brake Disabled mode are also available; the brake amount is adjustable in normal brake mode while in proportional brake mode, the brake force will be automatically allotted on the basis of the position of radio throttle stick.

● BEC - This version has no BEC use seperate Rx battery

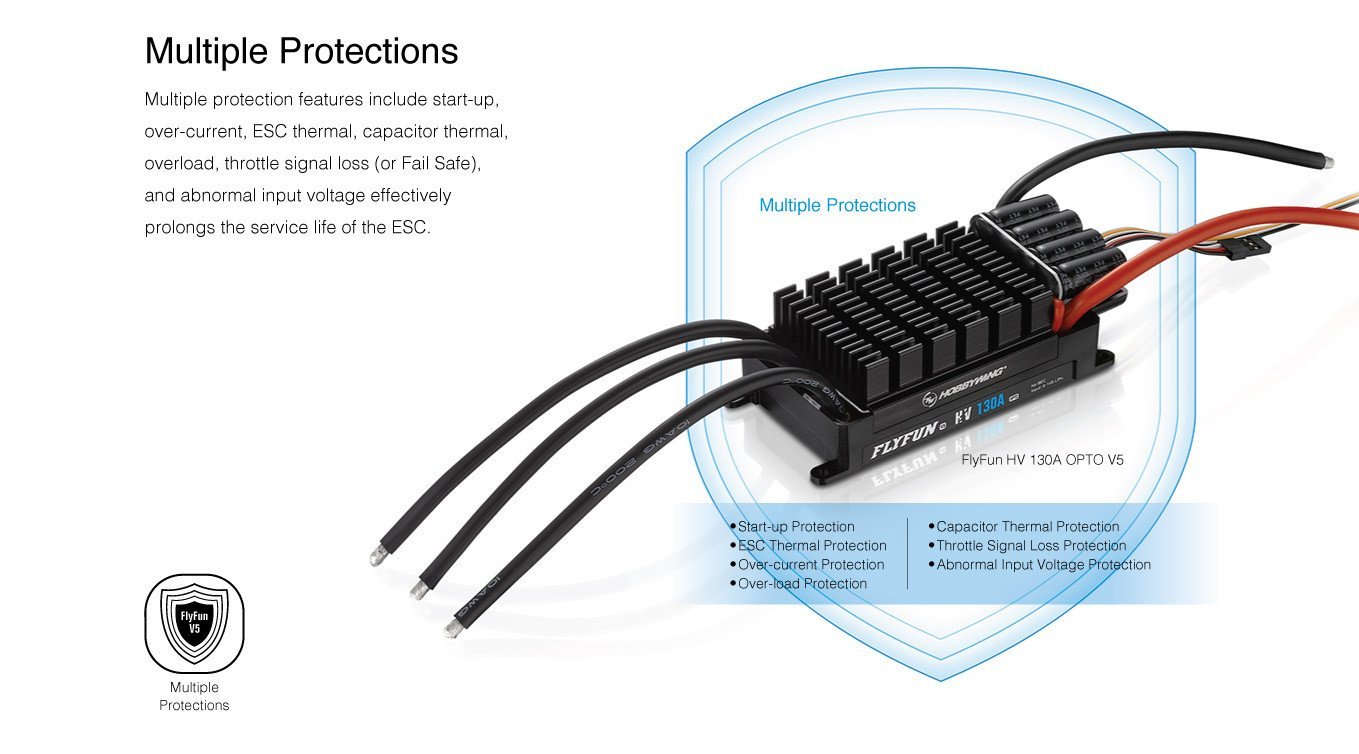

● Multiple Protections
 - Multiple protection features include start-up, over-current, ESC thermal, capacitor thermal, overload, throttle signal loss (or Fail Safe), and abnormal input voltage effectively prolongs the service life of the ESC.

● New Design & Great performance
 - New design brings exquisite look and good heat-dissipating performance. Imported components and the PCB (printed circuit board) with extremely low impedance adopted by the ESC guarantee great current endurance, excellent performance and high reliability. The ESC is available in high-voltage/regular version with different Amps.

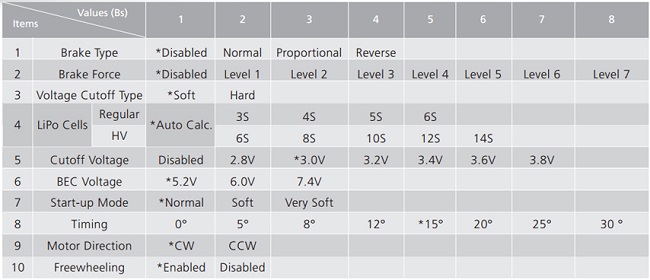

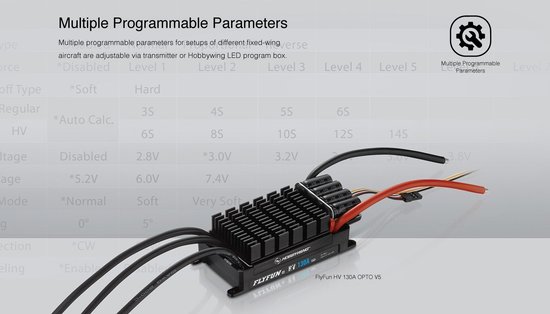

 Multiple Programmable Parameters
 - Multiple programmable parameters for setups of different fixed-wing aircraft are adjustable via transmitter or Hobbywing LED program box.

Specifications:

● Continuous/peak current: 130A / 160A
● Input voltage: 6-14s lipo
● SBEC output: None (OPTO)
● Wire size/length: 10AWG 150mm (motor side) / 150mm (battery side)
● Connectors: None
● Dimensions: 110 x 50.3 x 33.2mm
● Weight: 221.5g

Click here to download the V5 programming manual

Programmable via transmitter or optional programming card:

SKU HW30201500
Barcode # 6938994402750
Brand HobbyWing
Shipping Weight 0.6000kg
Shipping Width 0.100m
Shipping Height 0.080m
Shipping Length 0.150m
Shipping Cubic 0.001200000m3
