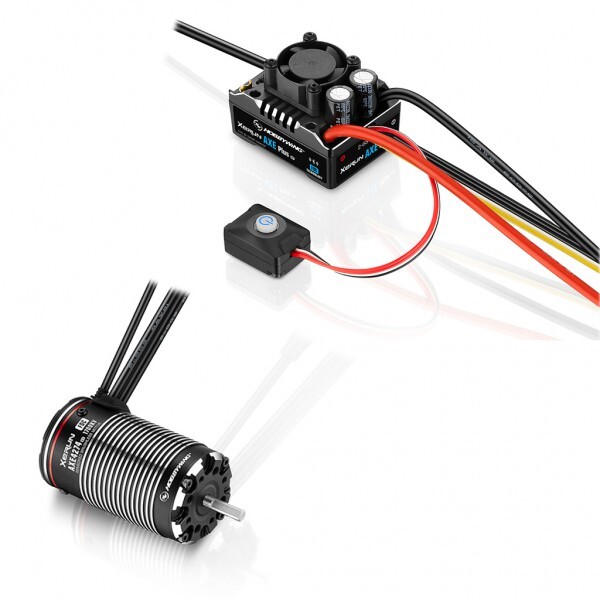

Combo XeRun AXE Plus R3 & AXE 4274SD 2000KV R3 Motor

Step into a realm of unparalleled RC performance with the Hobbywing Combo Xerun AXE Plus R3 & AXE 4274SD 2000KV R3 Motor. This impressive fusion of advanced electronics and powerful motor delivers a level of control and performance that will astonish every RC enthusiast. Whether you're a seasoned racer or simply seeking the ultimate thrill of RC fun, this combo provides everything you need to elevate your RC experience to new heights. With the Xerun AXE Plus R3 ESC for smooth operation and the AXE 4274SD 2000KV R3 Motor for potent acceleration, you're ready for any challenge that comes your way. Get ready to take control and push the boundaries of RC performance with this unbeatable combo.

Experience the Future of Rock Crawling with AXE R3 ESC:

• Enhanced FOC (Field Oriented Control) driving mode delivers unparalleled low-speed torque, surpassing standard brushless setups and even brushed alternatives for an unmatched feel.
• Equipped with a chip-type magnetic encoder, ensuring precise rotor position signals for consistent performance across all terrains.
• Engineered to IP67 standards, the waterproof and dust-proof design allows you to conquer any weather or track condition without fear of damage to the system.
• Intelligent torque output and speed closed-loop control ensure effortless maneuverability and consistent motor RPM under all loads.
• Enjoy customizable drag brake and drag brake rate control, offering up to 200% more braking power than standard brushless systems, providing unprecedented hold on slopes.
• With built-in Bluetooth connectivity, easily configure ESC settings, access ESC data, or update firmware via the HW LINK app on your smartphone.
• Safety is paramount with multiple protections including low-voltage cutoff, thermal protection, fail-safe measures, motor lock-up prevention, and battery reversal protection.

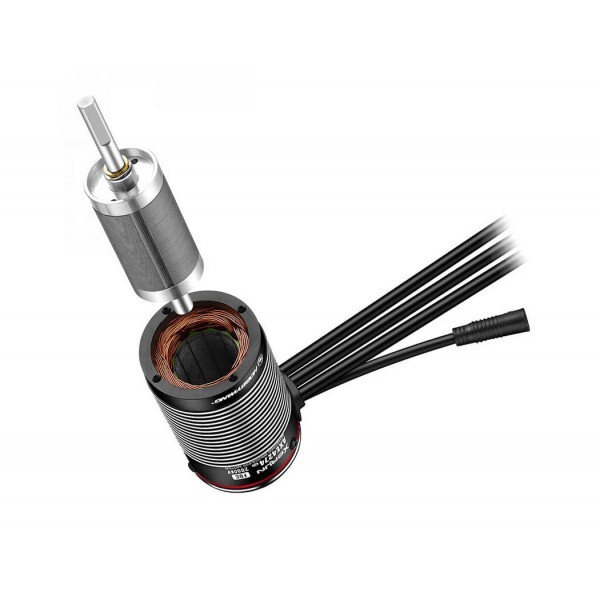

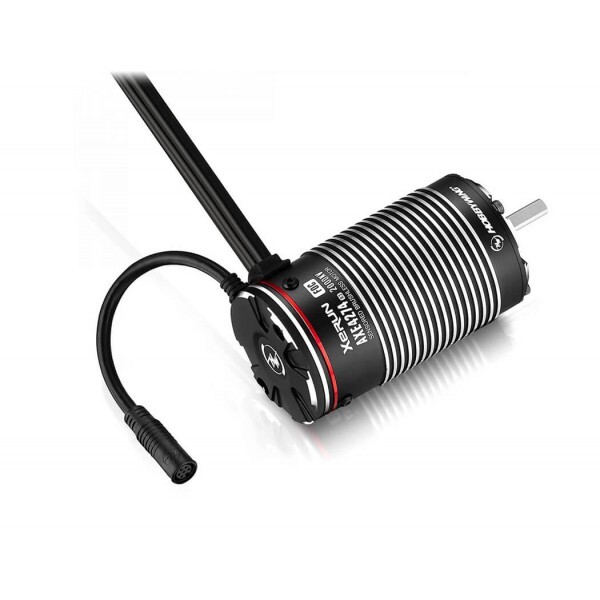

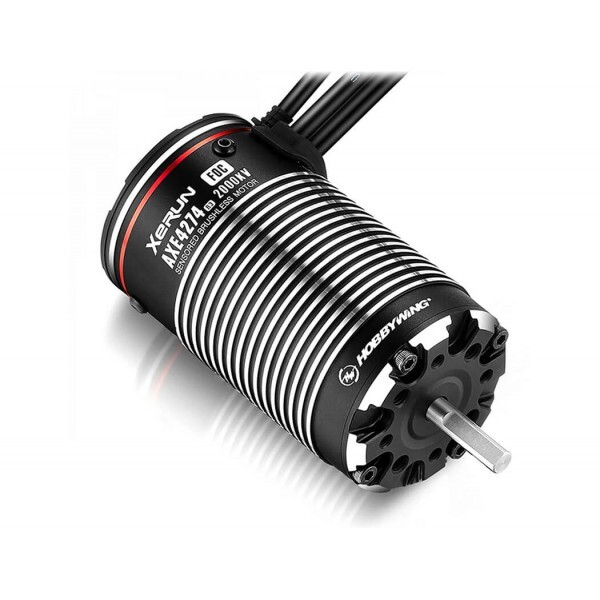

XERUN AXE 4274 FOC Motor

• 6S High Power:Elevate your crawler's capabilities with support for up to 6S LiPo battery, delivering a remarkable 106% increase in maximum output power and 11% greater efficiency compared to its predecessor, the R2 motor.
• Two KV Options, Wide Application: Choose between 1700KV and 2000KV options of the AXE 4274 motor, catering to diverse application requirements across 1/8th, 1/7th, and 1/6th scale crawlers.
• Excellent Protection: Equipped with IP67 protection, the AXE R3 motor features a proven HOBBYWING waterproof sensor harness design, ensuring reliability in complex and varied climatic conditions.
• Precision Magnetic Sensor: Built-in with a precision magnetic encoding sensor, offering 60 times greater accuracy than traditional sensors commonly used in brushless motors. Enjoy consistent three-phase signals and precise rotor position feedback.
• Strong Compatibility with Optional Motor Adapter: The XeRun AXE R3 motor boasts 4 sets of 25.4mm mounting holes and 4 for M3/M4 respectively. For frames with 30mm mounting holes, an optional motor mounting conversion plate is available for purchase, ensuring compatibility with a wide range of setups.
• Premium Materials, Performance Upgrade:Crafted with high-quality aluminum CNC shell, top-tier brand bearings, ultra-thin silicon steel sheets, 200°C high-temperature-resistant enameled wire, and a high-toughness alloy output shaft. Hobbywing is dedicated to delivering exceptional performance to users worldwide. Elevate your crawler's performance to new heights with the XeRun AXE R3 motor.

Video

WHAT'S INCLUDED

• 1x Xerun AXE Plus R3 ESC
• 1x Motor
• 1x Manual

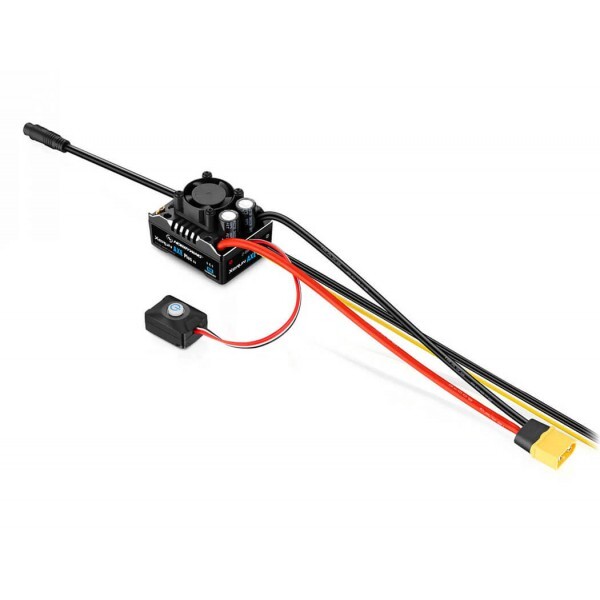

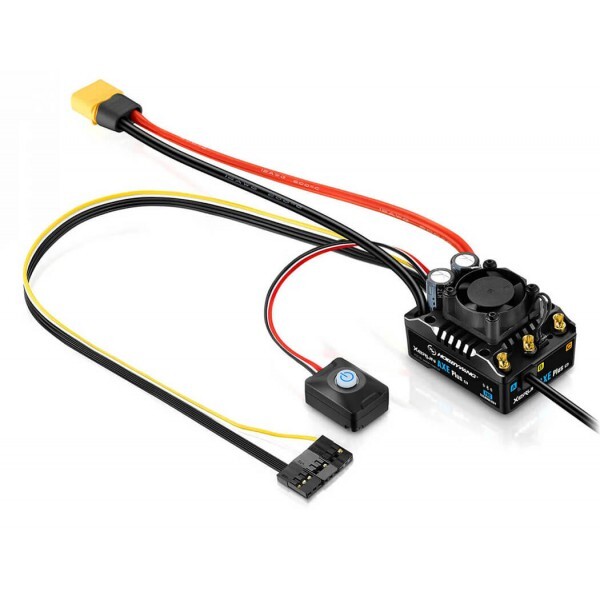

SPECIFICATIONS XERUN AXE PLUS R3

Type: Brushless Sensored FOC
Current (cont./peak): 135A / 600A
Cells: 2S-6S LiPo
Motor Limits: Only supports Xerun-AXE "R2" and "R3" motor series
AXE R2: 540 / 540L / 550
AXE R3: 4274
BEC: 6V / 7.4V / 8.4V @ 6A (Switch Mode)
Waterproof: Yes
Cables: 1x 12AWG (black, 265mm), 1x 12AWG (red, 265mm)
Fan: 25 x 25 x 10mm, powered by BEC
Connectors: XT60
Programming: Per Bluetooth and "HW LINK"-App
Firmware Upgrade: Yes

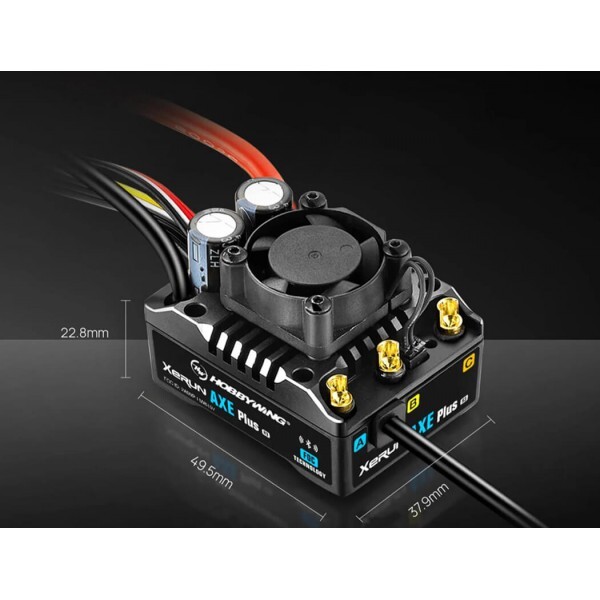

Dimensions: 49.5 x 37.9 x 32.8mm
Weight: 126.5g
Application: 1/10, 1/8, 1/6 Rock Crawler
