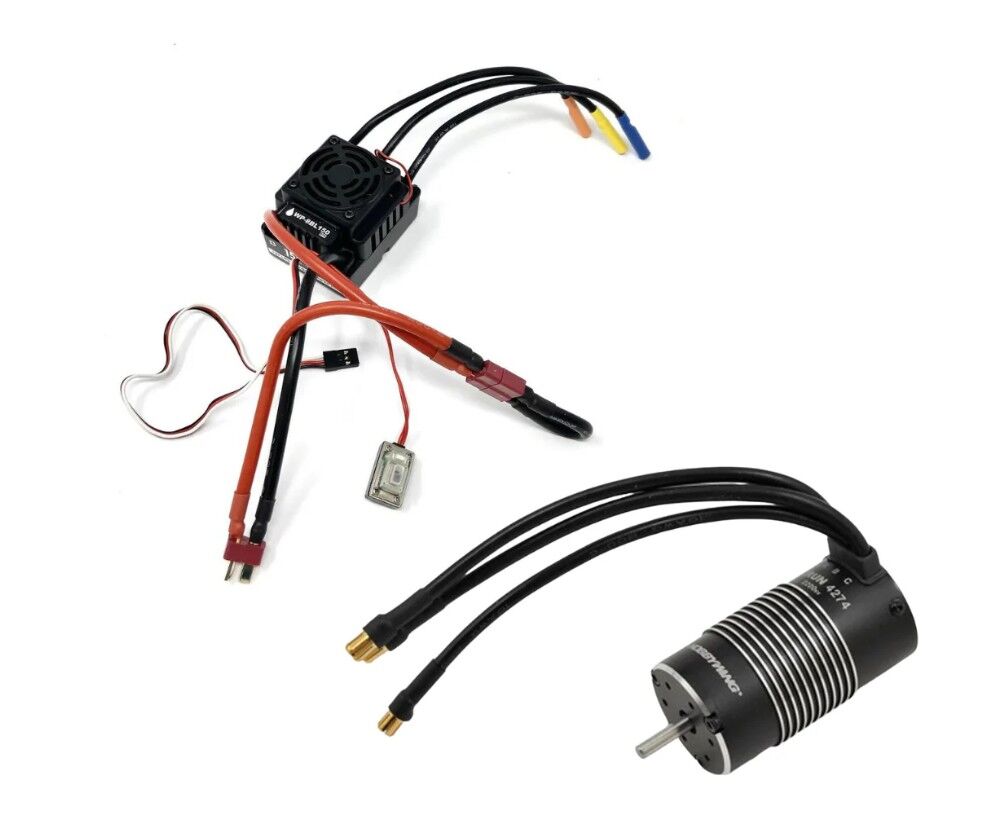

Ace Power brushless motor and ESC combo to suit 1/8th scale cars, powered by Hobbywing.

Specifications

• 1.1 Output: Continuous current 150A, burst current 950A.
• 1.2 Input: 6-18 cells NiMH/NiCd or 2-6 cells LiPo. (2S lipo or 6 cells NiMH is not recommended )
• 1.3 BEC Output: 5.75V/3A (Switch mode built-in BEC).
• 1.4 Resistance: 0.0002 Ohm.
• 1.5 Motor Supported: Sensorless and sensored brushless motors
• 1.6 Suitable Brushless Motor:
• When working with 4 cells Lipo: KV<=3000
• When working with 6 cells Lipo: KV<=2400
• The above T number is the value of a 4274 sized motor (Diameter=42mm, Length=74mm)
• 1.7 Suitable Car: 1/8 Buggy / Truggy / Monster.
• 1.8 Size: 58mm(L) * 46.5mm(W) * 35mm(H).
• 1.9 Weight: 105g(Without wires)

Program Card

• Hobbywing LED style program card included

This system is an easy to use and set up Truggy or Monster Truck sensor less system that is designed to run on 4 or 6 cell lipo.
