Designed in 1935-1936 as large ocean-going U-boats, they were derived from type IA. Diving depth designed as 100m operational and 200m crush depth (many boats went much deeper and survived). Fitted with 6 torpedo tubes below the waterline (4 at the bow and 2 at the stern) they carried 22 torpedoes. They had the same hydroplane and rudder layout as the VIIC. One periscope in the control room (deleted from types IXC onwards) and two in the tower.Type IX had 5 external torpedo containers (3 at the stern and 2 at the bow) which stored 10 additional torpedoes. As mine-layers they could carry 44 TMA or 66 TMB mines. Secondary armament was provided by one large Utof 105/45 gun with about 110 rounds. AA armament differed throughout the war.

Features
Item No : 83506

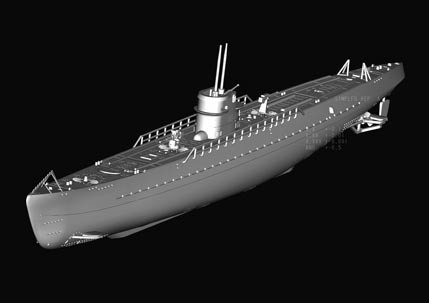

Item Name : DKM Navy Type lX-A U-Boat
Bar Code : 6939319235060
Scale : 1:350
Item Type : Static kit
Model Dimension : Length: 219mm   Beam: 19mm
Total Plastic Parts : 43pcs
Total Sprues : 2 sprue, upper hull and lower hull
Chromeplate Parts : n/a
Camouflage Scheme : German Navy
Resin Parts : n/a
Metal Parts : n/a
Photo Etched Parts : 2pcs
Film Accessory : n/a
Released Date : 2010-06

SKU HB83506
Barcode # 6939319235060
Brand HobbyBoss Models
Shipping Weight 0.3000kg
Shipping Width 0.150m
Shipping Height 0.100m
Shipping Length 0.350m
Shipping Cubic 0.005250000m3
