Hobby Wing UBEC 8A (2-3S)
SKU code: HW86010030
Make 4 interest-free payments of $8.75 fortnightly and receive your order now.
Overview

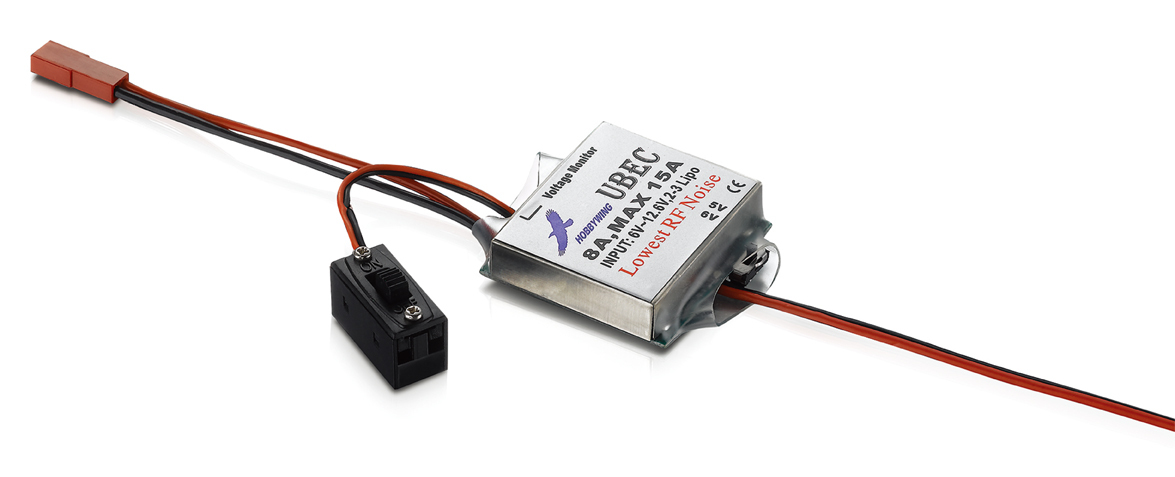

The 8A-UBEC is a switching-mode DC-DC regulator supplied with a 2-3 cells lithium battery pack
and outputs a consistent safe voltage for your receiver, gyro and servos. It is very suitable for nitro
powered RC helicopter (above 30 class) and big fixed-wing aircraft.
Compared with the linear mode UBEC, the overall efficiency of the switching-mode BEC is much higher, so it can extend the working time of the receiver battery pack, and because a switchingmode UBEC can significantly reduce the heat emission, it can avoid the loss of control caused by the over-heat problem which is frequently happened with the linear mode UBEC.
Specifications
Output: 5V/8A or 6V/8A (Changeable with an output-voltage select switch )
Input: 6V-12.6V (2-3 cells lithium battery pack)
Size: 42mm*39mm*9mm (length*width*height)
Weight: 38g
Quiescent current: 60mA
Features
Designed with an advanced switching-mode DC-DC regulator IC. The output current is very large, the continuous output current is up to 8A, and the burst output current is 15A.
Output short-circuits protection function.
A metal shield covers almost all the electronic components, and a specially made filter (ferrite ring) is attached with the output wires to significantly reduce the electromagnetic interference.
Automatically detects the number of the lithium battery pack (2 cells or 3 cells), and shows the battery capacity with 4 indicators (LEDs). Shows the working status with an indicator (LED), lights when the output is in normal range.
2 output leads to reduce the resistance when connecting the UEBC to the receiver.
Accessory: A step-down voltage regulator with 0.7V down (from 6.0V to 5.3V).
SKU | HW86010030 |
Barcode # | 6938994400121 |
Brand | HobbyWing |
Shipping Weight | 0.3000kg |
Shipping Width | 0.080m |
Shipping Height | 0.060m |
Shipping Length | 0.080m |
Shipping Cubic | 0.000384000m3 |
