Name: Hobby Wing Platinum PRO V4 ESC - 60A (3S-6S)
Brand: HobbyWing
Price: 115.01 AUD
Availability: InStock

Phone (07) 31033011 Between - 9:30am - 4:30pm

Platinum PRO V4 - 60A (3S-6S)

3-6S LiPo

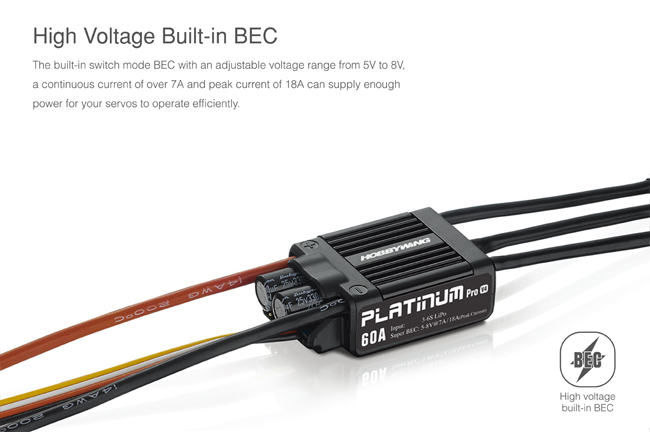

Built-in BEC 5V-8V (default 5V)
Firmware upgrade and programming via WiFi Express module or LCD program box (purchase separately)

Model	Platinum 60A ESC V4
Application	450-480 Class Heli (Propeller: 325-360mm)
Input Voltage	3-6S LiPo
Cont./Peak Current (10s)	60A/80A
PWM	18KHz
(Switch-mode) BEC	5V-8V Adjustable (Step: 0.1V), 7A/18A Cont./Peak
Separate Programming Port	For connecting LCD Program Box/WIFI Express
Throttle Signal/BEC Output/RPM Signal Transmission Wire(s)	White Throttle Signal Wire/Red & Black BEC Output Wires/ Yellow RPM Signal Transmission Wire
Input Wires	Red-14AWG-100mm1/Black-14AWG-100mm1
output wires	Black-14AWG-75mm*3
Output connectors	3.5mm Gold Connectors (Female)
Weight/Size	49g / 48x30x15.5mm

SKU	HW30215100
Barcode #	6938994402613
Brand	HobbyWing
Shipping Weight	0.4000kg
Shipping Width	0.100m
Shipping Height	0.080m
Shipping Length	0.100m
Shipping Cubic	0.000800000m3
