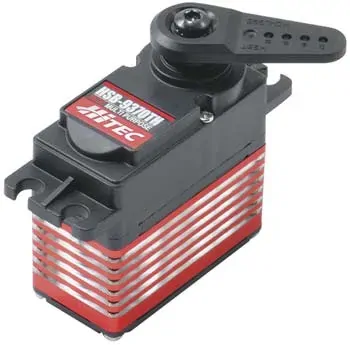

With ultra-efficient Neu Castle brushless motors, titanium gear trains, low current consumption and constant output power, the HSB-93XX series of servos is the perfect match for the most discriminating pilots and racers. The HSB-9360's speed is ideal for helicopter pilots.

Features

• Industry-Leading Titanium Gear Train
• 25-Tooth Standard Spline
• Constant Power Output
• Programmable 12-Bit Resolution Digital Circuit
• Low Current Consumption
• Energy Efficient

Programmable Functions

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Soft Start Rate
• Data Save / Load
• Program Reset (From File)

Specifications
Operating Voltage Range (Volts DC): 6.0V ~ 7.4V
Speed (Second @ 60°): 0.12 ~ 0.10
Maximum Torque Range oz. / in.: 347
Maximum Torque Range kg. / cm.: 25
Current Draw at Idle: 27 mA
No Load Operating Current Draw: 250 mA
Stall Current Draw: 2,100 mA
Dead Band Width: 1 µs

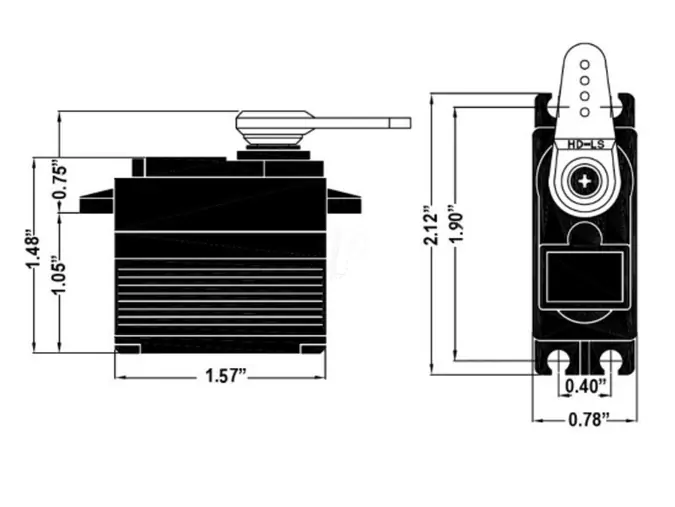

Dimensions (Metric): 40.0 x 20.0 x 38.0
Weight (Gram): 68
Circuit Type: EBL Digital
Motor Type: NeuCastle Brushless
Gear Material: Titanium
Bearing Type: Dual Ball Bearing
Output Shaft (type / Ømm): H25T
Case Material: Plastic / Aluminum
Dust / Water Resistance: Splash Proof
Connector Gauge (AWG) / Strand Count: 20 / 80
