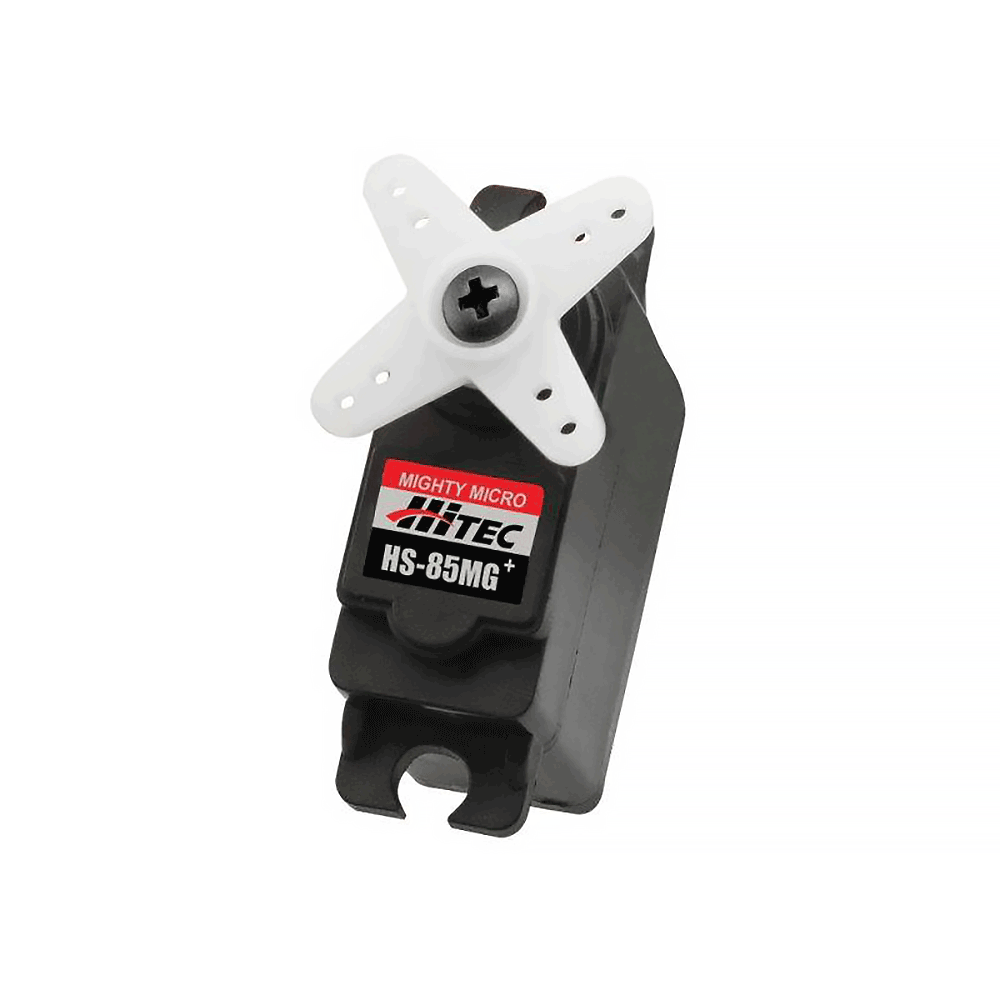

The HS-85MG features a high power motor for greater speed and torque. The HS-85MG is the choice of modelers looking for a high performance servo without breaking the bank. The ball bearing supported output shaft and sturdy gear trains are preferred for smaller glow and electric airplanes, heli’s and sail planes.

Features

  • High Torque and Precision Centering
  • Rugged Metal Gears
  • Ball Bearing-Supported Output Shaft
  • Perfect for Applications where a Standard Servo is too Heavy or Large but Standard Torque is Required

Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.16 ~ 0.14
Maximum Torque Range oz. / in.: 42 ~ 49
Maximum Torque Range kg. / cm.: 3.0 ~ 3.5
Current Draw at Idle: 8 mA
No Load Operating Current Draw: 240 mA
Stall Current Draw: 1,200 mA
Dead Band Width: 8 µs

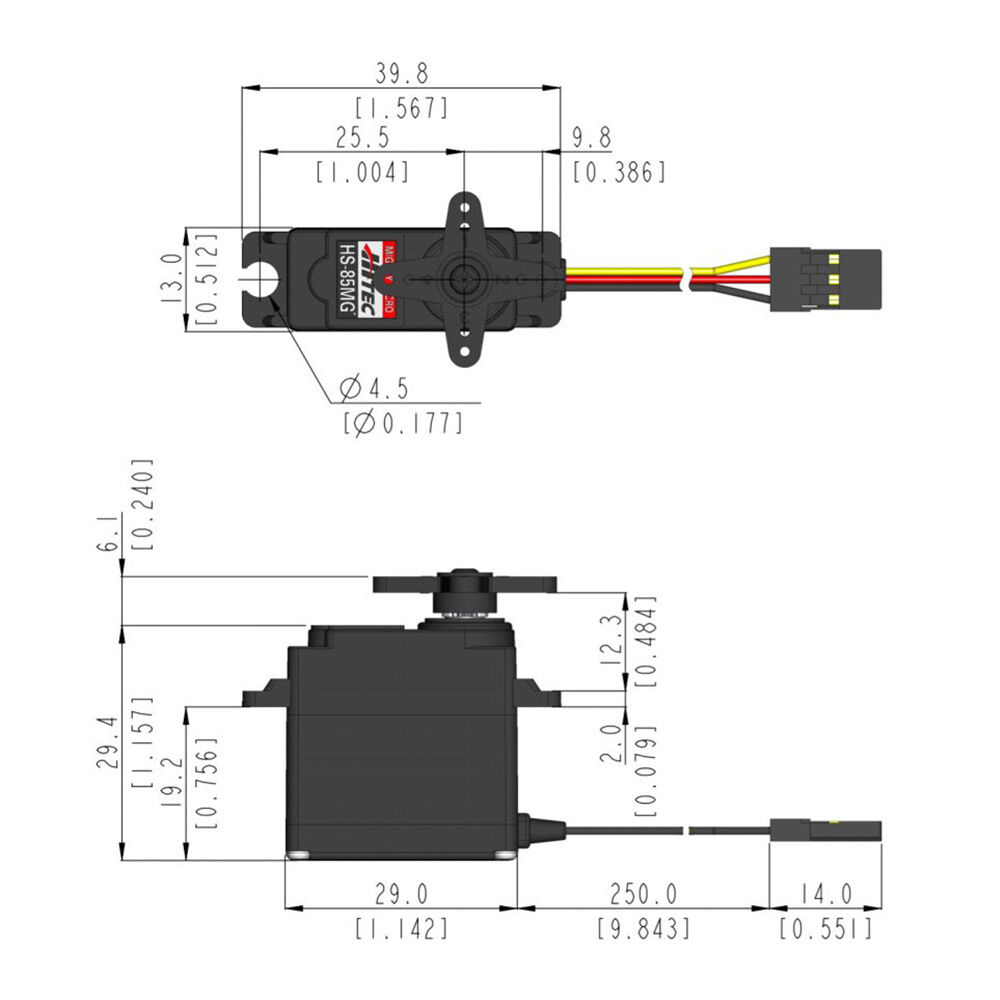

Physical Specifications
Dimensions (Inches): 1.14 x 0.51 x 1.18
Dimensions (Metric): 29.0 x 13.0 x 30.0
Weight (Ounces): 0.77
Weight (Gram): 21.9
Circuit Type: HT7003 Analog SMT
Motor Type: 3 Pole Metal Brush Ferrite
Gear Material: Metal
Bearing Type: Top Ball Bearing
Output Shaft (type / Ømm): Standard 24
Case Material: Plastic
Dust / Water Resistance: N / A
Connector Gauge (AWG) / Strand Count: 28 / 20

SKU HRC32085S
Barcode # 0669962320306
Brand Hitec
Shipping Weight 0.0500kg
Shipping Width 0.070m
Shipping Height 0.040m
Shipping Length 0.080m
Shipping Cubic 0.000224000m3
