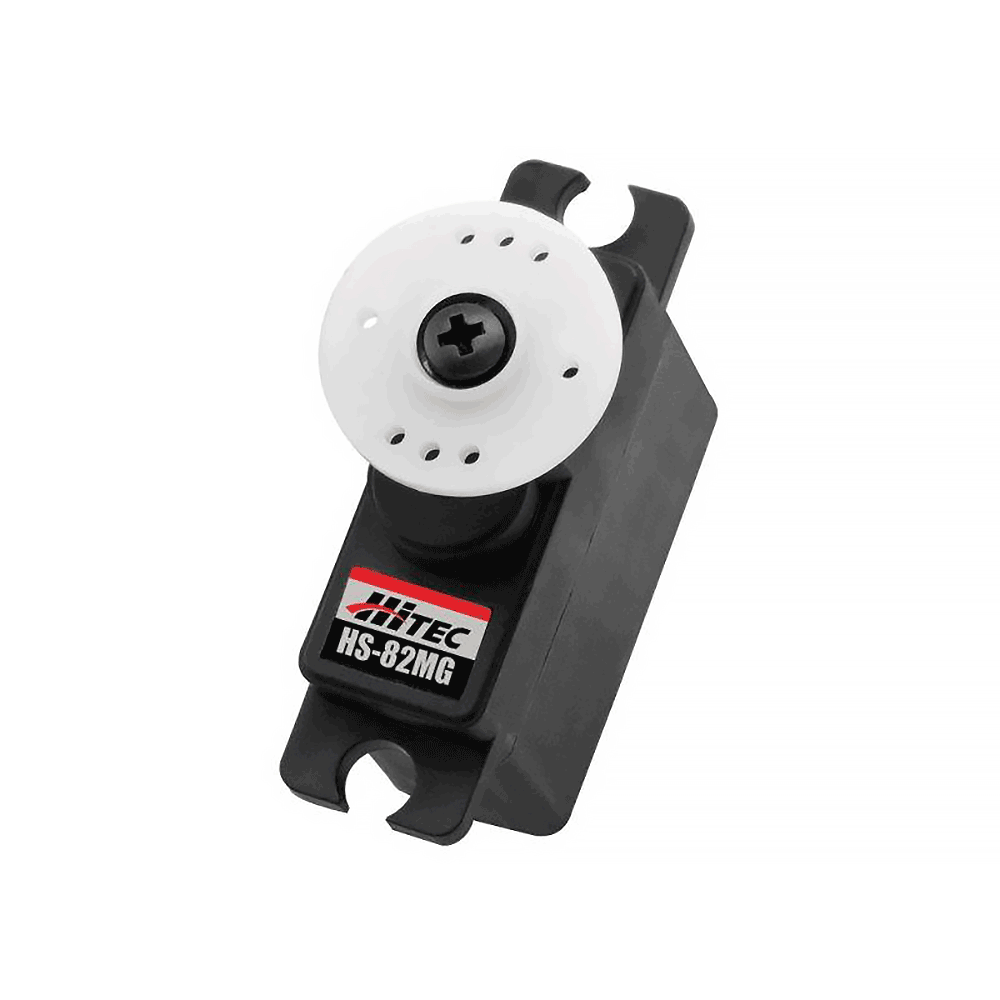

Based on the ultra popular HS-81, the HS-82MG gets a new stronger motor and updated electronics for more precise centering. The HS-82MG is perfect for smaller aircraft and helicopters where a durable geartrain is required.

Features

  • Top Selling Metal Gear Micro Servo
  • Strong Three-Pole Ferrite Motor
  • Rugged Metal Gears

Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.12 ~ 0.10
Maximum Torque Range oz. / in.: 39 ~ 47
Maximum Torque Range kg. / cm.: 2.8 ~ 3.4
Current Draw at Idle: 10 mA
No Load Operating Current Draw: 280 mA
Stall Current Draw: 1,800 mA
Dead Band Width: 5 µs

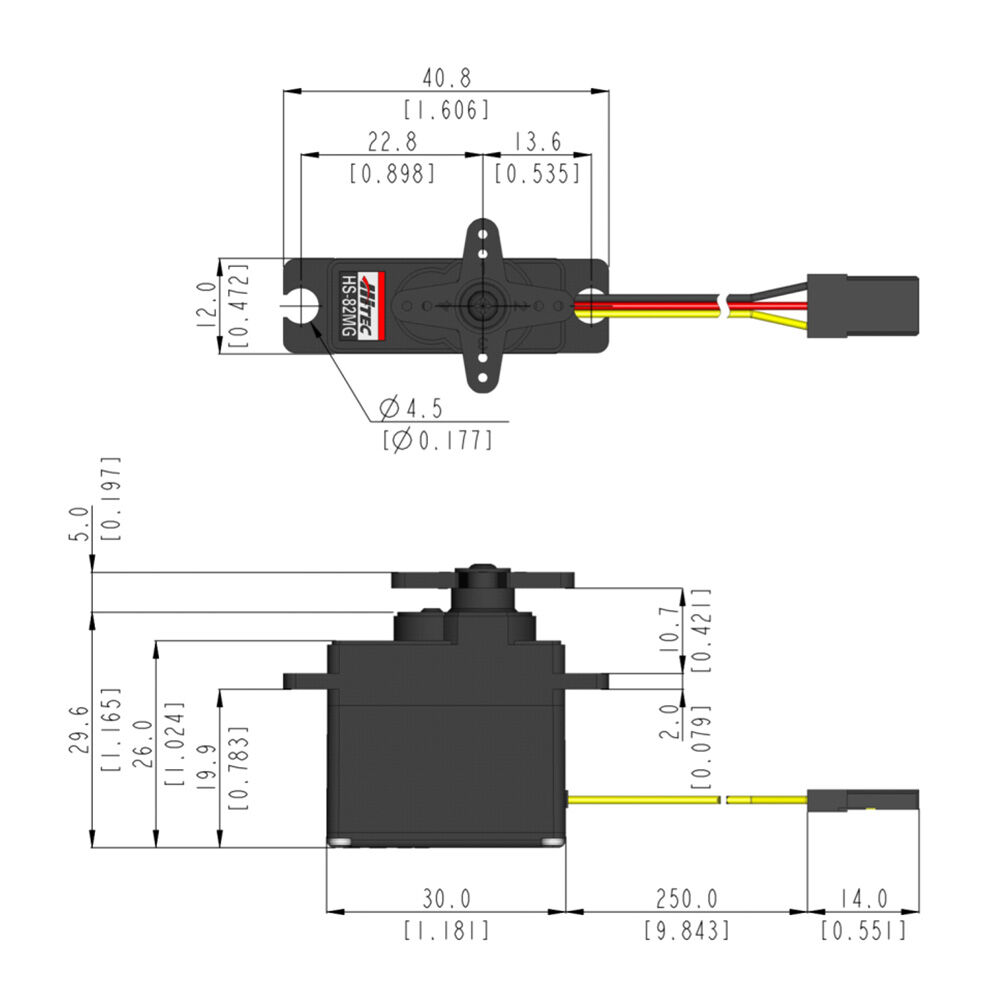

Physical Specifications
Dimensions (Inches): 1.17 x 0.47 x 1.16
Dimensions (Metric): 29.8 x 12.0 x 29.6
Weight (Ounces): 0.66
Weight (Gram): 19.0
Circuit Type: HT7003 Analog SMT
Motor Type: 3 Pole Metal Brush Ferrite
Gear Material: Metal
Bearing Type: None
Output Shaft (type / Ømm): Standard 24
Case Material: Plastic
Dust / Water Resistance: N / A
Connector Gauge (AWG) / Strand Count: 28 / 20

SKU HRC32082S
Barcode # 0669962320504
Brand Hitec
Shipping Weight 0.0500kg
Shipping Width 0.070m
Shipping Height 0.040m
Shipping Length 0.080m
Shipping Cubic 0.000224000m3
