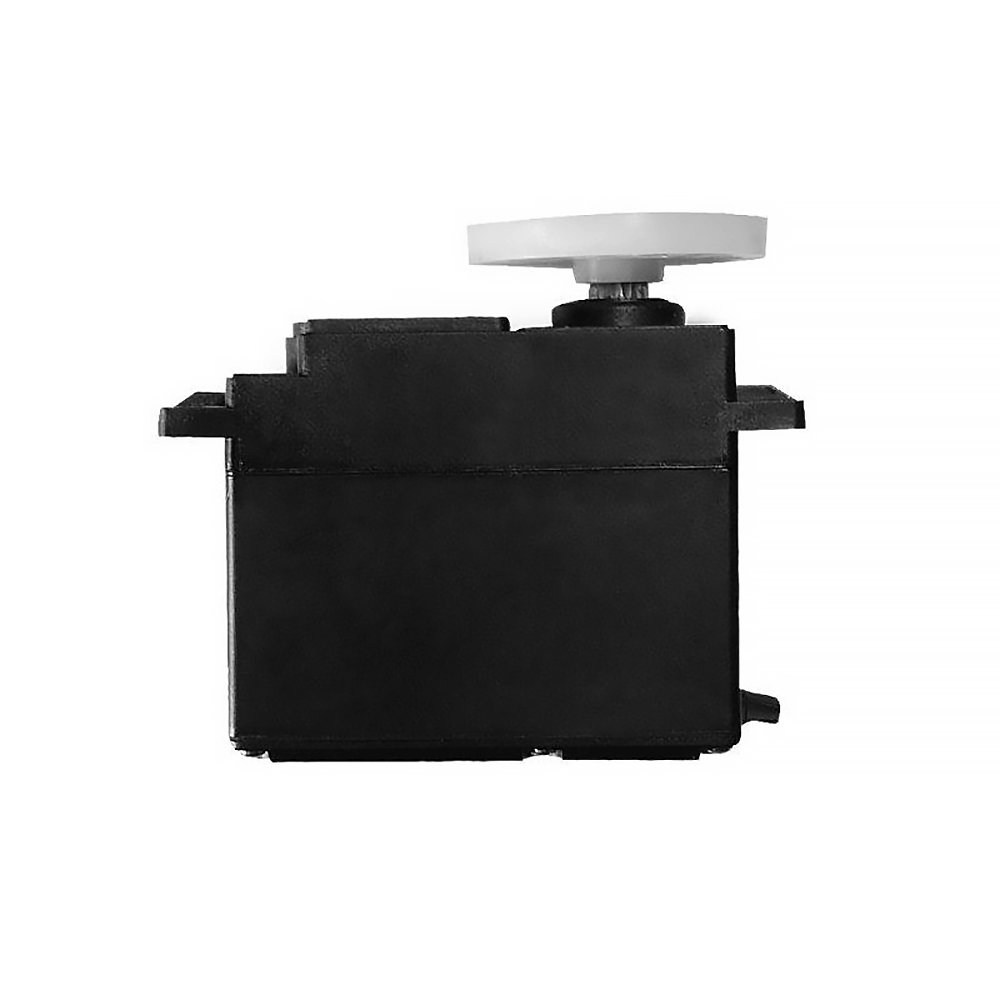

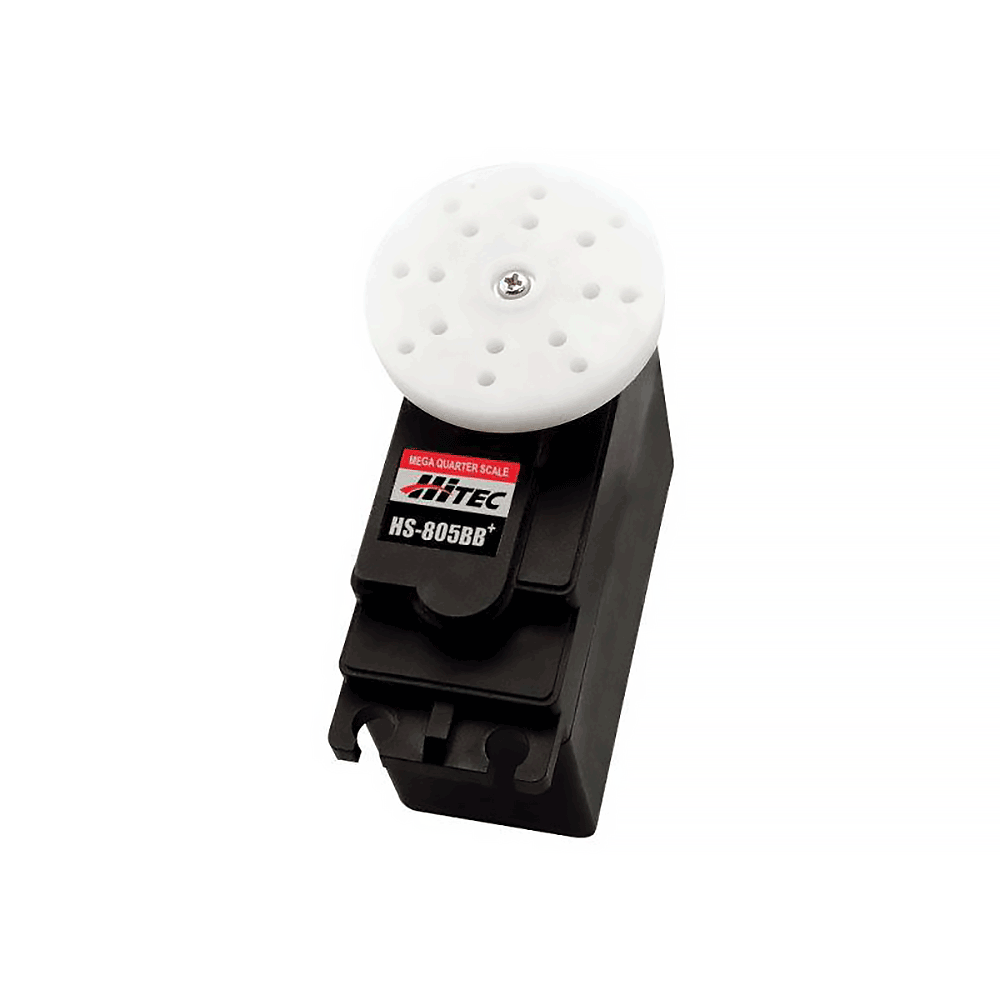

Known as the “monster” servo, the HS-805BB uses a heavy duty nylon gear train and a strong 10mm, 15 tooth output shaft to generate 343 oz./in. of torque that will easily move just about any large plane, car, truck or boat!

Features

• Economical Choice in a "Monster" Analog Servo
• Strong Three-Pole Ferrite Motor
• Heavy Duty, Nylon Gear Train
• Large 8mm Output Shaft with Dual Ball Bearings
• Solid Performance and Strong Gear Train
• Water and Dust-Resistant Case

Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.19 ~ 0.14
Maximum Torque Range oz. / in.: 275 ~ 343
Maximum Torque Range kg. / cm.: 19.8 ~ 24.7
Current Draw at Idle: 8 mA
No Load Operating Current Draw: 520 mA
Stall Current Draw: 6,000 mA
Dead Band Width: 8 µs

Physical Specifications

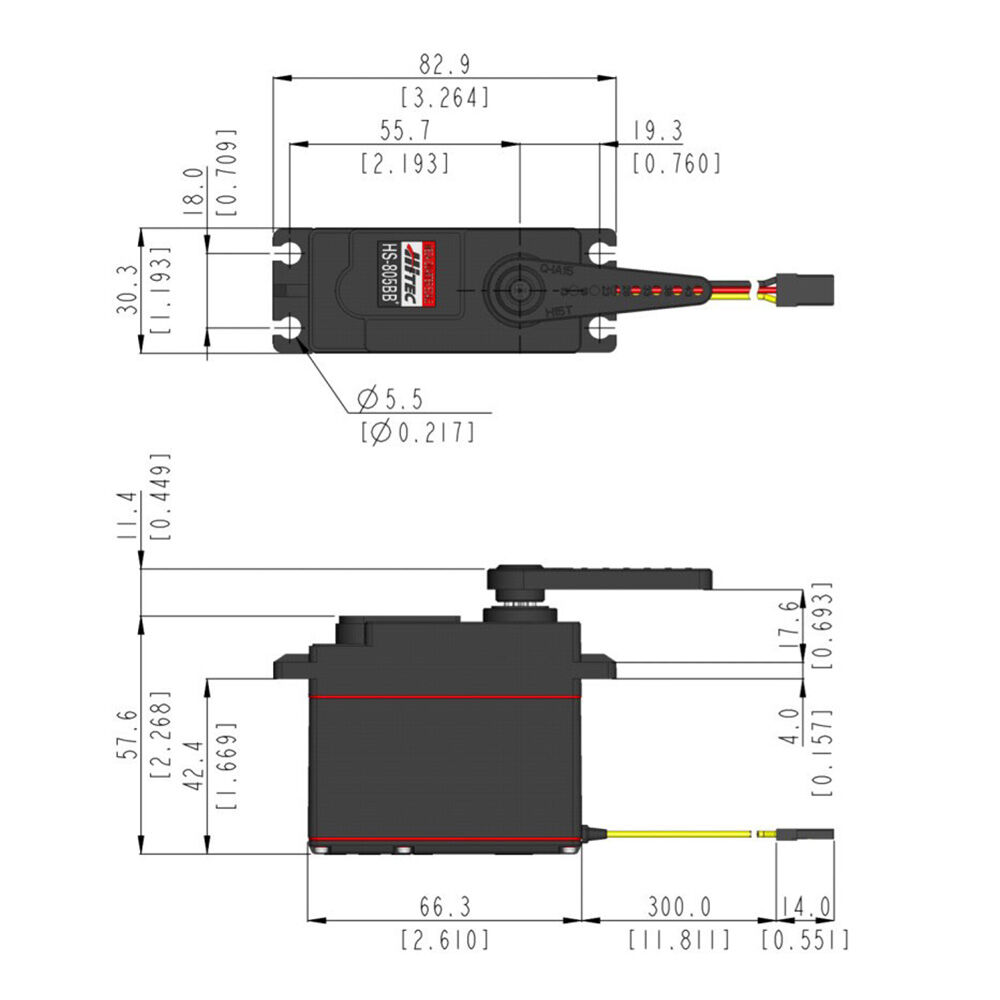

Dimensions (Inches): 2.59 x 1.18 x 2.26
Dimensions (Metric): 66.0 x 30.0 x 57.6
Weight (Ounces): 5.36
Weight (Gram): 152.0
Circuit Type: HT7003 Analog MosFet
Motor Type: 3 Pole Carbon Brush Ferrite
Gear Material: Nylon
Bearing Type: Dual Ball Bearing
Output Shaft (type / Ømm): Mega 15
Case Material: Plastic
Dust / Water Resistance: Splash Proof
Connector Gauge (AWG) / Strand Count: 22 / 60
