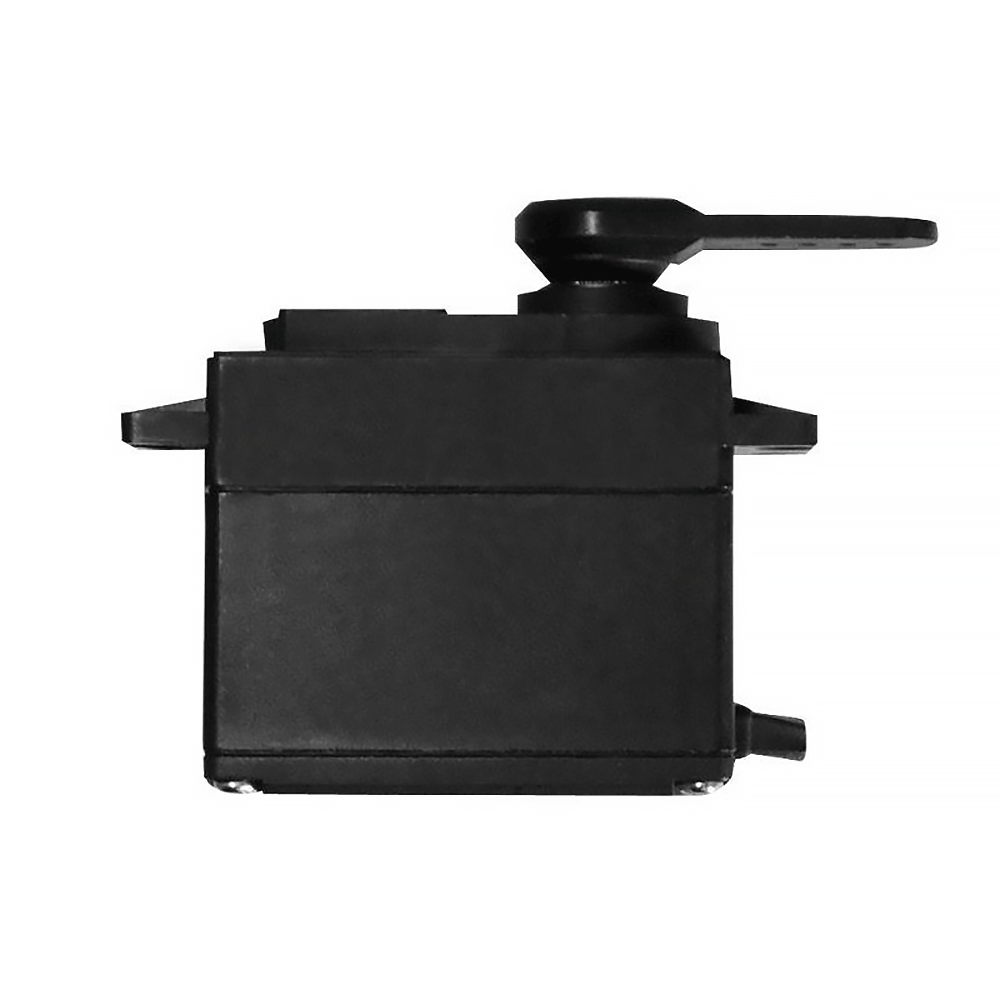

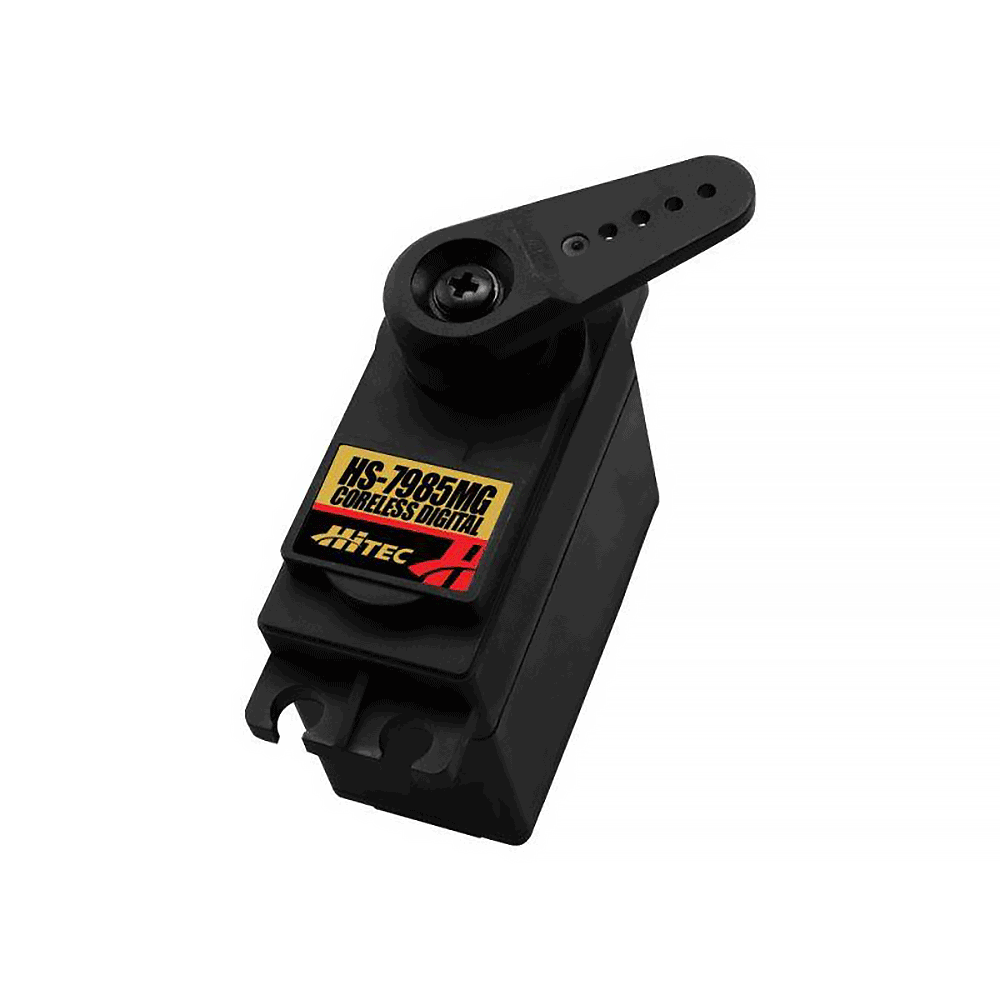

The HS-7985MG High Torque Digital Servo has the added benefit of our G2 second generation programmable digital circuit. This circuit has twice the resolution of our original circuit while adding programmable overload protection. The technology doesn’t stop at the circuit board, with a high performance coreless motor, dual ball bearing supported output shaft, bushing supported gear shafts and our Heavy Duty Metal gear train the HS-7985MG was designed to withstand the stress of larger high performance aircraft and on/off road vehicles.

Features

• G2 Digital Circuit
• Coreless Motor
• Dual Ball Bearing Supported Output Shaft
• Metal Gear Train (MK first gear)

Programmable Functions*

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Overload Protection
• Resolution
• Data Save / Load
• Program Reset
  • *These features are only programmable with the HFP-20 field programmer.

Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.16 ~ 0.13
Maximum Torque Range oz. / in.: 144 ~ 172
Maximum Torque Range kg. / cm.: 10.4 ~ 12.4
Current Draw at Idle: 9 mA
No Load Operating Current Draw: 240 mA
Stall Current Draw: 3,000 mA
Dead Band Width: 1 µs

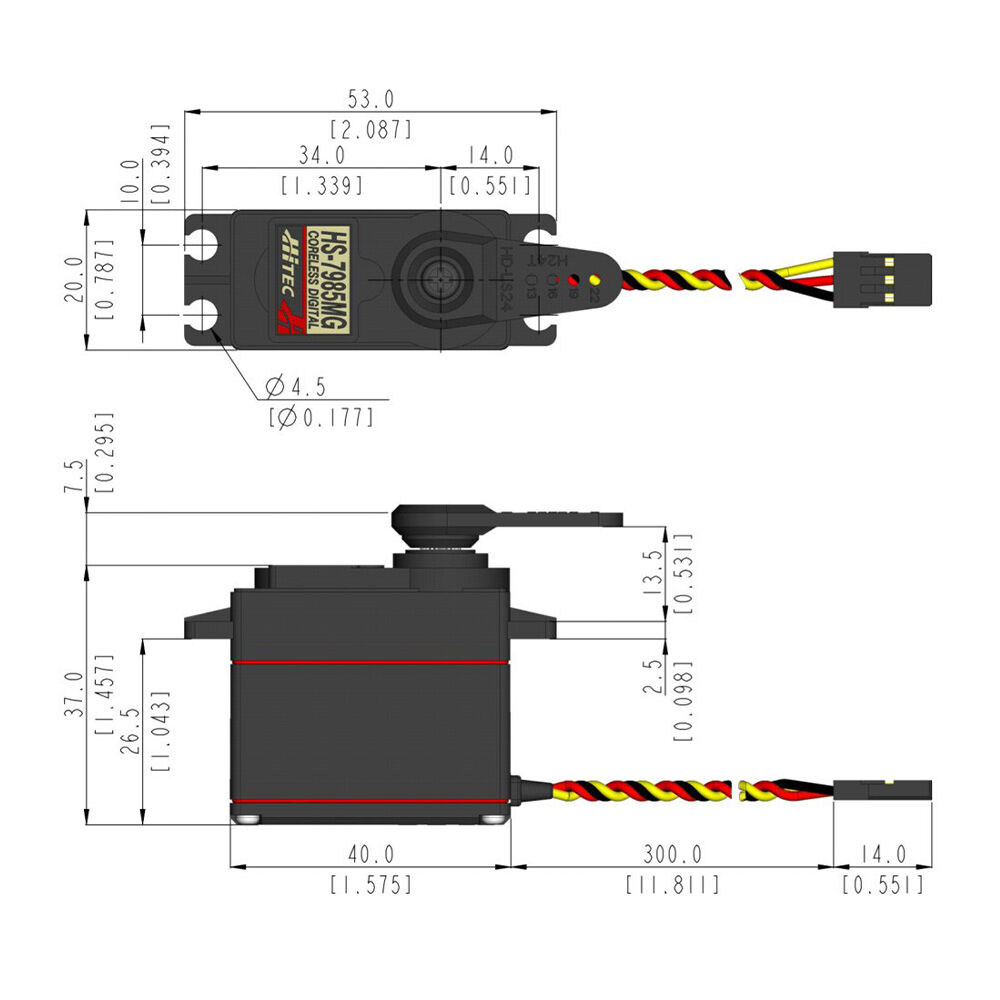

Physical Specifications
Dimensions (Inches): 1.57 x 0.78 x 1.45
Dimensions (Metric): 40.0 x 20.0 x 37.0
Weight (Ounces): 2.18
Weight (Gram): 62.0
Circuit Type: G2 Programable Digital
Motor Type: Coreless Metal Brush
Gear Material: Metal
Bearing Type: Dual Ball Bearing
Output Shaft (type / Ømm): Standard 24
Case Material: Plastic
Dust / Water Resistance: Splash Proof
Connector Gauge (AWG) / Strand Count: 22 / 60
