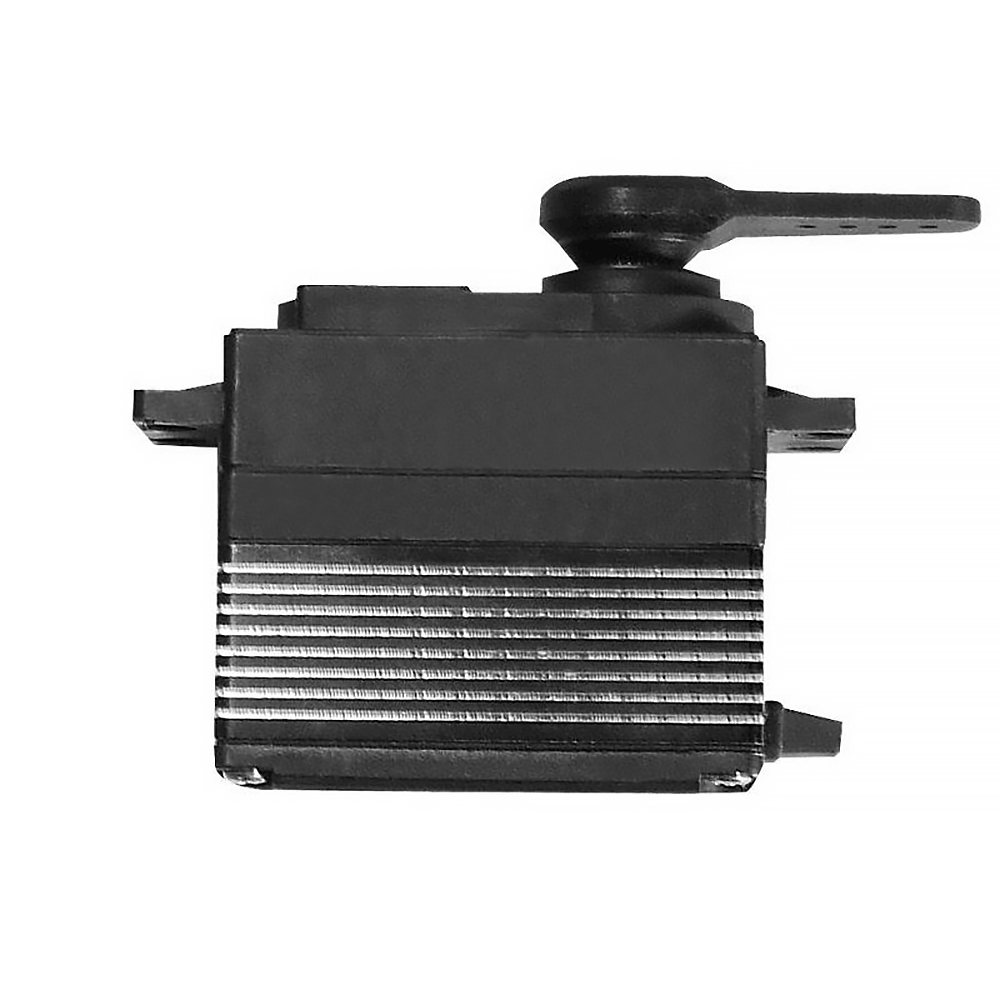

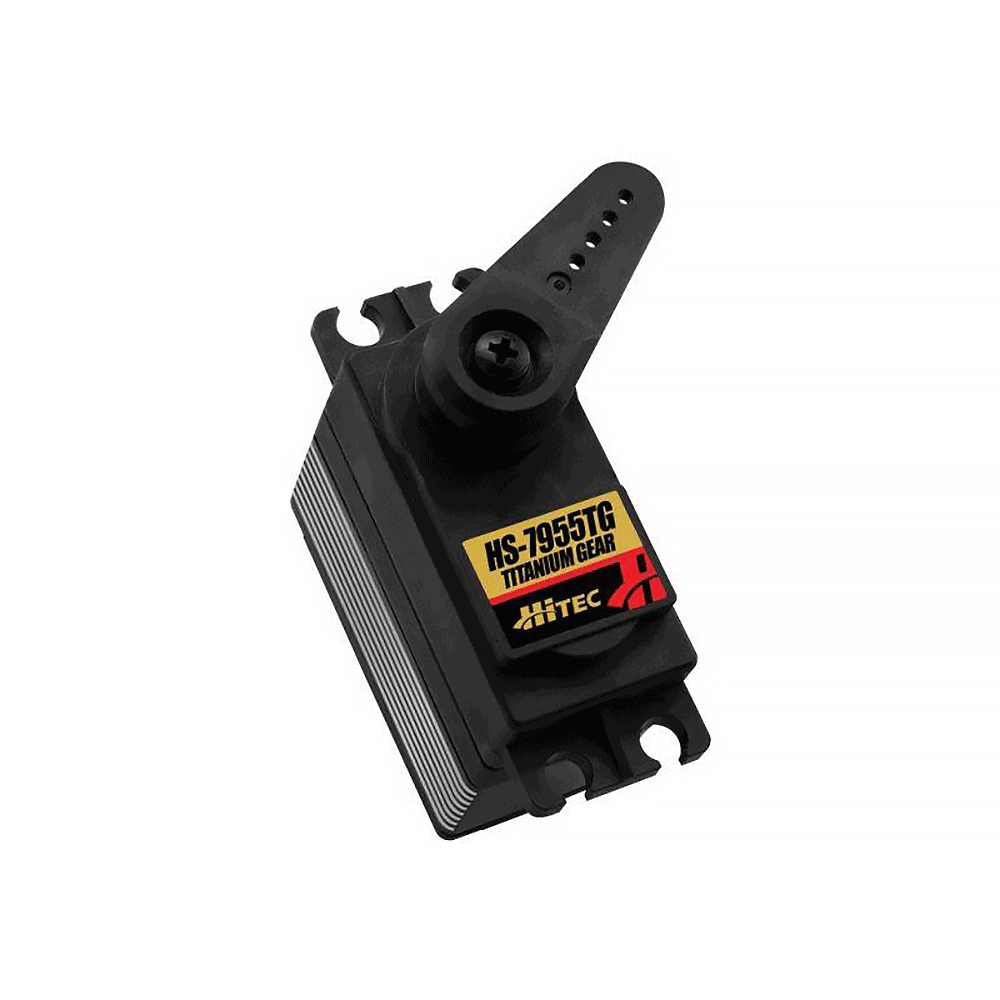

The HS-7955TG has been designed for the most demanding hobby applications including the largest aircraft and monster trucks. Featuring a titanic 333 oz./in. of torque at 6.0 volts, all this power is harnessed by incorporating the industries first Titanium gears for incredible wear resistance and two strong hardened steel gear pins and axial brass bushing in the servo case.

Features

  • G2 Digital Circuit
  • Coreless Motor
  • Dual Ball Bearing Supported Output Shaft
  • Titanium Gear Train (MK first gear)

Programmable Functions

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Overload Protection
  • Resolution
  • Data Save / Load
  • Program Reset

Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V ~ 7.4v
Speed (Second @ 60°): 0.19 ~ 0.15 ~ 0.12
Maximum Torque Range oz. / in.: 250 ~ 333 ~ 402
Maximum Torque Range kg. / cm.: 18.0 ~ 24.0 ~ 29.0
Current Draw at Idle: 9 mA
No Load Operating Current Draw: 300 mA
Stall Current Draw: 4,200 mA
Dead Band Width: 1 µs

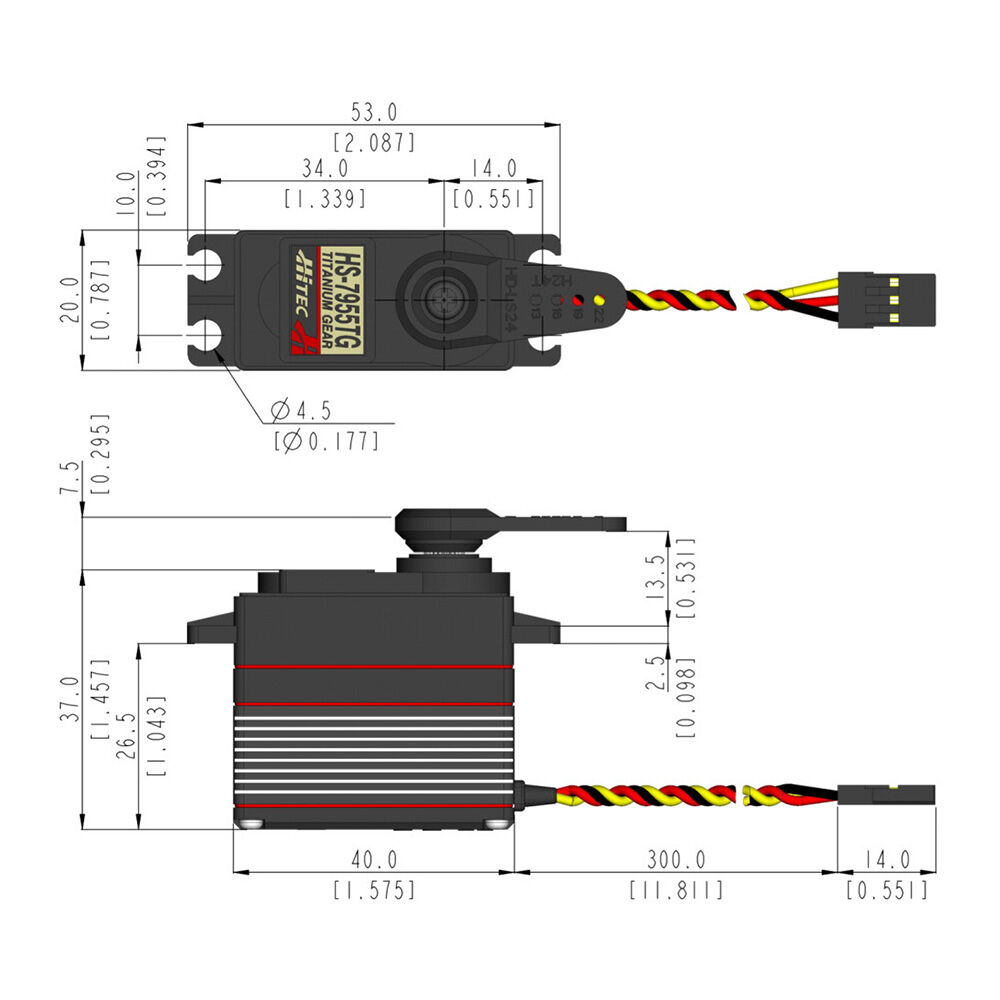

Physical Specifications
Dimensions (Inches): 1.57 x 0.78 x 1.45
Dimensions (Metric): 40.0 x 20.0 x 37.0
Weight (Ounces): 2.29
Weight (Gram): 65.0
Circuit Type: G2 Programable Digital
Motor Type: Coreless Metal Brush
Gear Material: Titanium
Bearing Type: Dual Ball Bearing
Output Shaft (type / Ømm): Standard 24
Case Material: Plastic / Aluminum
Dust / Water Resistance: Splash Proof
Connector Gauge (AWG) / Strand Count: 22 / 60

SKU HRC37955S
Barcode # 0669962379557
Brand Hitec
Shipping Weight 0.1500kg
Shipping Width 0.100m
Shipping Height 0.060m
Shipping Length 0.120m
Shipping Cubic 0.000720000m3
