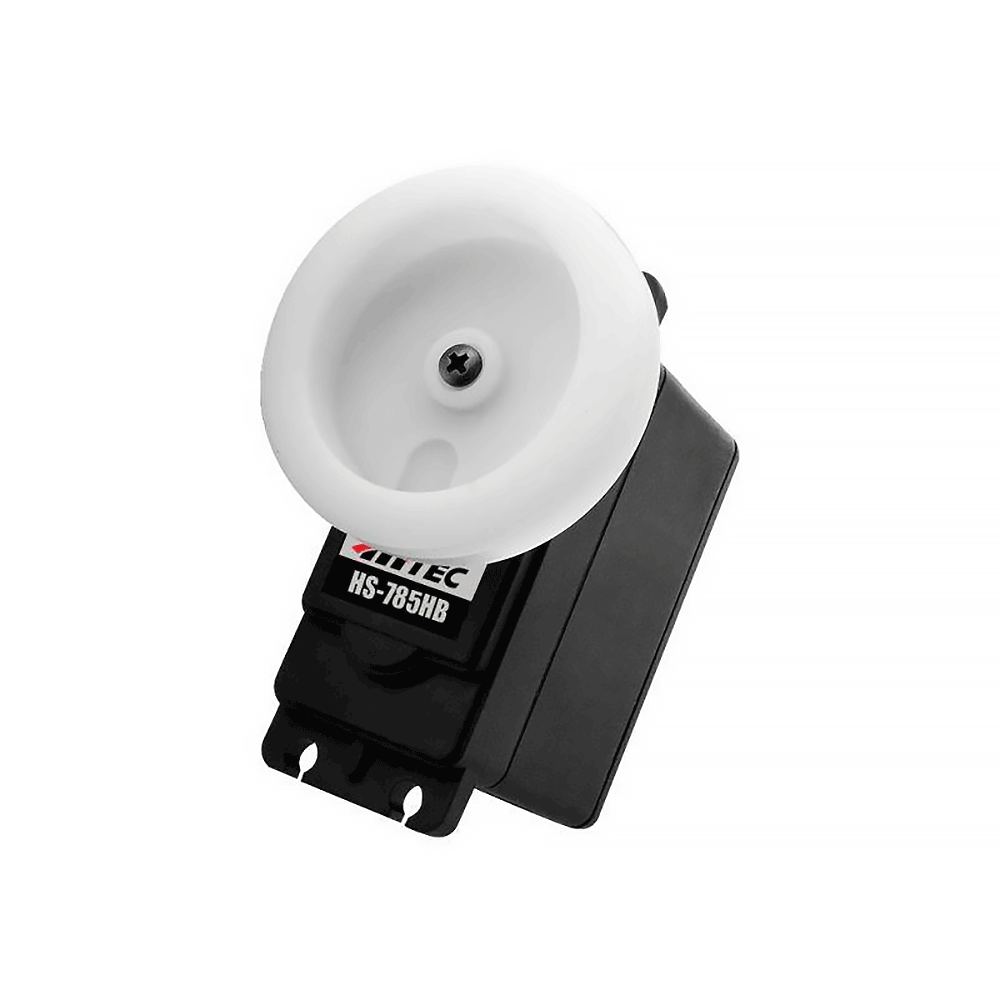

The HS-785HB sail winch servo with its large drum wheel has 3 1/2 revolutions of travel for hauling in even the largest of sails. With its dual ball bearing supported output shaft the HS-785HB will provide years of reliable service.

Features

• Large Drum Wheel with 3.5 Revolutions of Travel
• Strong Karbonite Gear Train
• Dual Ball Bearing-Supported Output Shaft
• Water and Dust-Resistant Case

Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 1.68 ~ 1.38
Maximum Torque Range oz. / in.: 153 ~ 183
Maximum Torque Range kg. / cm.: 11.0 ~ 13.2
Current Draw at Idle: 8 mA
No Load Operating Current Draw: 250 mA
Stall Current Draw: 1,800 mA
Dead Band Width: 5 µs

Physical Specifications

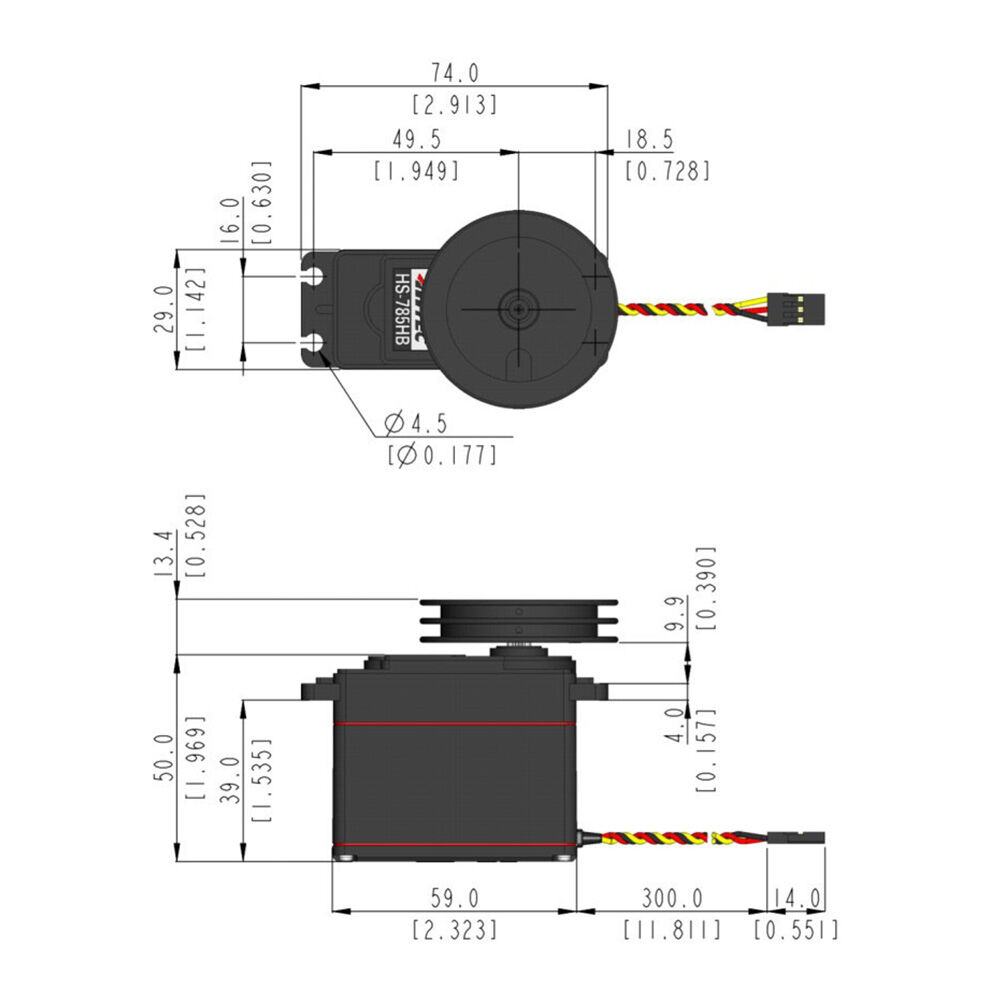

Dimensions (Inches): 2.32 x 1.14 x 1.96
Dimensions (Metric): 59.0 x 29.0 x 50.0
Weight (Ounces): 3.88
Weight (Gram): 110.0
Circuit Type: HT7003 Analog MosFet
Motor Type: 3 Pole Metal Brush Ferrite
Gear Material: Karbonite
Bearing Type: Dual Ball Bearing
Output Shaft (type / Ømm): Standard 24
Case Material: Plastic
Dust / Water Resistance: Splash Proof
Connector Gauge (AWG) / Strand Count: 22 / 60
