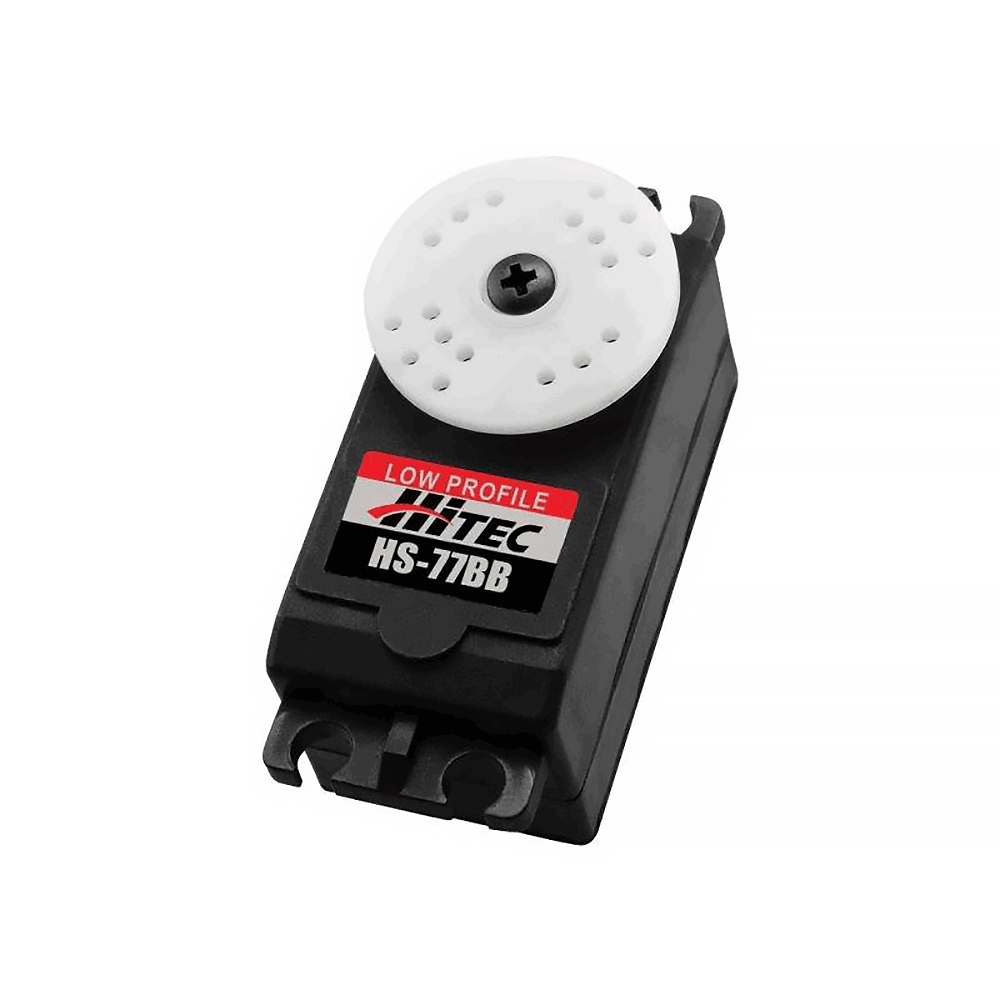

With its low profile design and strong standing torque, the HS-77BB is a great choice for wing or tail mounting in aircrafts up to 1.20 size. Submarines, boats, cars and trucks can also benefit from this servo’s strength and compact size.

Features

  • Low Profile Compact Design
  • High Torque Three-Pole Ferrite Motor
  • Durable Nylon Gears
  • Top Ball Bearings

Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.18 ~ 0.14
Maximum Torque Range oz. / in.: 61 ~ 76
Maximum Torque Range kg. / cm.: 4.4 ~ 5.5
Current Draw at Idle: 8 mA
No Load Operating Current Draw: 250 mA
Stall Current Draw: 800 mA
Dead Band Width: 8 µs

Physical Specifications

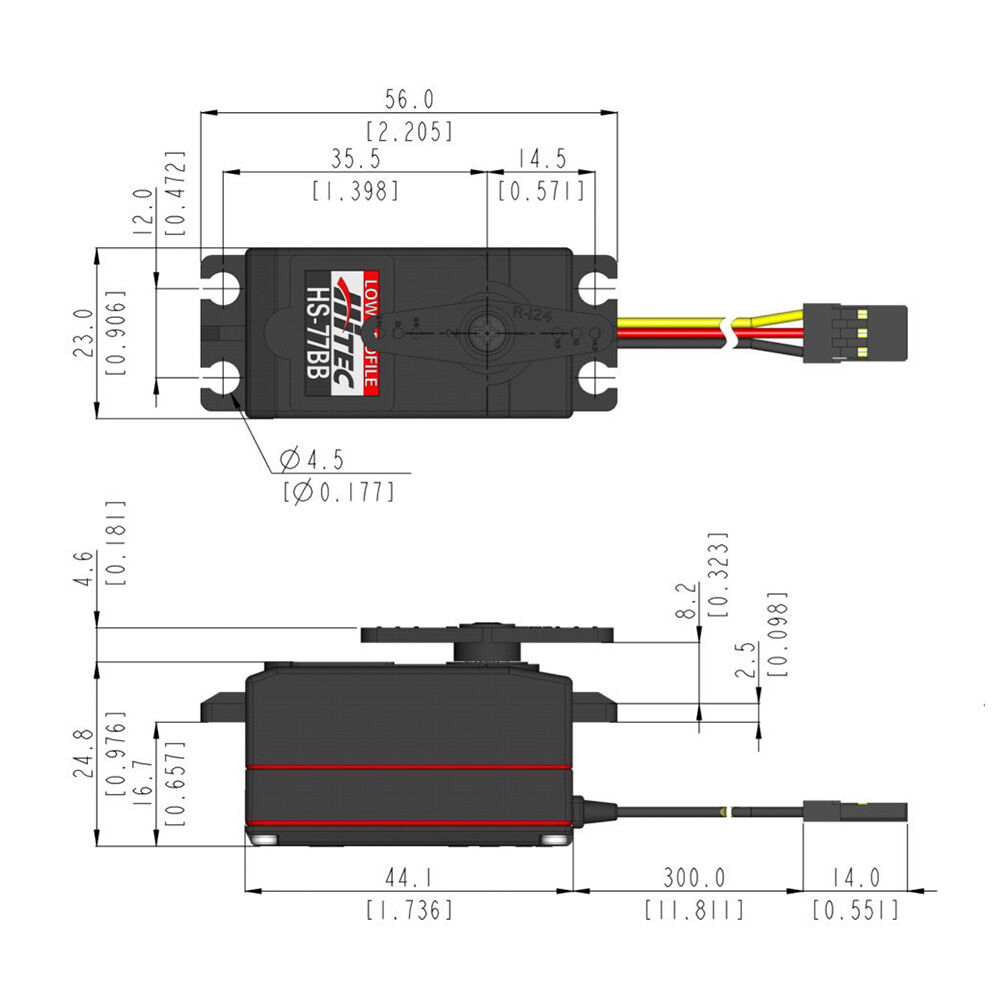

Dimensions (Inches): 1.73 x 0.90 x 0.98
Dimensions (Metric): 44.0 x 23.0 x 25.0
Weight (Ounces): 1.23
Weight (Gram): 35.0
Circuit Type: HT7003 Analog SMT
Motor Type: 3 Pole Metal Brush Ferrite
Gear Material: Nylon
Bearing Type: Top Ball Bearing
Output Shaft (type / Ømm): Standard 24
Case Material: Plastic
Dust / Water Resistance: Splash Proof
Connector Gauge (AWG) / Strand Count: 25 / 40

SKU HRC31077S
Barcode # 0669962310123
Brand Hitec
Shipping Weight 0.1000kg
Shipping Width 0.070m
Shipping Height 0.060m
Shipping Length 0.080m
Shipping Cubic 0.000336000m3
