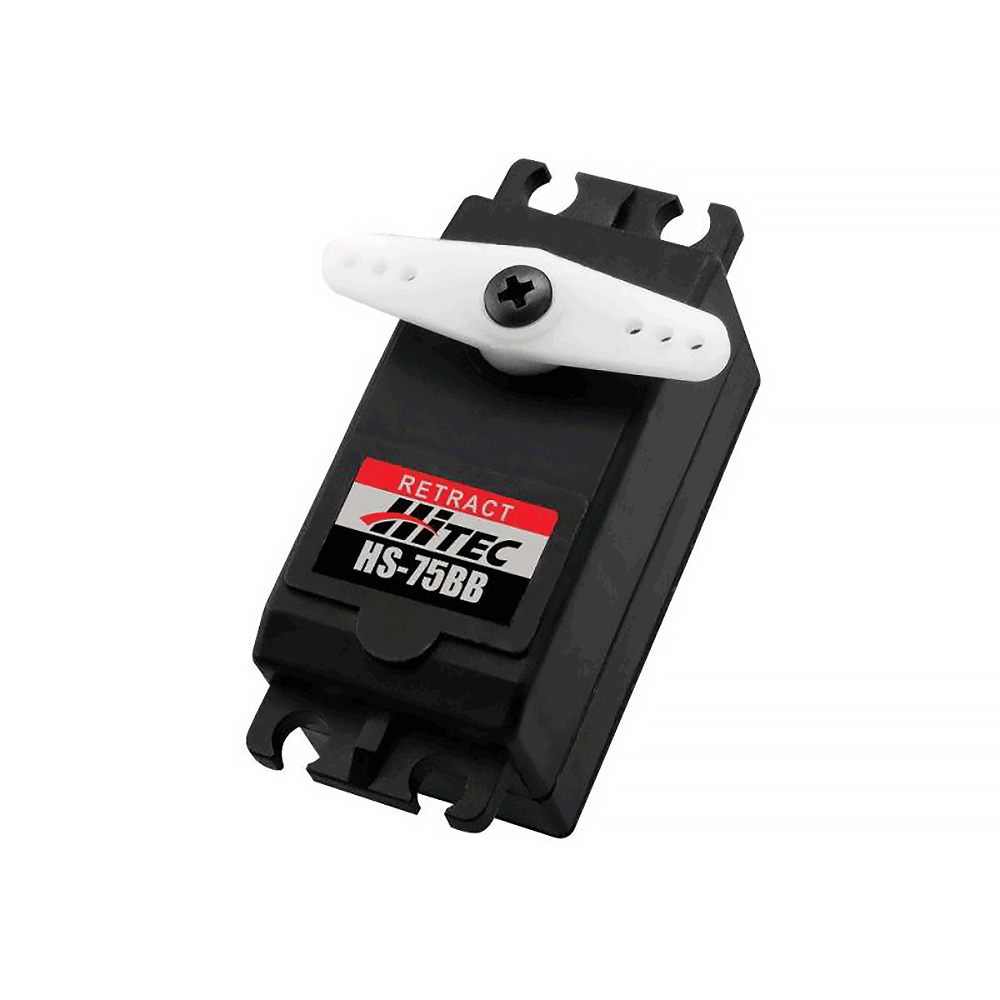

With its low profile design, strong torque and precision movement, the HS-75BB is a great choice to move your retract gear in a realistic manner that you need. Note, this is a retract or “bang bang” servo and only travels from one end to the other (180 degrees). If you require a proportional servo this size, use the Hitec HS-77BB.

Features

  • Low Profile Design
  • Durable Nylon Gears
  • Top Ball Bearings
  • Strong Torque and Precise Movement
  • Slow Speed for Realistic Retract Action

Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.45 ~ 0.34
Maximum Torque Range oz. / in.: 92 ~ 114
Maximum Torque Range kg. / cm.: 6.6 ~ 8.2
Current Draw at Idle: 1 mA
No Load Operating Current Draw: 150 mA
Stall Current Draw: 1,000 mA
Dead Band Width: 20 µs

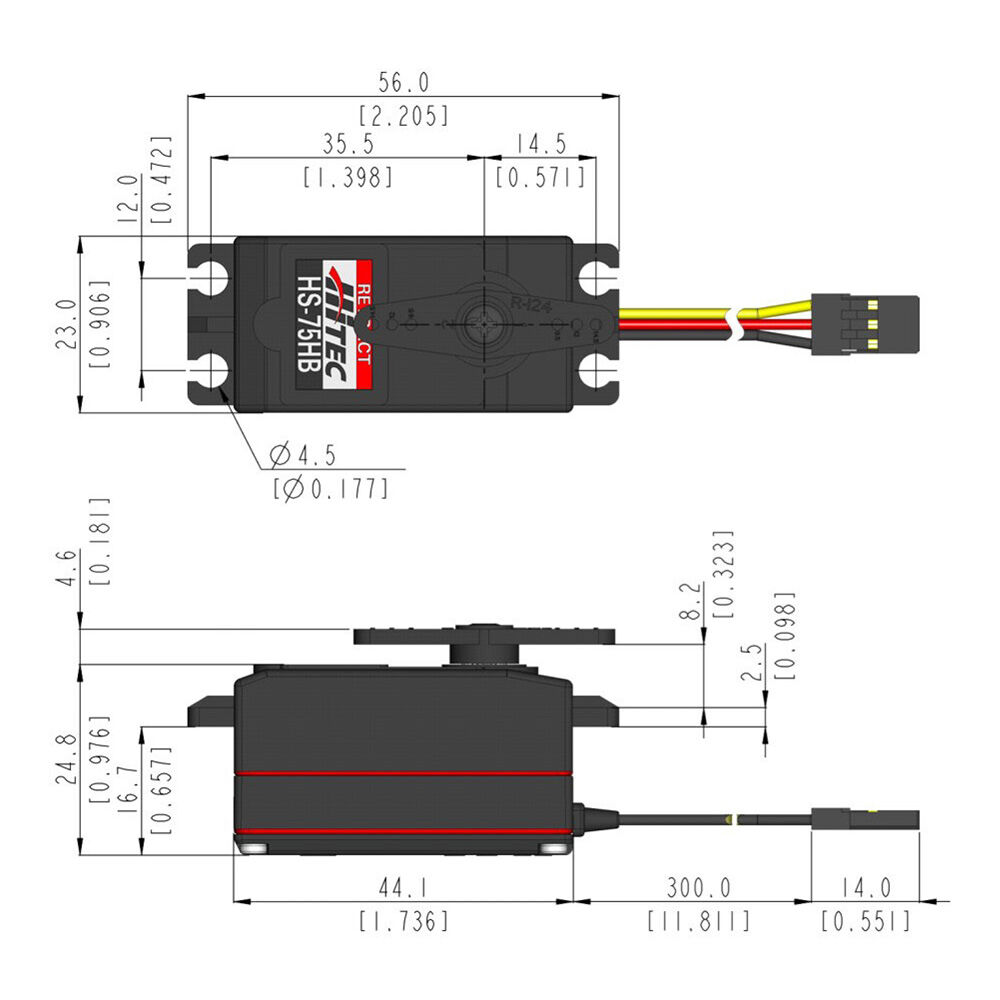

Physical Specifications
Dimensions (Inches): 1.73 x 0.90 x 0.98
Dimensions (Metric): 44.0 x 23.0 x 25.0
Weight (Ounces): 1.23
Weight (Gram): 35.0
Circuit Type: HT7003 Analog SMT
Motor Type: 3 Pole Metal Brush Ferrite
Gear Material: Nylon
Bearing Type: Top Ball Bearing
Output Shaft (type / Ømm): Standard 24
Case Material: Plastic
Dust / Water Resistance: Splash Proof
Connector Gauge (AWG) / Strand Count: 25 / 40

SKU HRC31075S
Barcode # 0669962310093
Brand Hitec
Shipping Weight 0.1000kg
Shipping Width 0.070m
Shipping Height 0.060m
Shipping Length 0.080m
Shipping Cubic 0.000336000m3
