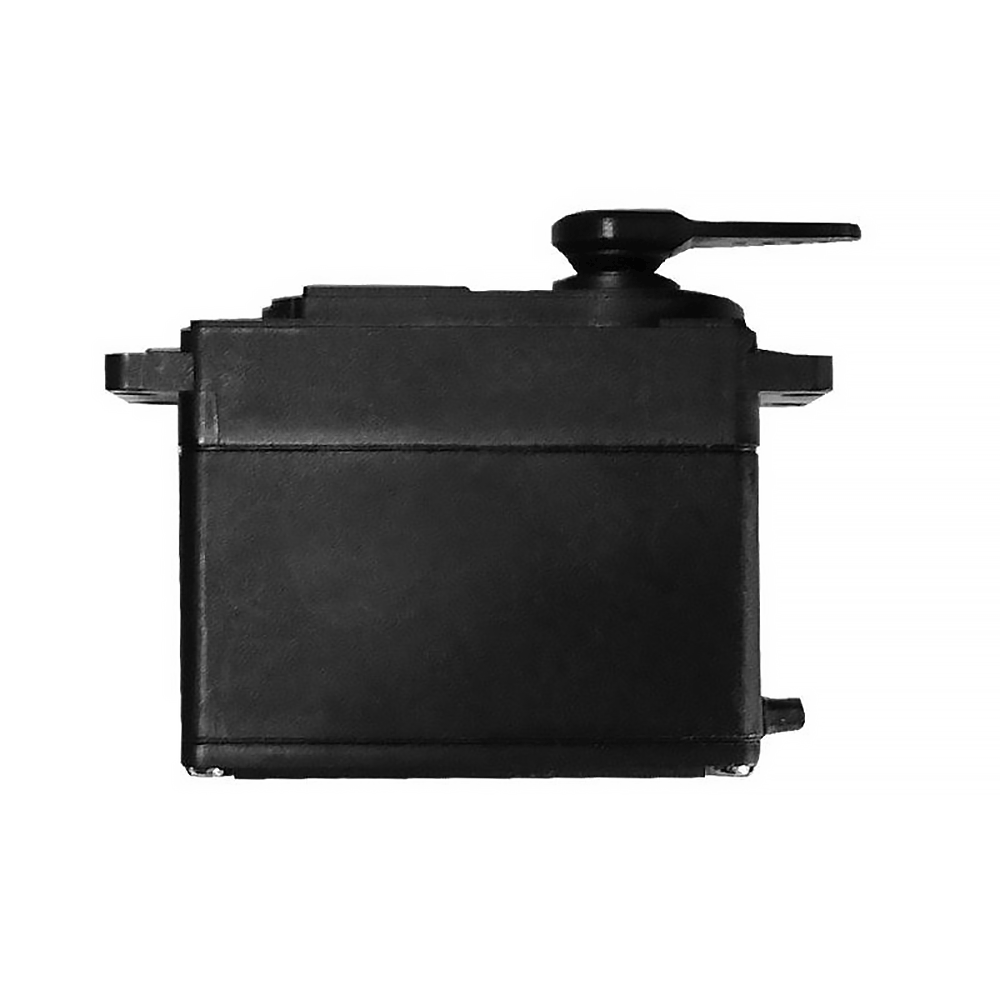

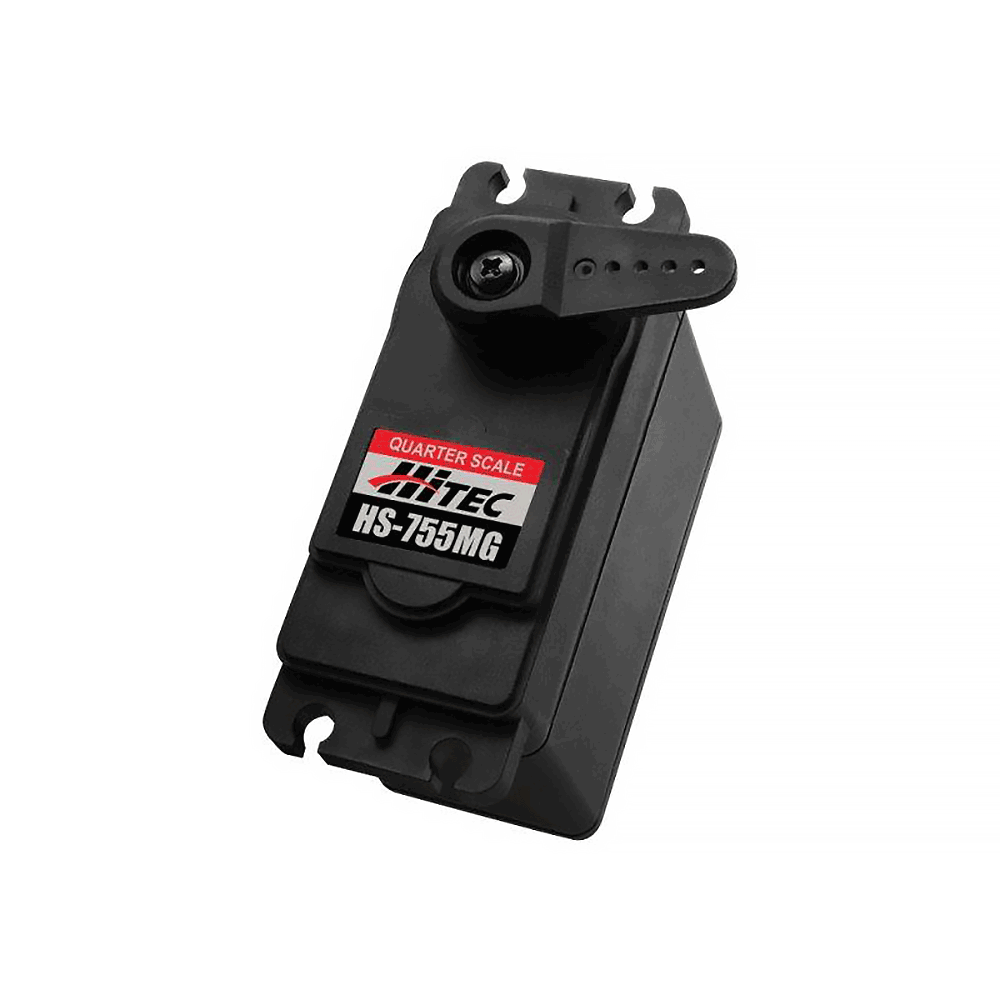

Hitec’s expansive line-up of servos include the HS-755MG and HS-755HB “giant scale” servos offered with either the revolutionary Karbonite™ gears or metal gears. Both are perfect for larger R/C applications and feature dual ball bearings with a water and dust resistant case. The powerful HS-755MG delivers a whopping 200 oz./in. of torque and the HS-755MG delivers 200 oz./in. of torque at 6 volts.

Features

• Economical Choice in a Giant, Metal Gear Analog Servo
• Durable Three-Pole Ferrite Motor
• Durable Metal Gears
• Dual Ball Bearings
• Water and Dust-Resistant Case

Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.28 ~ 0.23
Maximum Torque Range oz. / in.: 167 ~ 200
Maximum Torque Range kg. / cm.: 12.0 ~ 14.4
Current Draw at Idle: 8 mA
No Load Operating Current Draw: 250 mA
Stall Current Draw: 1,800 mA
Dead Band Width: 5 µs

Physical Specifications

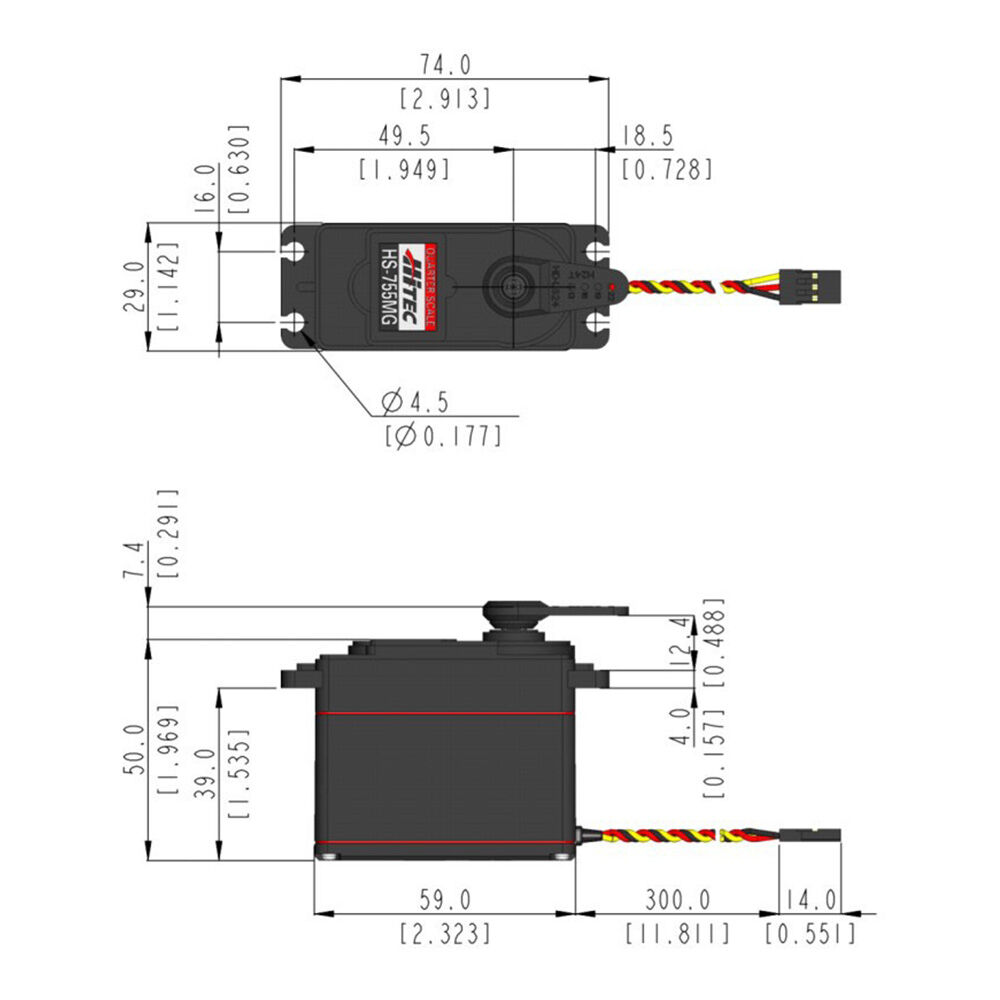

Dimensions (Inches): 2.32 x 1.14 x 1.96
Dimensions (Metric): 59.0 x 29.0 x 50.0
Weight (Ounces): 4.12
Weight (Gram): 117.0
Circuit Type: HT7003 Analog MosFet
Motor Type: 3 Pole Metal Brush Ferrite
Gear Material: Metal
Bearing Type: Dual Ball Bearing
Output Shaft (type / Ømm): Standard 24
Case Material: Plastic
Dust / Water Resistance: Splash Proof
Connector Gauge (AWG) / Strand Count: 22 / 60
