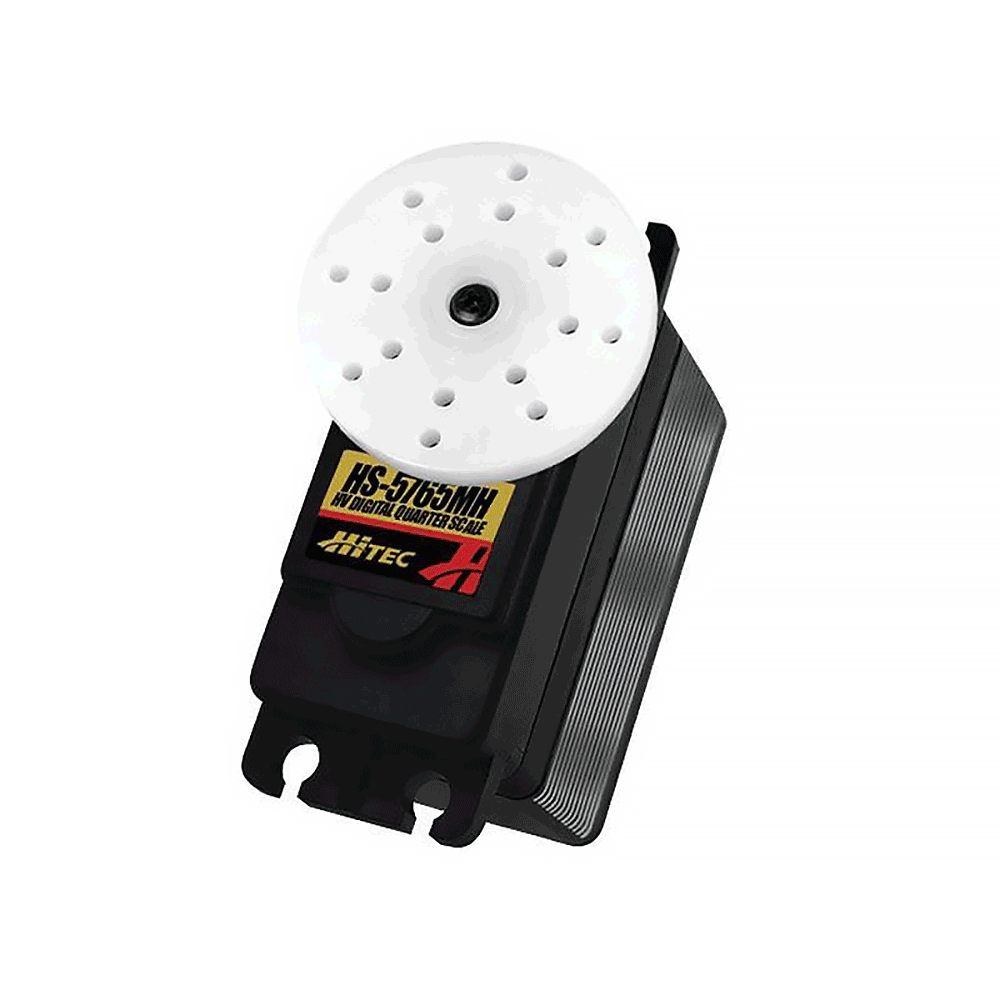

When it comes to your big RC projects, size does matter - that’s why Hitec engineered the HS-5765MH. This high voltage cousin of our popular HS-5755MG is 2-cell LiPo (7.4V) capable and features heavy duty, metal gears with a 10mm output shaft for the strength you need for the most demanding large scale applications. With 347 oz-in torque, our giant HS-5765MH is tough enough to tackle your biggest RC projects from 1/5thon and off-road vehicles to large high-powered boats and giant scale aircraft!

Features

• Large 10mm Output shaft
• Triple Ball Bearings
• Heavy Duty Metal Gear Train
• Water and Dust Resistant Case

Programmable Functions

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Data Save / Load
• Program Reset

Performance Specifications
Operating Voltage Range (Volts DC): 6.0V ~ 7.4V
Speed (Second @ 60°): 0.16 ~ 0.13
Maximum Torque Range oz. / in.: 278 ~ 347
Maximum Torque Range kg. / cm.: 20.0 ~ 25.0
Current Draw at Idle: 3 mA
No Load Operating Current Draw: 1,100 mA
Stall Current Draw: 5,800 mA
Dead Band Width: 5 µs

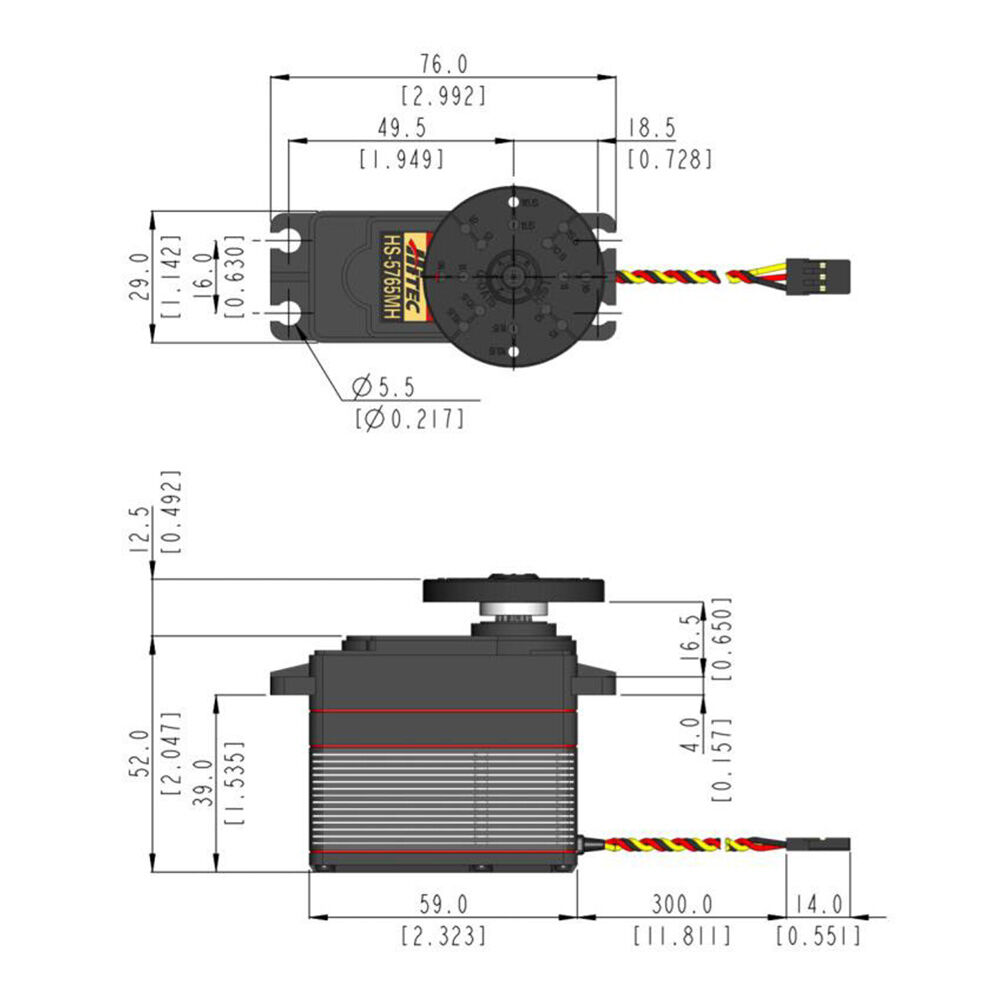

Physical Specifications
Dimensions (Inches): 2.32 x 1.14 x 2.04
Dimensions (Metric): 59.0 x 29.0 x 52.0
Weight (Ounces): 6.07
Weight (Gram): 172.3
Circuit Type: G1 Programable Digital
Motor Type: 3 Pole Metal Brush Ferrite
Gear Material: Metal
Bearing Type: Triple Ball Bearing
Output Shaft (type / Ømm): Mega 15
Case Material: Plastic / Aluminum
Dust / Water Resistance: Splash Proof
Connector Gauge (AWG) / Strand Count: 22 / 60
