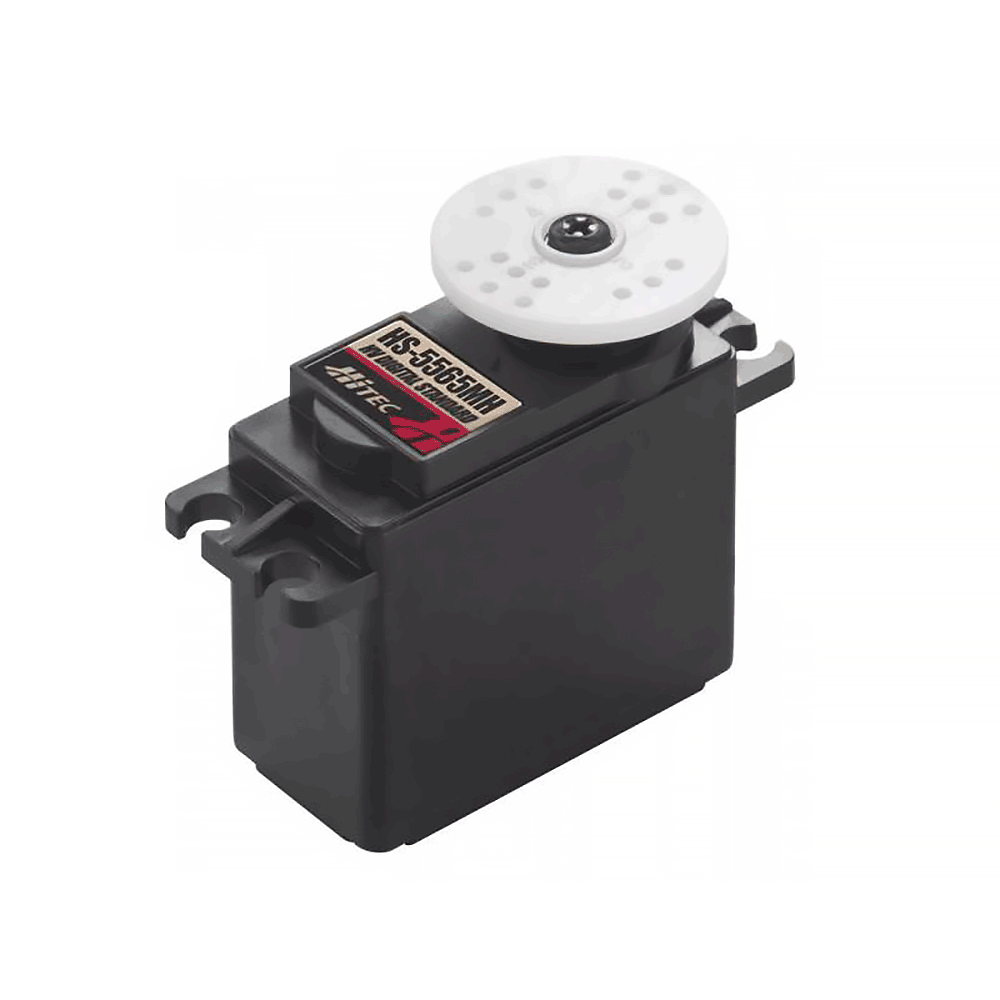

Increase your performance not your budget with the high voltage, high speed, digital HS-5565MH. Featuring a high performance coreless motor, heavy-duty metal gears and dual ball bearings, the HS-5565MH is rated for  7.4 volt, 2S LiPo operation The HS-5565MH brings lightning speed and acceleration to your 1/10th scale touring cars, buggies and short course vehicles, helicopters up to .90-size and sport to high performance aircraft up to 25 percent.

Features

• Our Most Economically Priced High Speed Digital Coreless Servo
• Quick and Precise Coreless Motor
• Heavy Duty Metal Gears
• 7.4v 2-Cell LiPo Capability
• Standard Programmable Digital Circuit

Programmable Functions

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Data Save / Load
• Program Reset

Performance Specifications
Operating Voltage Range (Volts DC): 6.0V ~ 7.4V
Speed (Second @ 60°): 0.11 ~ 0.09
Maximum Torque Range oz. / in.: 153 ~ 194
Maximum Torque Range kg. / cm.: 11 ~ 14
Current Draw at Idle: 4 mA
No Load Operating Current Draw: 300 mA
Stall Current Draw: 2,700 mA
Dead Band Width: 2 µs

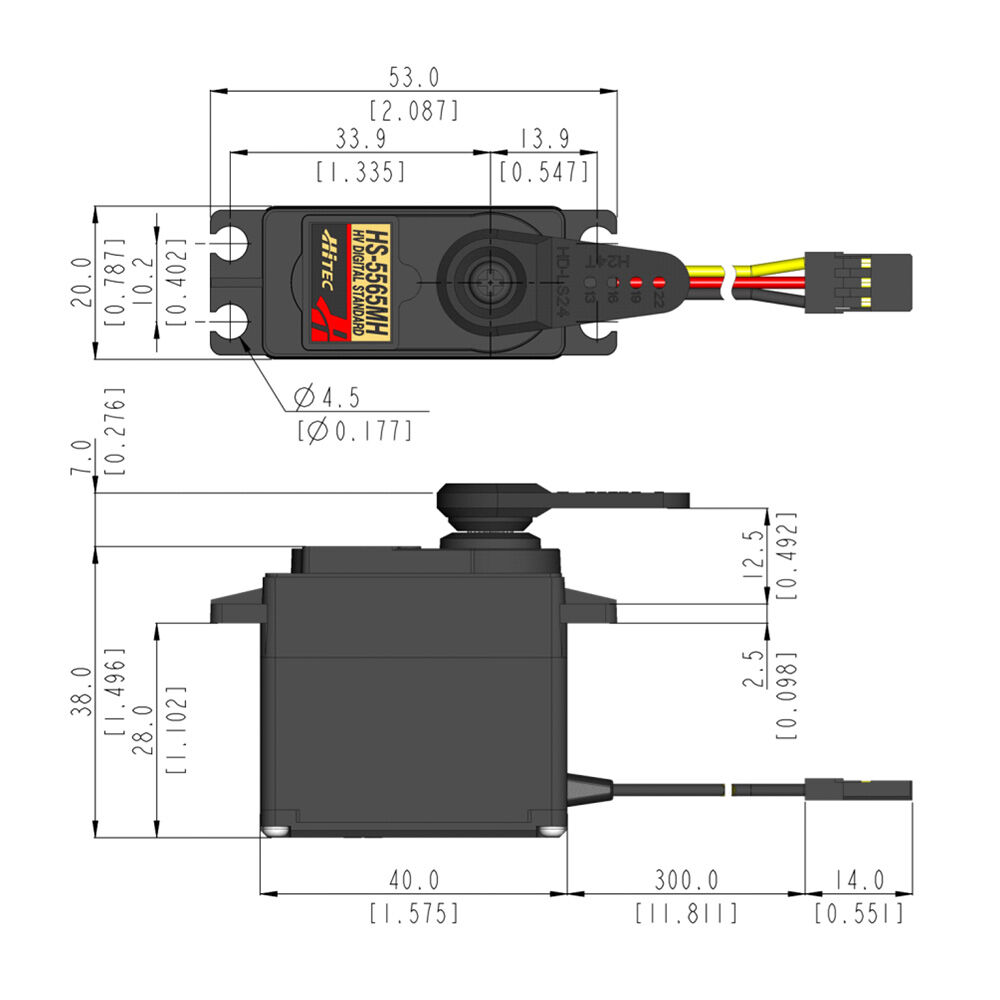

Physical Specifications
Dimensions (Inches): 1.57 x 0.78 x 1.49
Dimensions (Metric): 39.8 x 19.8 x 37.8
Weight (Ounces): 2.10
Weight (Gram): 60.0
Circuit Type: G1 Programable Digital
Motor Type: Coreless Metal Brush
Gear Material: Metal
Bearing Type: Dual Ball Bearing
Output Shaft (type / Ømm): Standard 24
Case Material: Plastic
Dust / Water Resistance: N / A
Connector Gauge (AWG) / Strand Count: 25 / 40
