The HS-55 set the standard for affordable performance, offering precision components that have been engineered to provide long lasting trouble free service! Featured in a hundred model aircraft reviews worldwide, the HS-55 is your best choice when it comes to controlling ”smaller” Electric’s and Park Flyers.

Features

  • Affordable Performance
  • Precision Components
  • Strong, Long-Lasting Nylon Gears
  • Market's Most Reliable Micro Servo
  • Most Popular Servo

Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.17 ~ 0.14
Maximum Torque Range oz. / in.: 15 ~ 18
Maximum Torque Range kg. / cm.: 1.1 ~ 1.3
Current Draw at Idle: 5.5 mA
No Load Operating Current Draw: 150 mA
Stall Current Draw: 450 mA
Dead Band Width: 8 µs

Physical Specifications

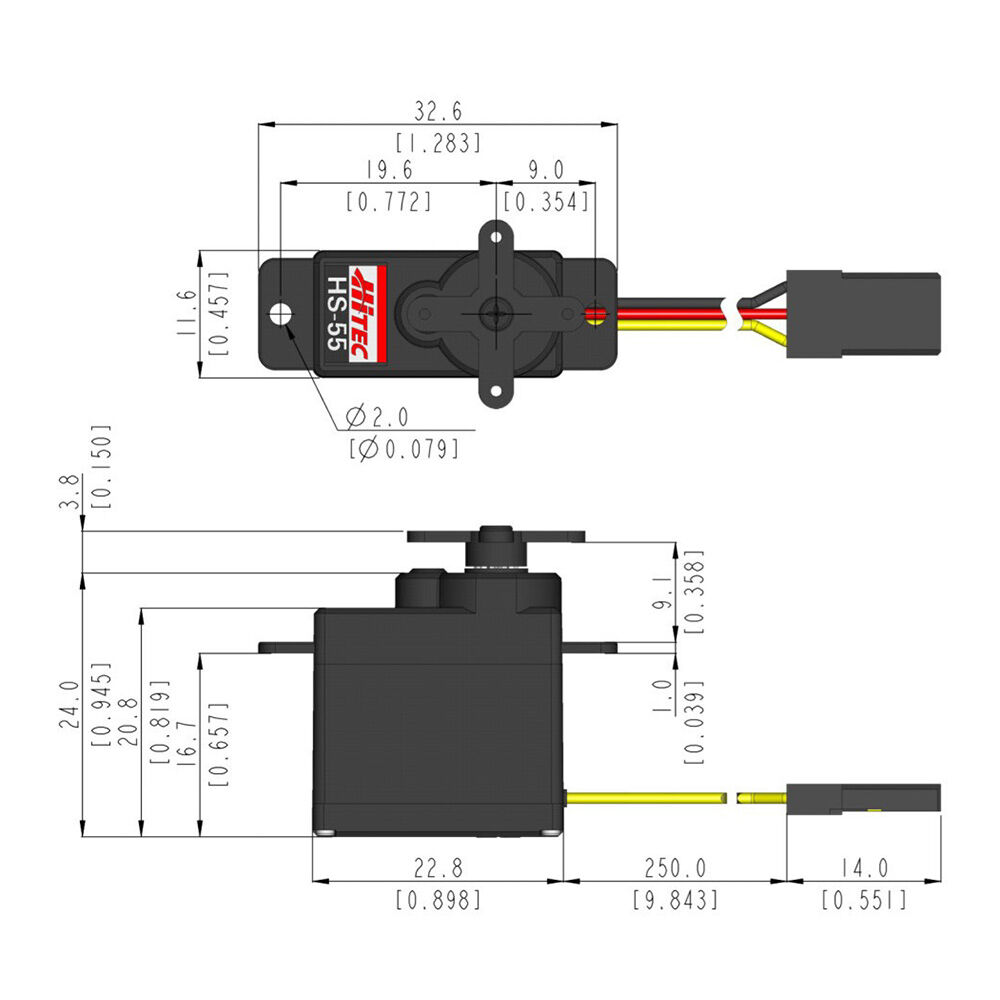

Dimensions (Inches): 0.89 x 0.45 x 0.94
Dimensions (Metric): 22.8 x 11.6 x 24.0
Weight (Ounces): 0.28
Weight (Gram): 8.0
Circuit Type: HT7003 Analog SMT
Motor Type: Coreless Metal Brush
Gear Material: Nylon
Bearing Type: None
Output Shaft (type / Ømm): Feather 15 / 8
Case Material: Plastic
Dust / Water Resistance: N / A
Connector Gauge (AWG) / Strand Count: 28 / 20

SKU HRC31055S
Barcode # 0669962320399
Brand Hitec
Shipping Weight 0.0500kg
Shipping Width 0.070m
Shipping Height 0.040m
Shipping Length 0.080m
Shipping Cubic 0.000224000m3
