At Hitec, we believe in developing the highest quality servos in the market at an affordable price. That philosophy stands true with the economical HS-5496MH metal gear digital sport servo. Based on the popular HS-5485HB, the HS-5496MH is the perfect match for match for sport airplanes up to 25% scale as well as sport cars and trucks. With 7.4 volt, 2-cell LiPo battery capability, The HS-5496MH delivers the power you need at a price you can feel good about! Trust your hobby to Hitec.

Programmable Functions

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Data Save / Load
  • Program Reset

Performance Specifications
Operating Voltage Range (Volts DC): 6.0V ~ 7.4V
Speed (Second @ 60°): 0.17 ~ 0.15
Maximum Torque Range oz. / in.: 89 ~ 104
Maximum Torque Range kg. / cm.: 6.4 ~ 7.5
Current Draw at Idle: 12 mA
No Load Operating Current Draw: 190 mA
Stall Current Draw: 1,400 mA
Dead Band Width: 4 µs

Physical Specifications

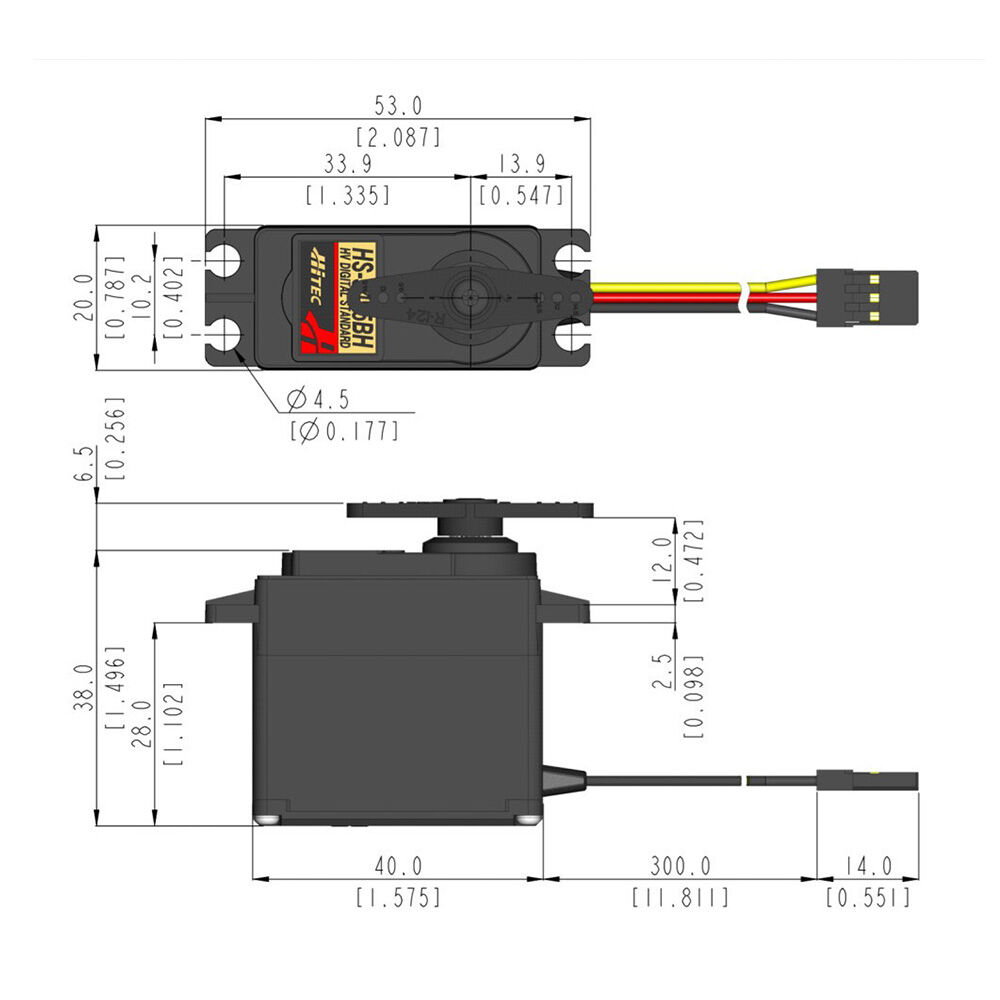

Dimensions (Inches): 1.57 x 0.78 x 1.49
Dimensions (Metric): 39.8 x 19.8 x 38.0
Weight (Ounces): 1.84
Weight (Gram): 52.0
Circuit Type: G1 Programable Digital
Motor Type: 3 Pole Metal Brush Ferrite
Gear Material: Metal
Bearing Type: Top Ball Bearing
Output Shaft (type / Ømm): Standard 24
Case Material: Plastic
Dust / Water Resistance: N / A
Connector Gauge (AWG) / Strand Count: 25 / 40

SKU HRC35495S
Barcode # 0669962354950
Brand Hitec
Shipping Weight 0.0800kg
Shipping Width 0.070m
Shipping Height 0.060m
Shipping Length 0.080m
Shipping Cubic 0.000336000m3
