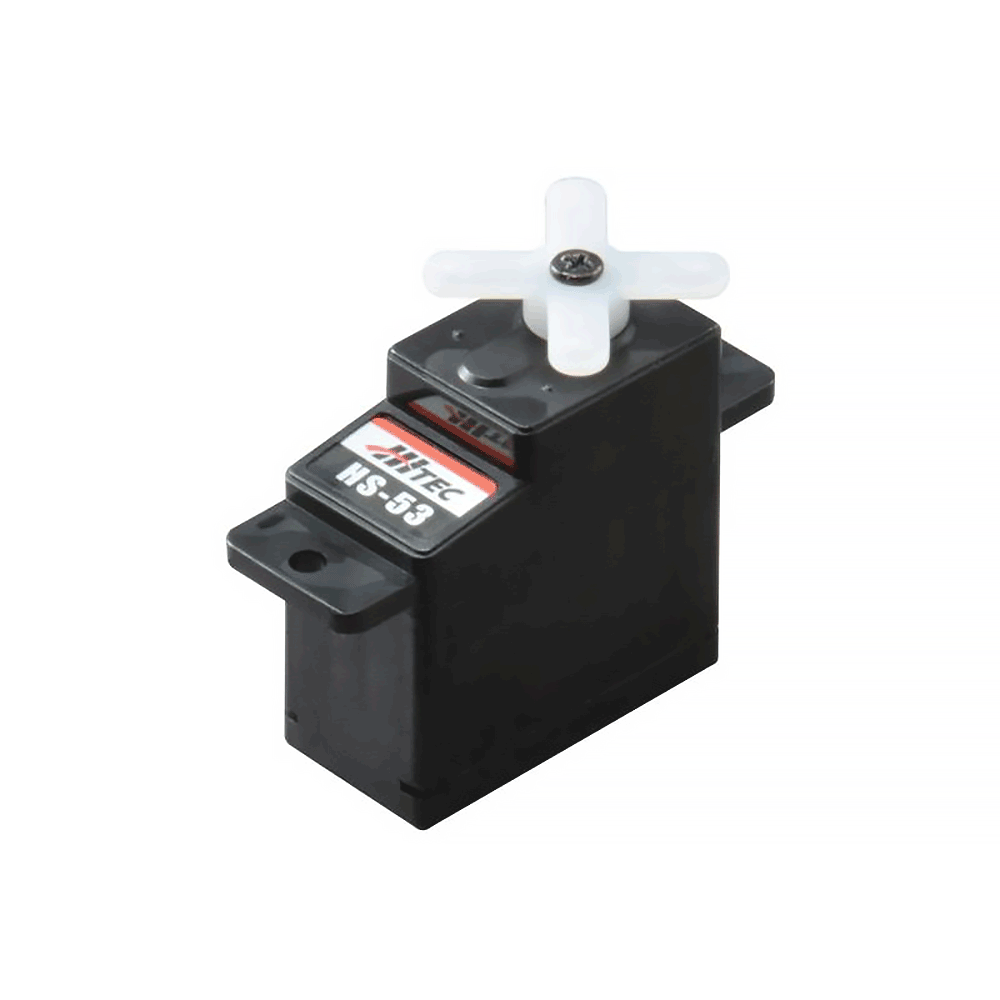

The HS-53 is our economical, feather servo designed to compete head to head with the influx of low cost servos while still maintaining Hitec’s renowned quality. Designed with a durable nylon gear train and an efficient three-pole cored motor, this light-weight servo is a terrific fit for small power planes and gliders. Priced right, it is sure to become a universal favorite!

Features

• Durable Nylon Gears
• Three-Pole Cored Motor
• Feather-Weight
• Economically Priced

Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.16 ~ 0.13
Maximum Torque Range oz. / in.: 16.7 ~ 20.8
Maximum Torque Range kg. / cm.: 1.2 ~ 1.5
Current Draw at Idle: 10 mA
No Load Operating Current Draw: 125 mA
Stall Current Draw: 550 mA
Dead Band Width: 5 µs

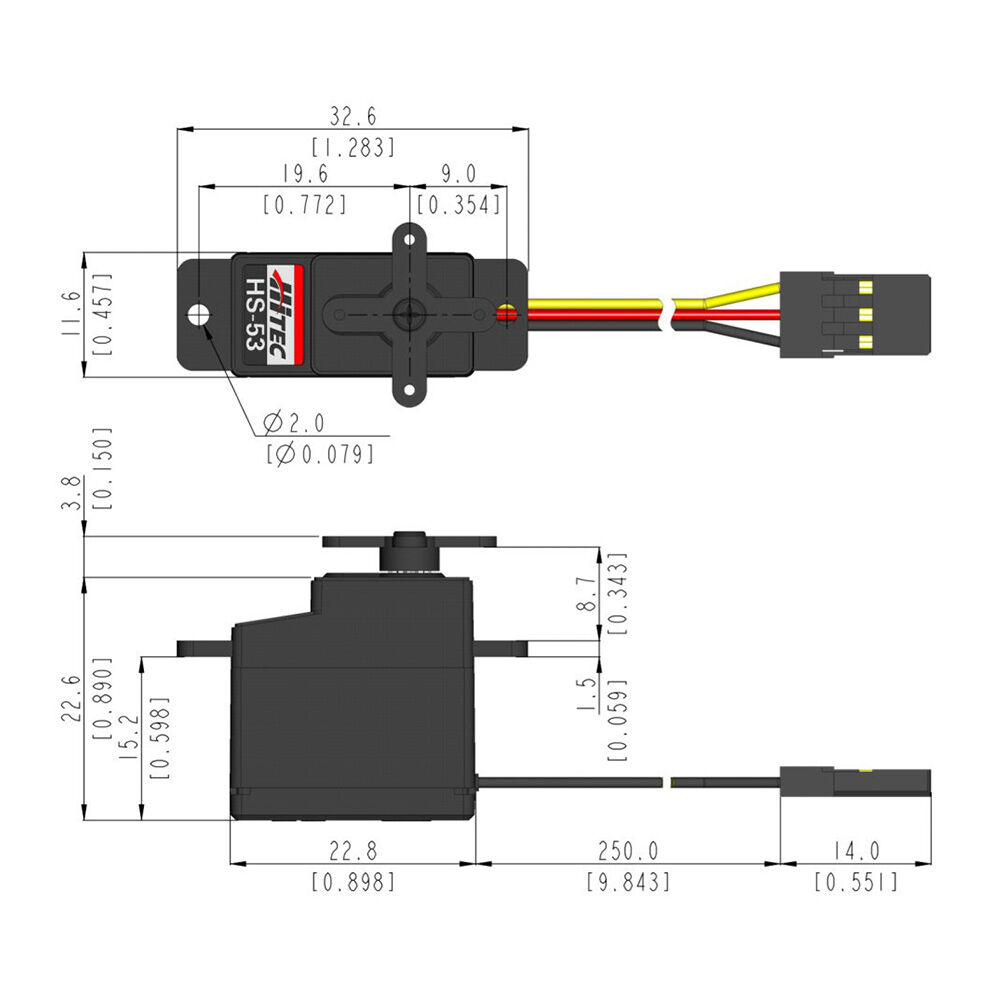

Physical Specifications
Dimensions (Inches): 1.12 x 0.46 x 0.95
Dimensions (Metric): 28.6 x 11.6 x 24.1
Weight (Ounces): 0.28
Weight (Gram): 8.0
Circuit Type: HT7003 Analog SMT
Motor Type: Cored Metal Brush
Gear Material: Nylon
Bearing Type: None
Output Shaft (type / Ømm): Feather 15 / 8
Case Material: Plastic
Dust / Water Resistance: N / A
Connector Gauge (AWG) / Strand Count: 28 / 20
