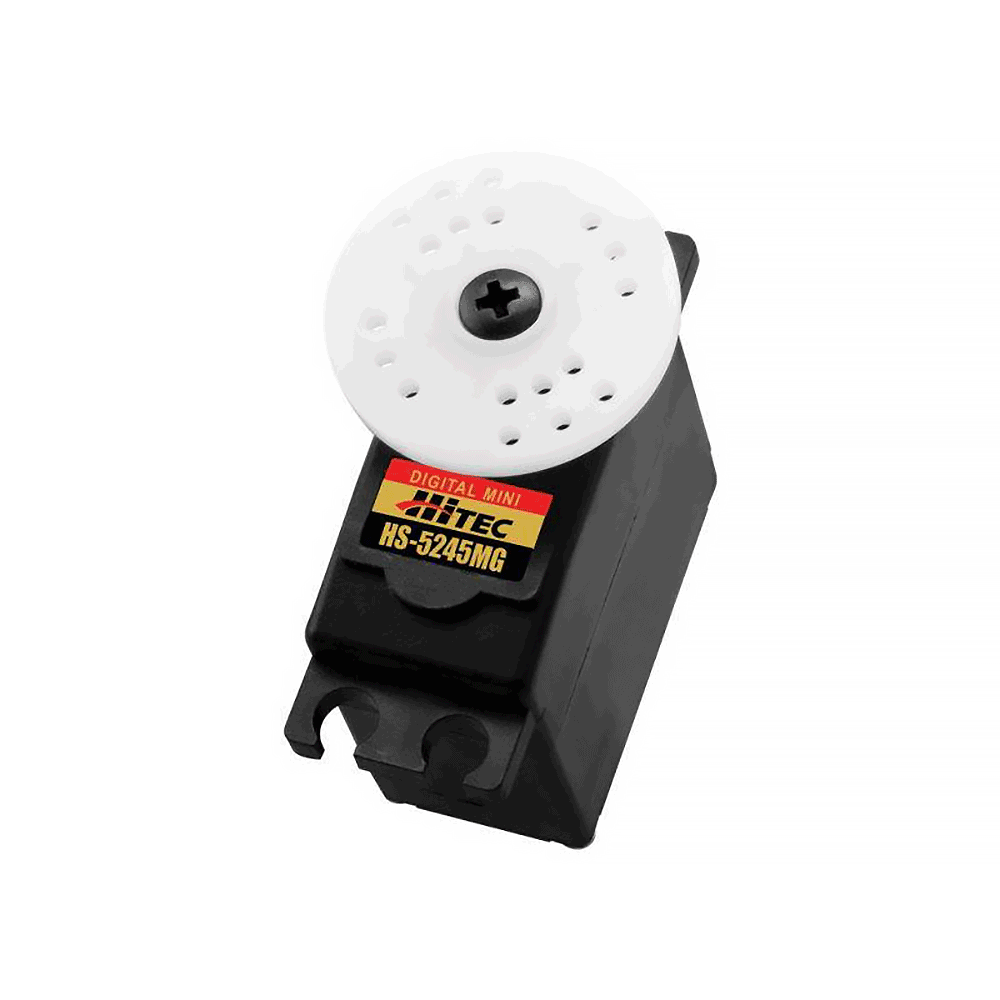

With a custom programmable digital circuit and our strong metal and M/P gear train technology, the HS-5245MG is ideal for applications that call for a small, lightweight, fast and high torque servo.

Features

  • High Speed and High Torque in a Mini Package
  • Durable Metal Gears
  • Dual Ball Bearings
  • Standard Programmable Digital Circuit for Greater Holding Power
  • Fast, High Torque

Programmable Functions

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Data Save / Load
  • Program Reset

Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.15 ~ 0.12
Maximum Torque Range oz. / in.: 61 ~ 76
Maximum Torque Range kg. / cm.: 4.4 ~ 5.5
Current Draw at Idle: 3 mA
No Load Operating Current Draw: 300 mA
Stall Current Draw: 1,200 mA
Dead Band Width: 4 µs

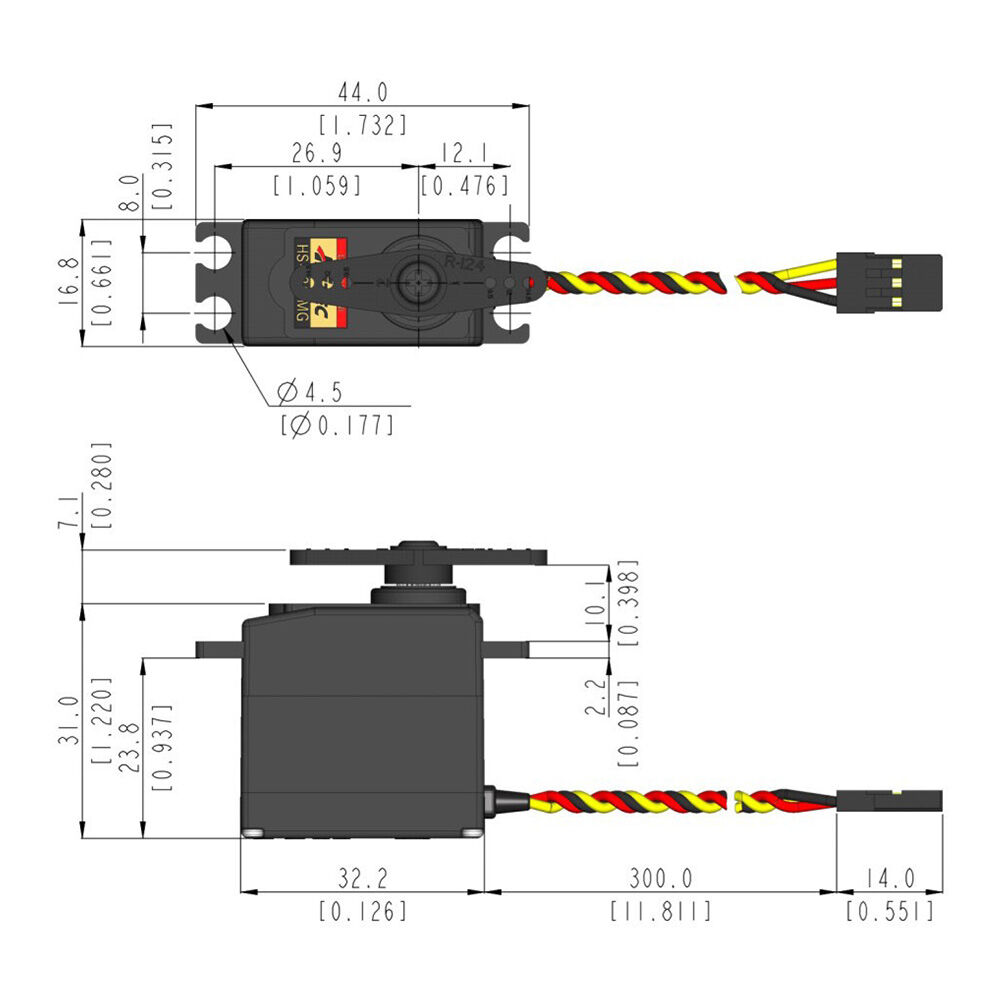

Physical Specifications
Dimensions (Inches): 1.27 x 0.66 x 1.21
Dimensions (Metric): 32.4 x 16.8 x 30.8
Weight (Ounces): 1.12
Weight (Gram): 32.0
Circuit Type: G1 Programable Digital
Motor Type: 3 Pole Metal Brush Ferrite
Gear Material: Metal
Bearing Type: Dual Ball Bearing
Output Shaft (type / Ømm): Standard 24
Case Material: Plastic
Dust / Water Resistance: N / A
Connector Gauge (AWG) / Strand Count: 25 / 40

SKU HRC35245S
Barcode # 0669962350112
Brand Hitec
Shipping Weight 0.0900kg
Shipping Width 0.090m
Shipping Height 0.050m
Shipping Length 0.110m
Shipping Cubic 0.000495000m3
