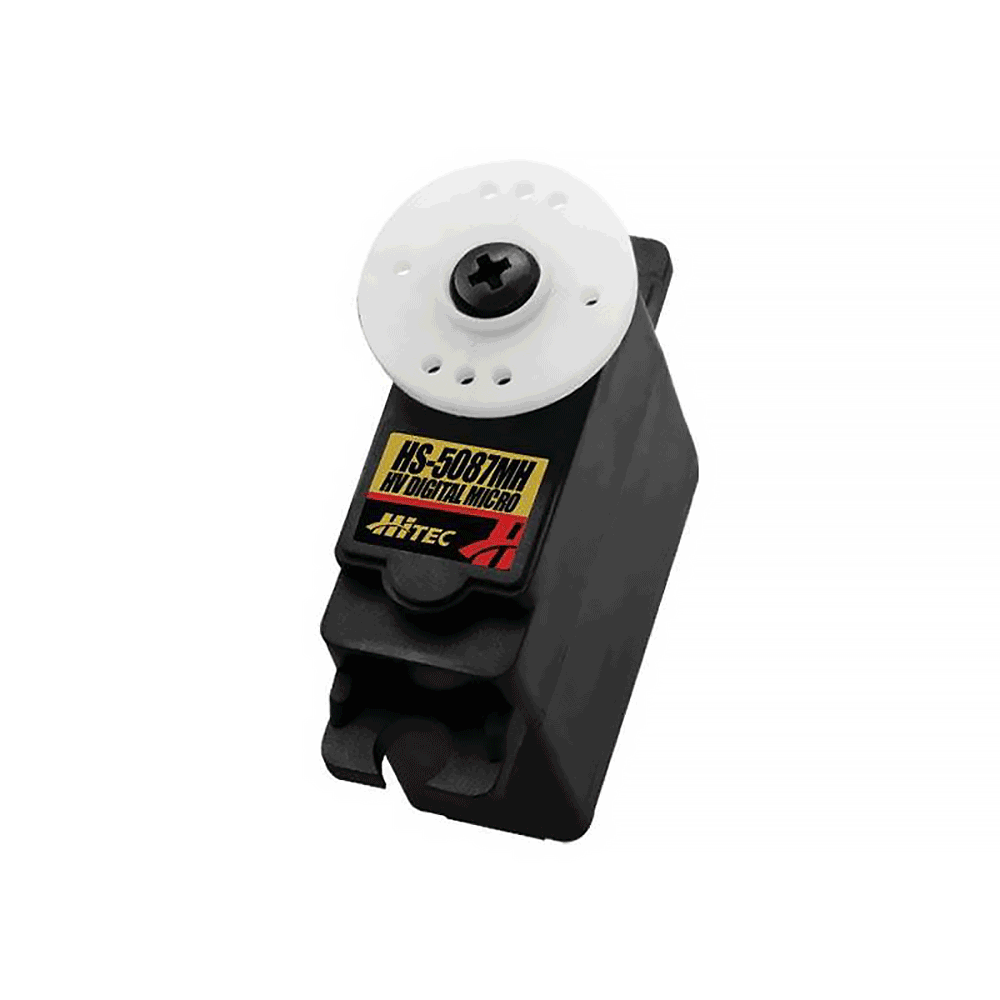

The HS-5087MH digital, metal gear micro servo is the high voltage version of our ever popular HS-5085MG. Built with a 3-pole ferrite motor and heavy-duty metal gears, this servo will bring maximum performance to your hobby and deliver extra power with a 2-cell 7.4V LiPo battery. Whether you are a beginner or an expert in the RC field, our HS-5087MH will provide the strength and capability you need and want in a micro servo. Drivers will find it the perfect steering servo for their 1/16th scale vehicles. Pilots with .15 to .40-size glow and electric aircraft will relish in its power and reliability. Its precision and performance also make it perfect for 500-size helicopters.

Features

  • Our Smallest 7.4v 2-Cell LiPo Capable Servo
  • Rugged Metal Gears
  • Ball Bearing-Supported Output Shaft
  • Standard Programmable Digital Circuit for More Holding Power
  • Standard Servo Performance in a Micro Package

Programmable Functions

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Data Save / Load
  • Program Reset

Performance Specifications
Operating Voltage Range (Volts DC): 6.0V ~ 7.4V
Speed (Second @ 60°): 0.17 ~ 0.13
Maximum Torque Range oz. / in.: 50 ~ 60
Maximum Torque Range kg. / cm.: 3.6 ~ 4.3
Current Draw at Idle: 3 mA
No Load Operating Current Draw: 200 mA
Stall Current Draw: 1,750 mA
Dead Band Width: 2 µs

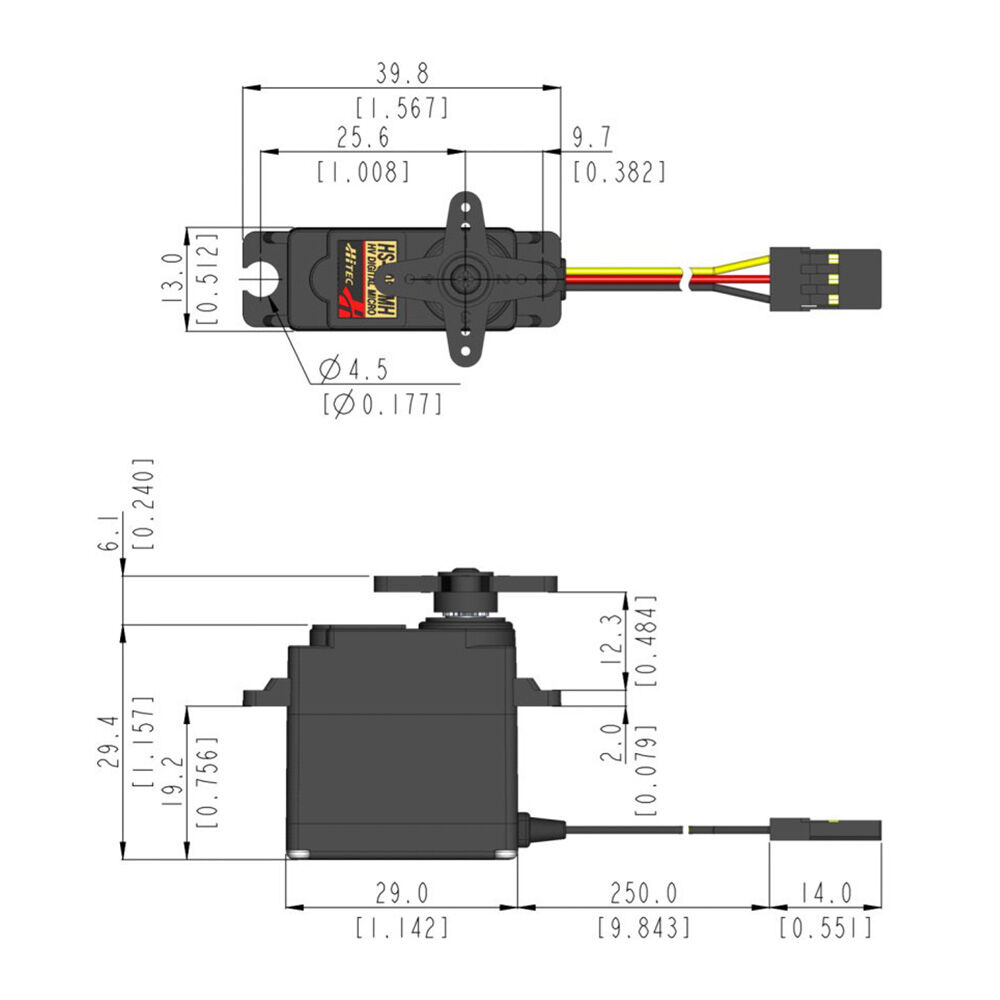

Physical Specifications
Dimensions (Inches): 1.14 x 0.51 x 1.18
Dimensions (Metric): 29.0 x 13.0 x 30.0
Weight (Ounces): 0.77
Weight (Gram): 21.9
Circuit Type: G1 Programable Digital
Motor Type: 3 Pole Metal Brush Ferrite
Gear Material: Metal
Bearing Type: Top Ball Bearing
Output Shaft (type / Ømm): Standard 24
Case Material: Plastic
Dust / Water Resistance: N / A
Connector Gauge (AWG) / Strand Count: 28 / 20

SKU HRC35087S
Barcode # 0669962350877
Brand Hitec
Shipping Weight 0.0500kg
Shipping Width 0.120m
Shipping Height 0.060m
Shipping Length 0.170m
Shipping Cubic 0.001224000m3
