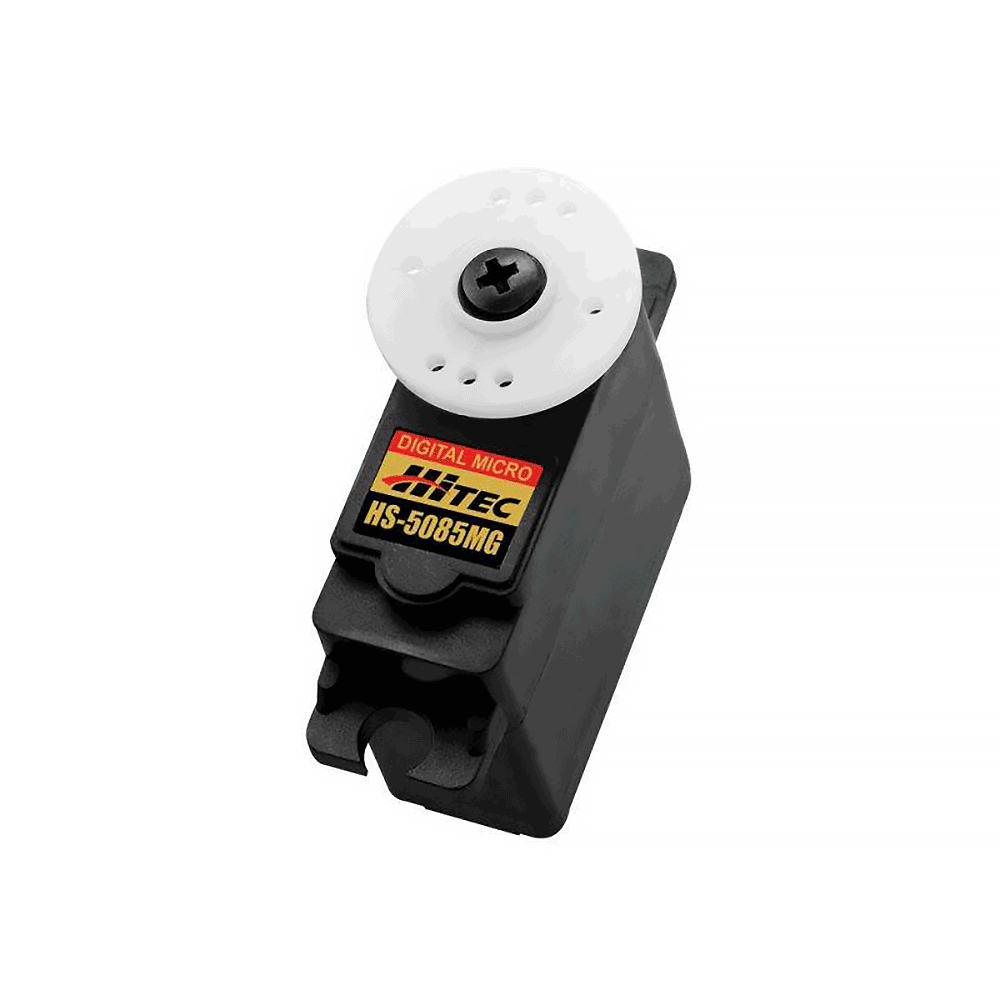

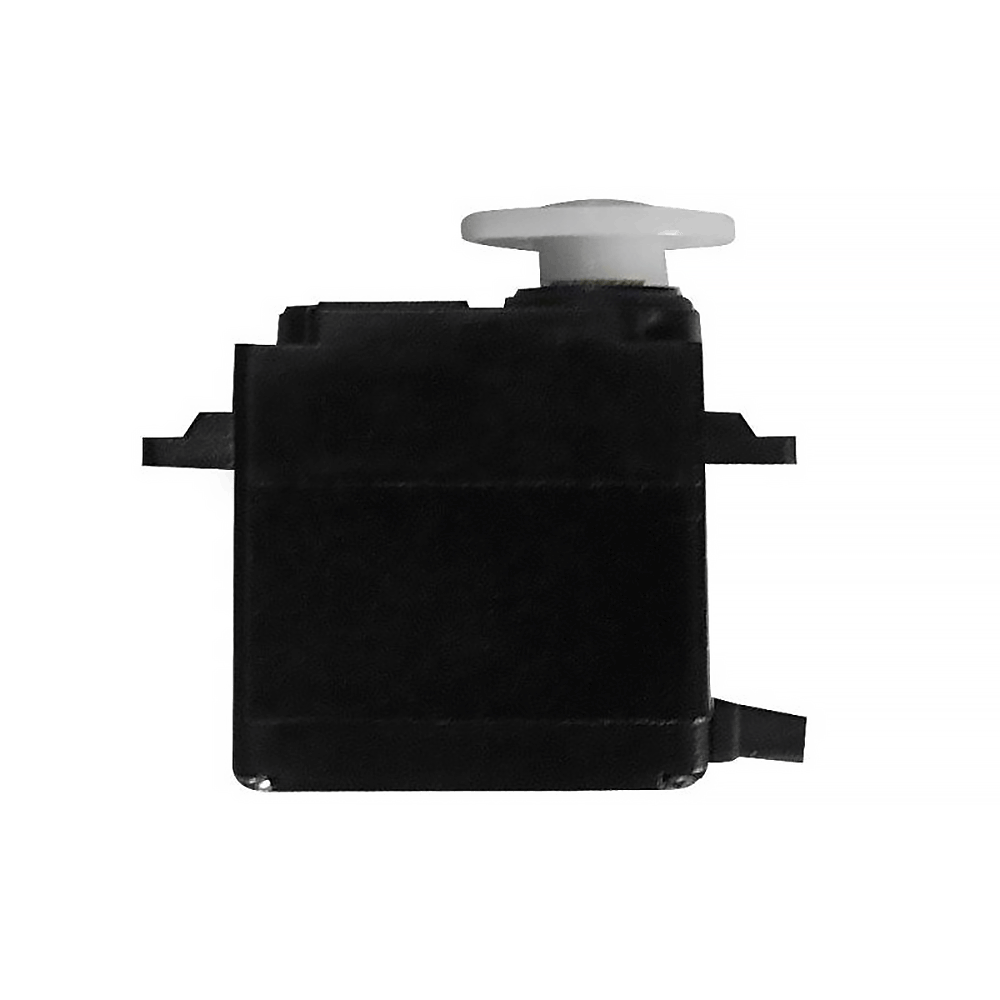

A digital version of one of Hitec’s most popular microi servos the HS-5085MG offers excellent centering, resolution and durability for those looking to save weight without sacrificing performance. A popular servo for smaller airplanes, heli’s, boats, cars and trucks, the HS-5085MG offers a fine balance between speed and torque.

The upgraded version of this servo is the D85MG

Features

• Standard Servo Performance from a Micro Servo
• Rugged Metal Gears
• Ball Bearing-Supported Output Shaft
• Standard Programmable Digital Circuit
• Stronger Holding Power than the Analog Version

Programmable Functions

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Data Save / Load
• Program Reset

Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.17 ~ 0.13
Maximum Torque Range oz. / in.: 50 ~ 60
Maximum Torque Range kg. / cm.: 3.6 ~ 4.3
Current Draw at Idle: 3 mA
No Load Operating Current Draw: 290 mA
Stall Current Draw: 2150 mA
Dead Band Width: 2 µs

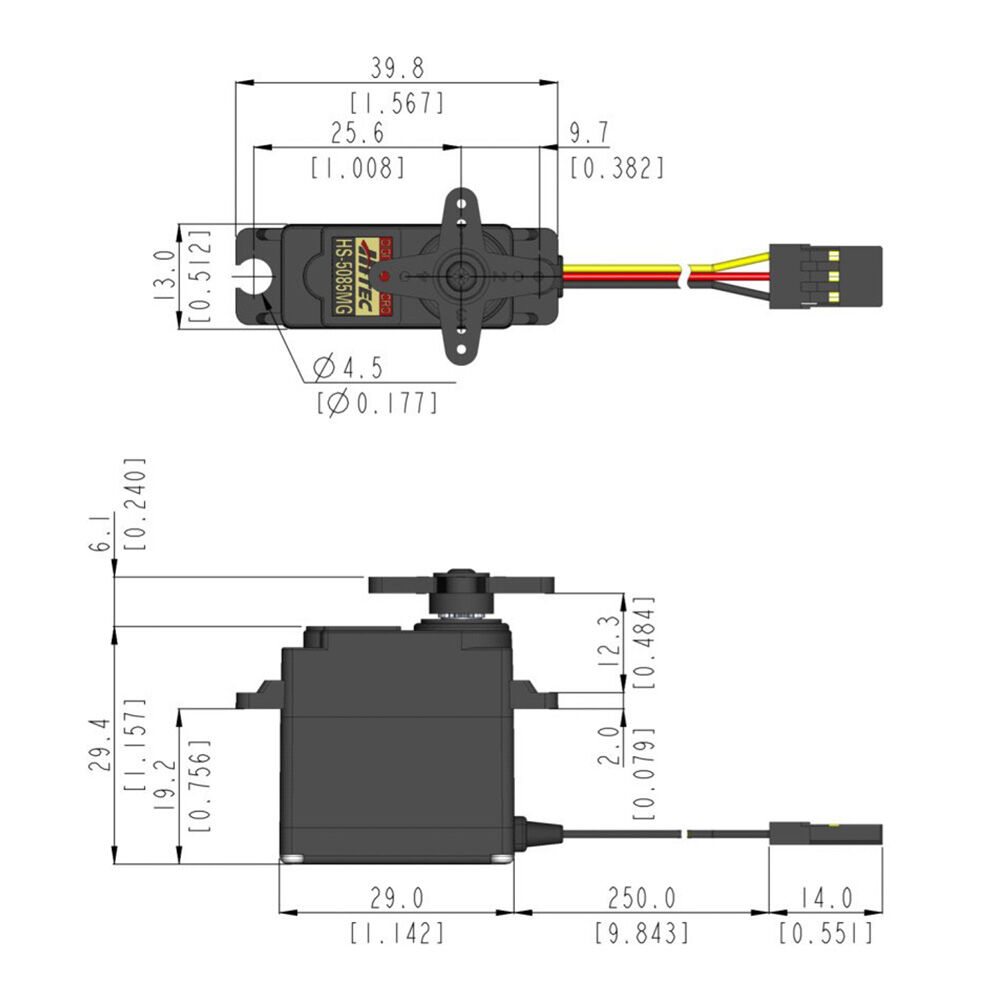

Physical Specifications
Dimensions (Inches): 1.14 x 0.51 x 1.18
Dimensions (Metric): 29.0 x 13.0 x 30.0
Weight (Ounces): 0.77
Weight (Gram): 21.9
Circuit Type: G1 Programable Digital
Motor Type: 3 Pole Metal Brush Ferrite
Gear Material: Metal
Bearing Type: Top Ball Bearing
Output Shaft (type / Ømm): Standard 24
Case Material: Plastic
Dust / Water Resistance: N / A
Connector Gauge (AWG) / Strand Count: 28 / 20
