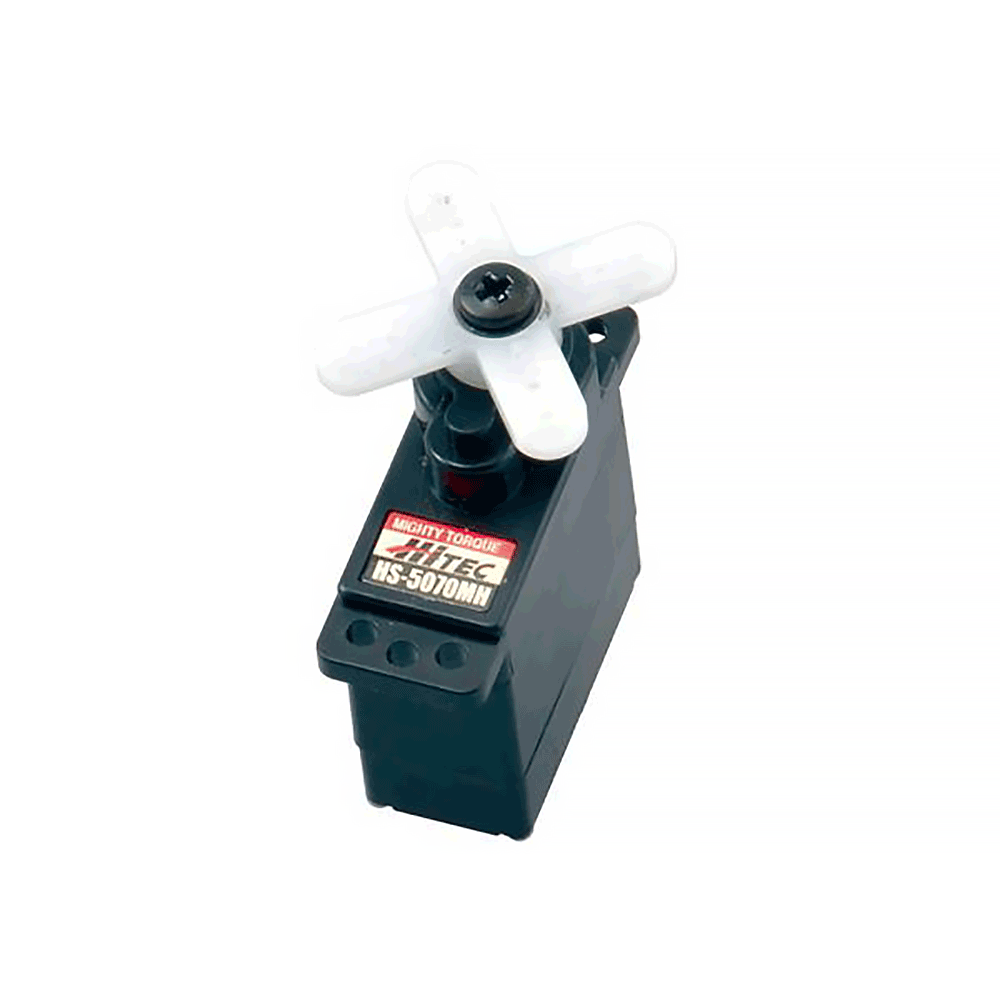

Our new strong and speedy digital HS-5070MH possess the performance qualities necessary for the new class of 42-48 inch performance 3D aircraft and 450-size helicopters. Featuring Hitec’s durable metal gears, cored motors, top ball bearings and Generation 1 circuitry, these new additions to our vast servo family will have all your planes and helis flying with remarkable precision and power. The programmable HS-5070MH delivers an impressive 53 oz.-in. of torque at 7.4 volts. Fast, forceful, fantastic! We Are Hitec!

Programmable Functions

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Data Save / Load
• Program Reset

Performance Specifications
Operating Voltage Range (Volts DC): 6.0V ~ 7.4V
Speed (Second @ 60°): 0.14 ~ 0.12
Maximum Torque Range oz. / in.: 42 ~ 52
Maximum Torque Range kg. / cm.: 3.0 ~ 3.7
Current Draw at Idle: 3 mA
No Load Operating Current Draw: 240 mA
Stall Current Draw: 1,300 mA
Dead Band Width: 2 µs

Physical Specifications

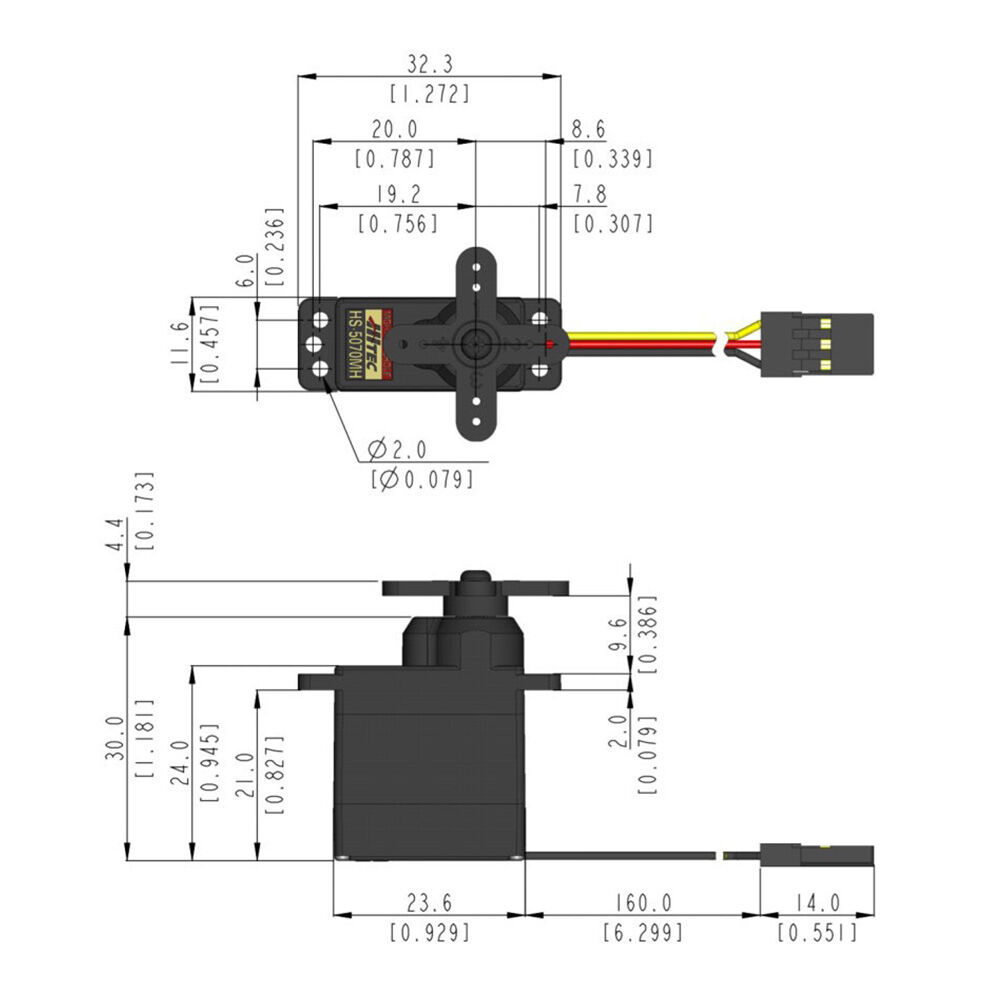

Dimensions (Inches): 0.92 x 0.45 x 1.14
Dimensions (Metric): 23.6 x 11.6 x 28.1
Weight (Ounces): 0.50
Weight (Gram): 14.2
Circuit Type: G1 Programable Digital
Motor Type: 3 Pole Metal Brush Neodymium
Gear Material: Metal
Bearing Type: Top Ball Bearing
Output Shaft (type / Ømm): Micro 25
Case Material: Plastic
Dust / Water Resistance: N / A
Connector Gauge (AWG) / Strand Count: 28 / 20
