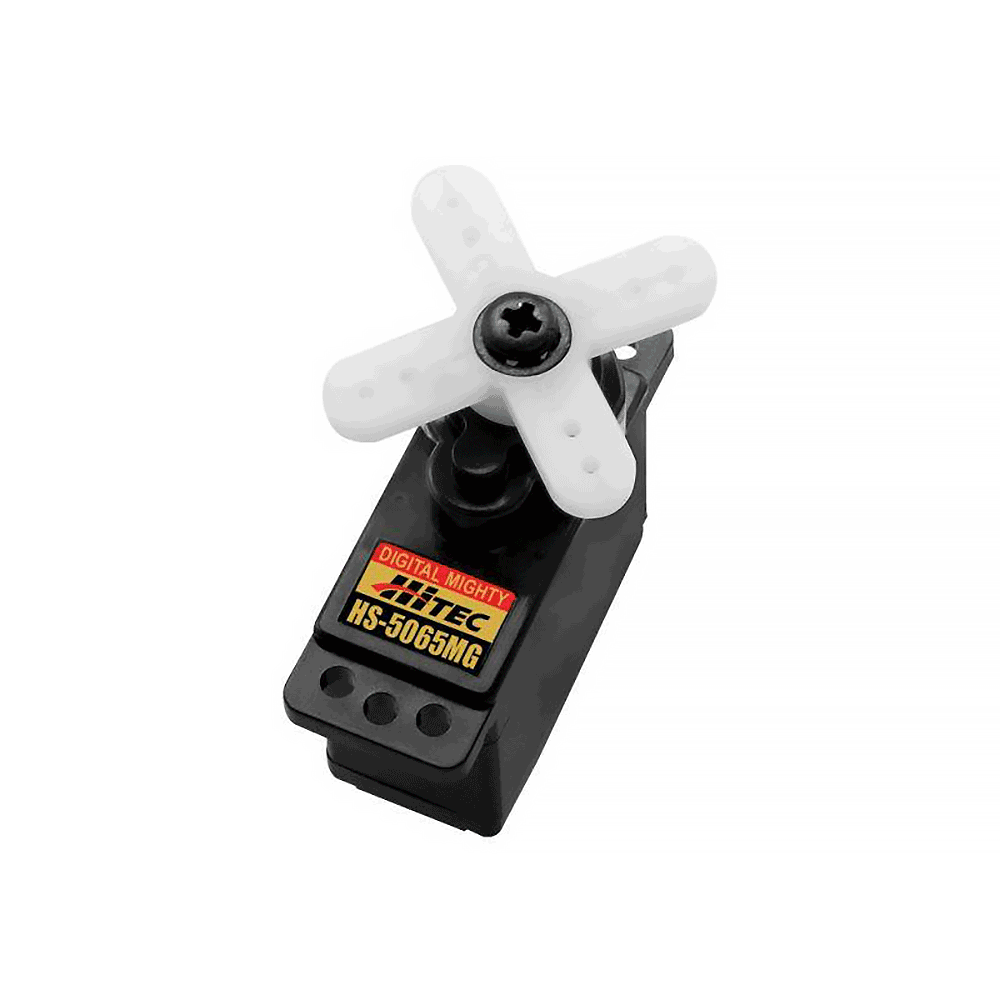

Hitec raised the bar by offering the ever popular HS-65 in a new digital version! The HS-5065MG High Performance Micro Servo features Hitec's digital, programmable circuit for incredible resolution, centering and holding torque; also featuring metal gears, a top-ball bearing, and at 31 oz./in. of torque with a quick transit time of 0.11 sec at 6 volts, it is no doubt THE choice for high performance micro helicopters, electric park flyers, and 1/18 scale cars.

Features

• Top Selling Digital Feather Servo
• Ball Bearing-Supported Output Shaft
• Standard Programmable Digital Circuit for More Holding Power
• High Torque and High Speed
• Accurate Centering

Programmable Functions

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Data Save / Load
• Program Reset

Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.14 ~ 0.11
Maximum Torque Range oz. / in.: 25 ~ 31
Maximum Torque Range kg. / cm.: 1.8 ~ 2.2
Current Draw at Idle: 3 mA
No Load Operating Current Draw: 220 mA
Stall Current Draw: 1,200 mA
Dead Band Width: 2 µs

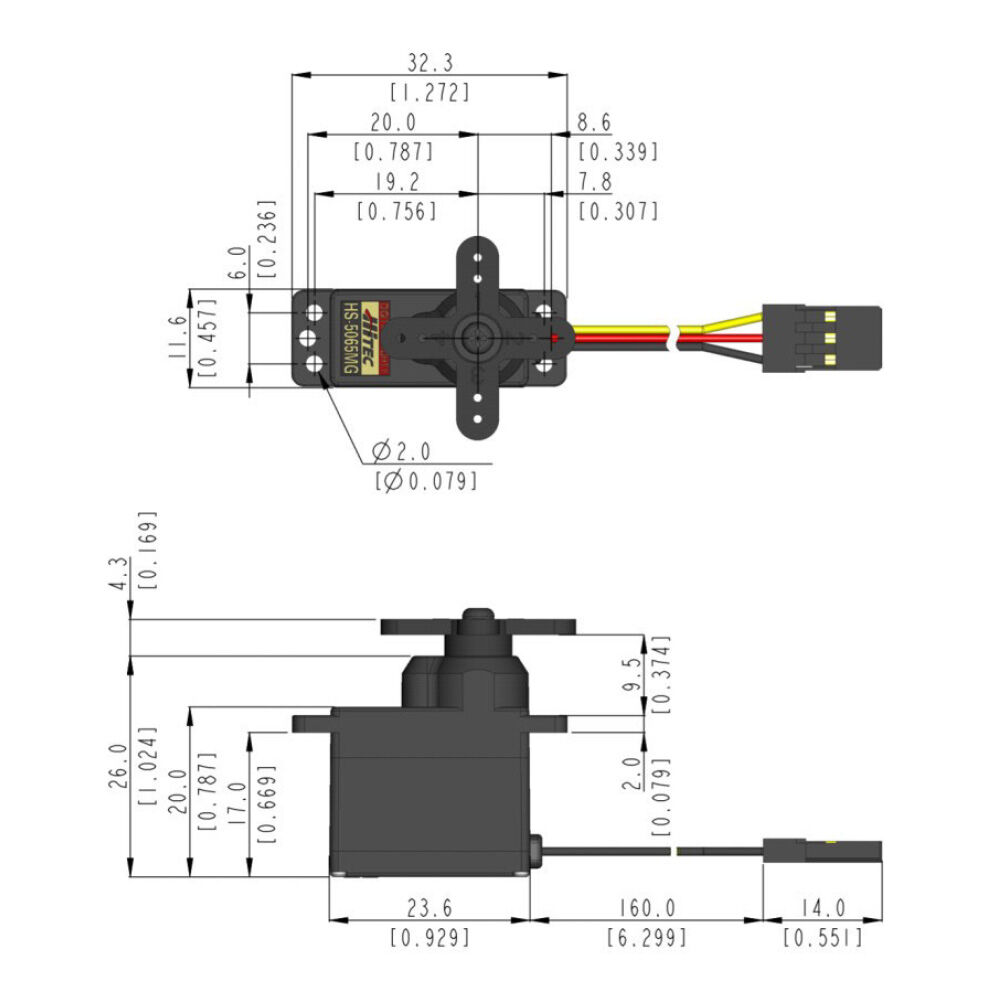

Physical Specifications
Dimensions (Inches): 0.92 x 0.45 x 0.94
Dimensions (Metric): 23.6 x 11.6 x 24.0
Weight (Ounces): 0.42
Weight (Gram): 11.9
Circuit Type: G1 Programable Digital
Motor Type: 3 Pole Metal Brush Neodymium
Gear Material: Metal
Bearing Type: Top Ball Bearing
Output Shaft (type / Ømm): Micro 25
Case Material: Plastic
Dust / Water Resistance: N / A
Connector Gauge (AWG) / Strand Count: 28 / 20
