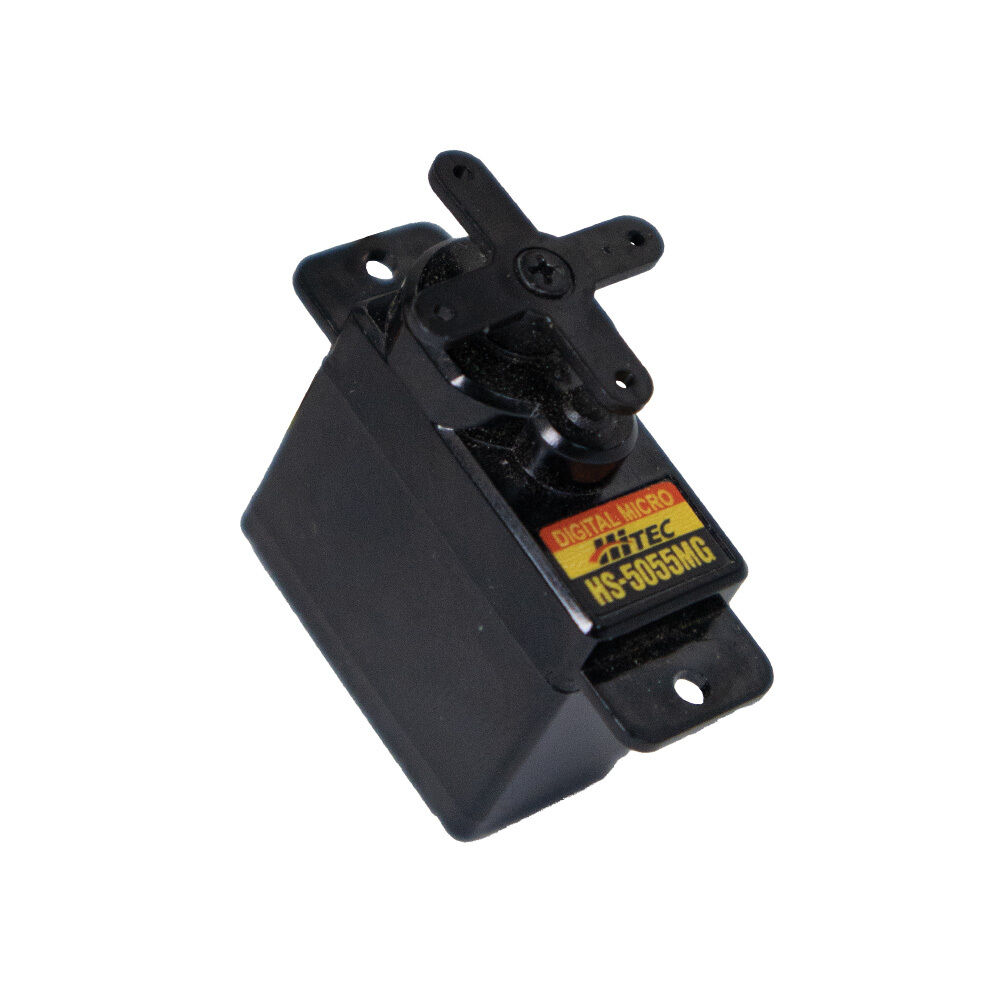

The HS-5055MG takes ultra micro performance to the next level without breaking the bank. It's a perfect choice for ” smaller” high performance electric helicopters, aircraft and sail planes. It is the digital metal-geared version of the HS-55, and continues the tradition as the standard for affordable performance, offering precision components that have been engineered to provide long lasting trouble free service.

Features

  • Digital Circuit for Increased Performance and Holding Power
  • Smooth Coreless Motor
  • Rugged Metal Gears
  • Standard Programmable Digital Circuit
  • Economical, Feather, Digital Servo

Programmable Functions

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Data Save / Load
  • Program Reset

Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.20 ~ 0.17
Maximum Torque Range oz. / in.: 18 ~ 22
Maximum Torque Range kg. / cm.: 1.3 ~ 1.6
Current Draw at Idle: 8 mA
No Load Operating Current Draw: 120 mA
Stall Current Draw: 700 mA
Dead Band Width: 6 µs

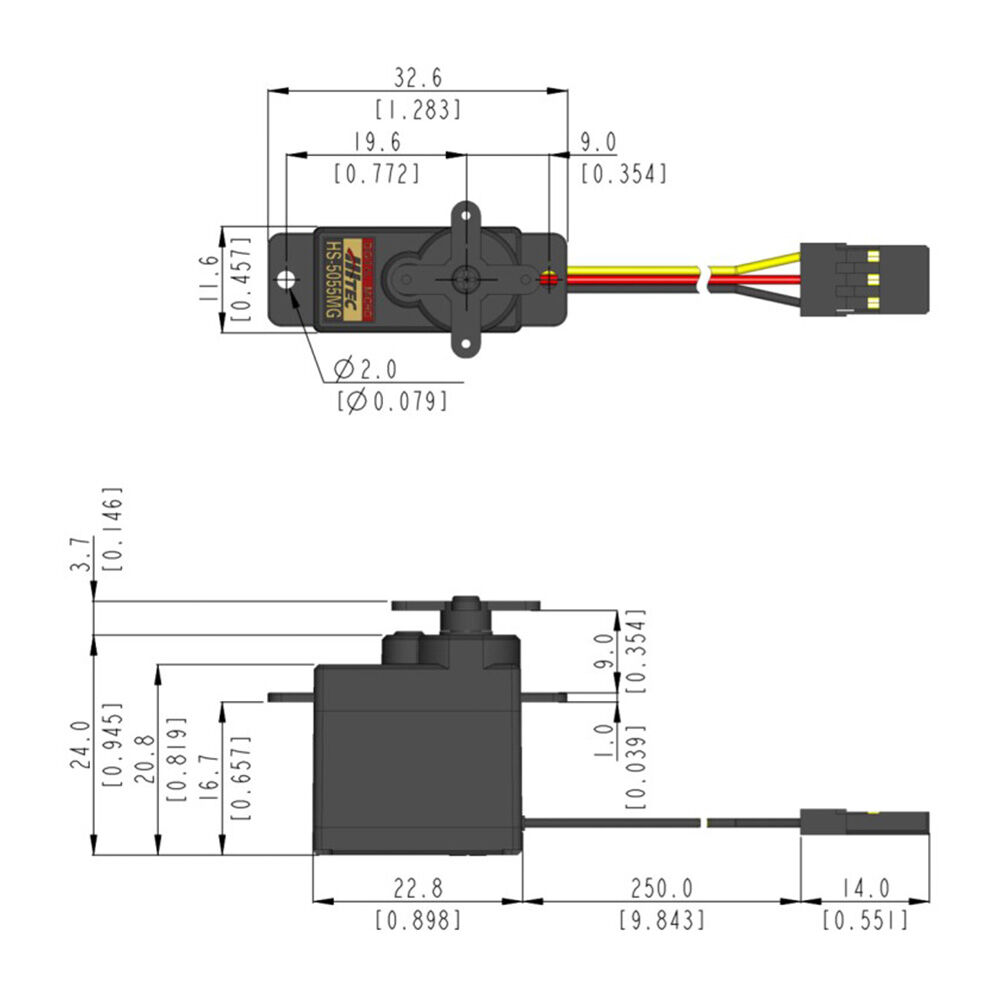

Physical Specifications
Dimensions (Inches): 0.89 x 0.45 x 0.94
Dimensions (Metric): 22.8 x 11.6 x 24.0
Weight (Ounces): 0.33
Weight (Gram): 9.5
Circuit Type: G1 Programable Digital
Motor Type: 3 Pole Metal Brush Ferrite
Gear Material: Metal
Bearing Type: None
Output Shaft (type / Ømm): Feather 15
Case Material: Plastic
Dust / Water Resistance: N / A
Connector Gauge (AWG) / Strand Count: 28 / 20

SKU HRC35055S
Barcode # 0669962350556
Brand Hitec
Shipping Weight 0.0500kg
Shipping Width 0.120m
Shipping Height 0.060m
Shipping Length 0.170m
Shipping Cubic 0.001224000m3
