The HS-485HB updates the very popular HS-475HB by adding more torque and greater speed. With its top ball bearing, heavy duty, high impact Karbonite™ gears and high performance circuitry, the HS-485HB offers lots of torque and features excellent centering and resolution.

  • Applications: Heli's and Aircraft up to 72” or up to 12lbs when using just one servo per control surface.
  • Note: Be aware that high vibration gas (not glow) engines combined with large contol surfaces and large thows (3D models) can put undue strain on the gears. Metal geared servos are recommended for these applications even if under 12lbs.
  • Warning: Do not use thread lockers on Karbonite geared servo as it will cause the output shaft to fail.

Features

  • Top Selling Heavy Duty Standard Servo
  • High Impact Karbonite Gears
  • Top Ball Bearings
  • Excellent Centering and Resolution

Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.22 ~ 0.18
Maximum Torque Range oz. / in.: 67 ~ 83
Maximum Torque Range kg. / cm.: 4.8 ~ 6.0
Current Draw at Idle: 10 mA
No Load Operating Current Draw: 200 mA
Stall Current Draw: 1,200 mA
Dead Band Width: 3 µs

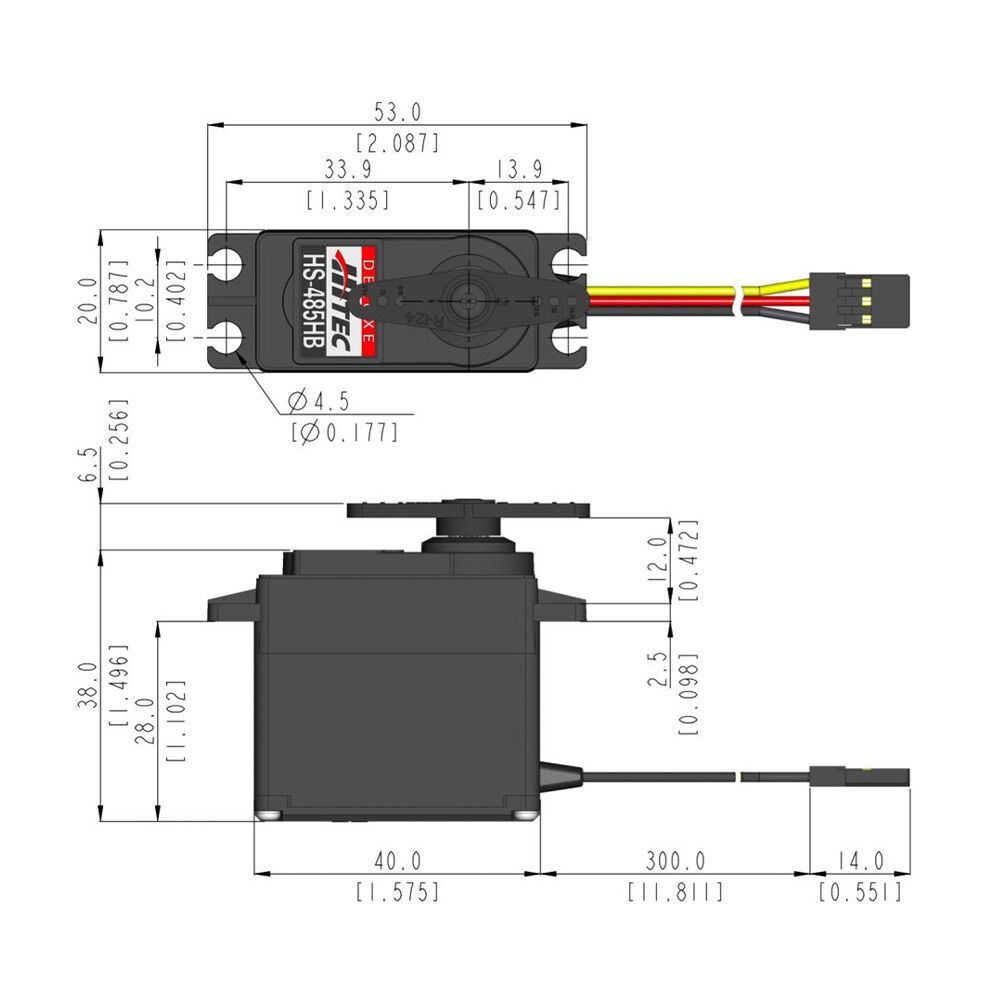

Physical Specifications
Dimensions (Inches): 1.57 x 0.78 x 1.49
Dimensions (Metric): 39.8 x 19.8 x 38.0
Weight (Ounces): 1.59
Weight (Gram): 45.0
Circuit Type: HT7003 Analog SMT
Motor Type: 3 Pole Metal Brush Ferrite
Gear Material: Karbonite
Bearing Type: Top Ball Bearing
Output Shaft (type / Ømm): Standard 24
Case Material: Plastic
Dust / Water Resistance: N / A
Connector Gauge (AWG) / Strand Count: 25 / 40

SKU HRC33485S
Barcode # 0669962334853
Brand Hitec
Shipping Weight 0.1000kg
Shipping Width 0.070m
Shipping Height 0.060m
Shipping Length 0.080m
Shipping Cubic 0.000336000m3
