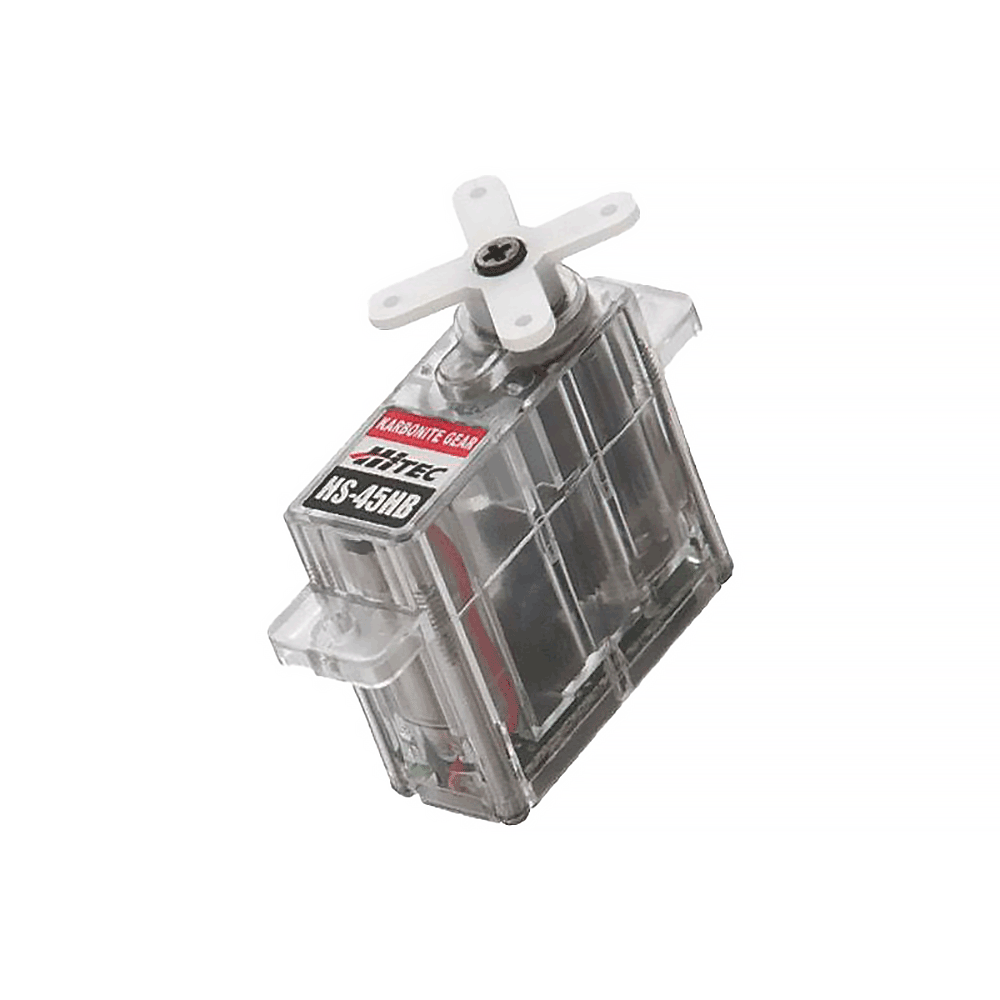

Hitec’s HS-45HB offers the economy and durability of our other famous micro servos, but now with a ball bearing supported output shaft and Karbonite gears.

Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.14 ~ 0.12
Maximum Torque Range oz. / in.: 14 ~ 17
Maximum Torque Range kg. / cm.: 1.0 ~ 1.2
Current Draw at Idle: 8 mA
No Load Operating Current Draw: 100 mA
Stall Current Draw: 440 mA
Dead Band Width: 5 µs

Physical Specifications

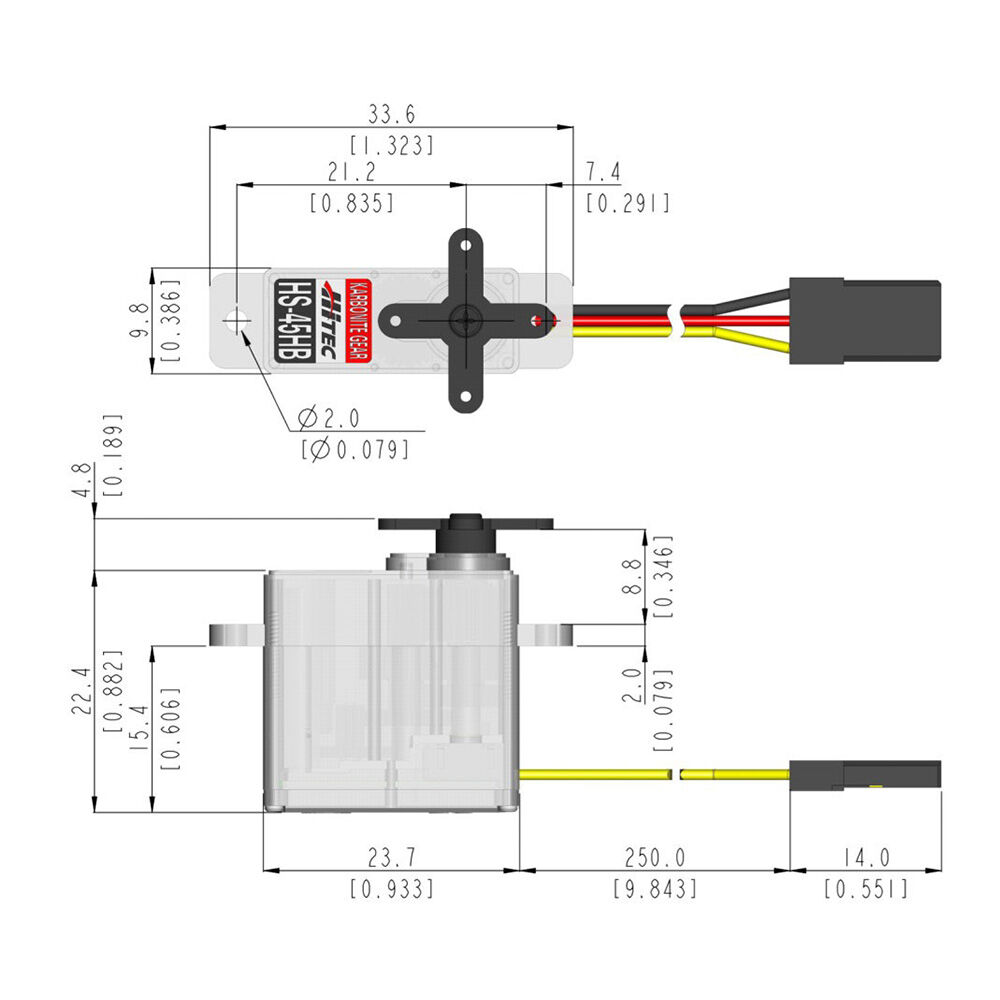

Dimensions (Inches): 0.92 x 0.38 x 0.88
Dimensions (Metric): 23.6 x 9.8 x 22.4
Weight (Ounces): 0.28
Weight (Gram): 8.0
Circuit Type: HT7003 Analog SMT
Motor Type: Cored Metal Brush
Gear Material: Karbonite
Bearing Type: Top Ball Bearing
Output Shaft (type / Ømm): Feather 15 / 8
Case Material: Plastic
Dust / Water Resistance: N / A
Connector Gauge (AWG) / Strand Count: 28 / 20

SKU HRC33045S
Barcode # 0669962330459
Brand Hitec
Shipping Weight 0.0500kg
Shipping Width 0.070m
Shipping Height 0.040m
Shipping Length 0.080m
Shipping Cubic 0.000224000m3
