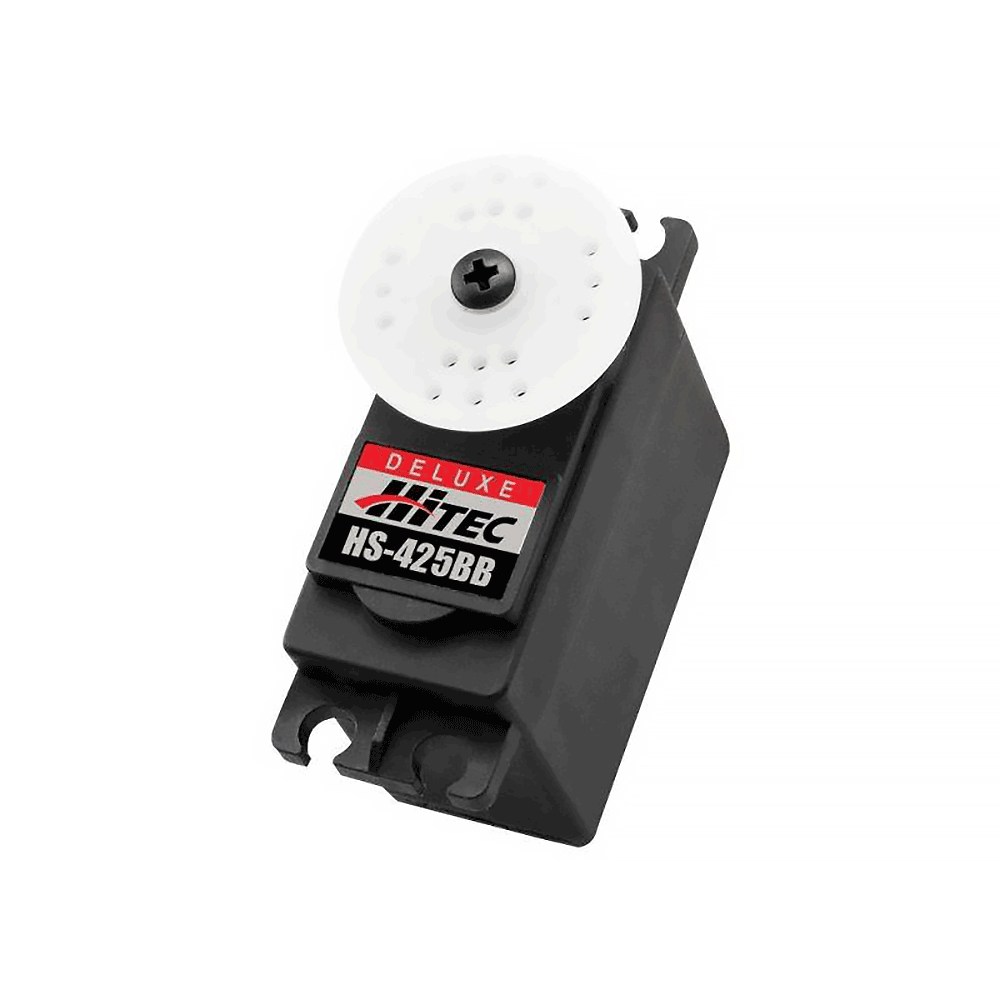

The HS-425BB is offered with dual ball bearings, impact resin gears and high performance circuitry. As one of our longest running production servos, it has proven to be a durable and dependable product year after year.

Features

  • Durable and Dependable Construction
  • Durable Resin Gear Train
  • Dual Ball Bearings
  • High Performance Circuitry

Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.21 ~ 0.16
Maximum Torque Range oz. / in.: 46 ~ 57
Maximum Torque Range kg. / cm.: 3.3 ~ 4.1
Current Draw at Idle: 8 mA
No Load Operating Current Draw: 150 mA
Stall Current Draw: 800 mA
Dead Band Width: 8 µs

Physical Specifications

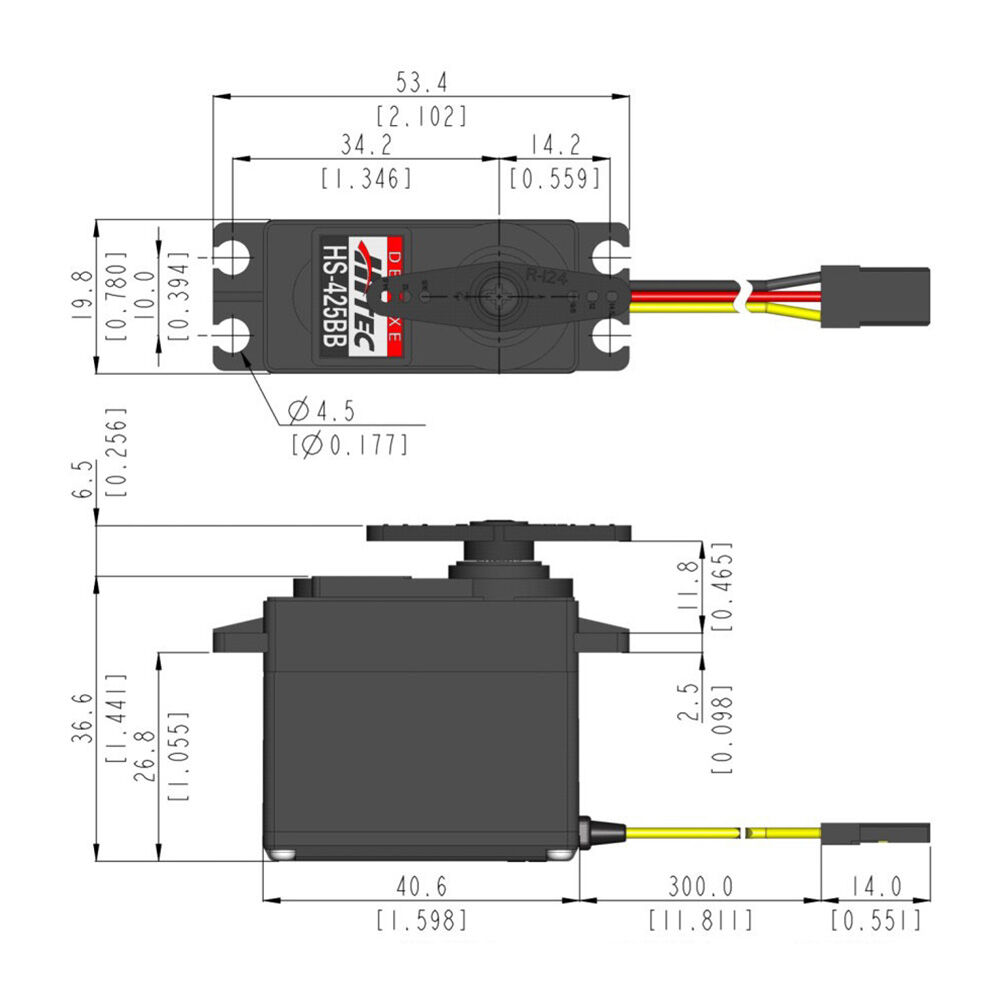

Dimensions (Inches): 1.59 x 0.77 x 1.44
Dimensions (Metric): 40.6 x 19.8 x 36.6
Weight (Ounces): 1.60
Weight (Gram): 45.5
Circuit Type: HT7003 Analog SMT
Motor Type: 3 Pole Metal Brush Ferrite
Gear Material: Nylon
Bearing Type: Dual Ball Bearing
Output Shaft (type / Ømm): Standard 24
Case Material: Plastic
Dust / Water Resistance: N / A
Connector Gauge (AWG) / Strand Count: 25 / 40

SKU HRC31425S
Barcode # 0669962310451
Brand Hitec
Shipping Weight 0.1000kg
Shipping Width 0.070m
Shipping Height 0.060m
Shipping Length 0.080m
Shipping Cubic 0.000336000m3

HS-425 BB Servo

23 April 2020
Arrived on time as advertised in new condition, tested and works fine.
(5)
