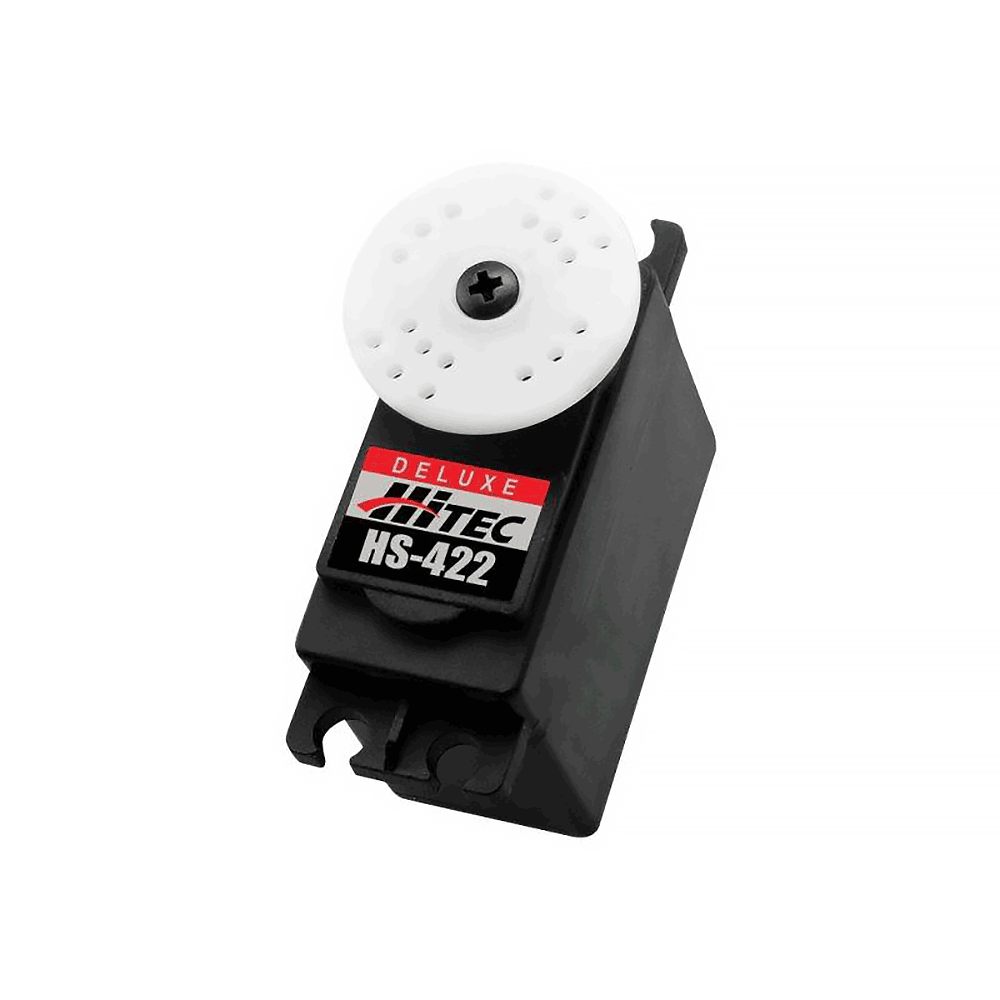

The HS-422 is one of the most durable and reliable servos Hitec has ever offered. With its dual iron-oilite bushings, high impact resin gear train and high performance circuitry, the HS-422 features excellent centering and resolution.

Features

  • Durable and Dependable Construction
  • Durable Resin Gear Train
  • Oilite Bushing Supported Output Shaft
  • High Performance Circuitry

Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.21 ~ 0.16
Maximum Torque Range oz. / in.: 46 ~ 57
Maximum Torque Range kg. / cm.: 3.3 ~ 4.1
Current Draw at Idle: 8 mA
No Load Operating Current Draw: 150 mA
Stall Current Draw: 800 mA
Dead Band Width: 8 µs

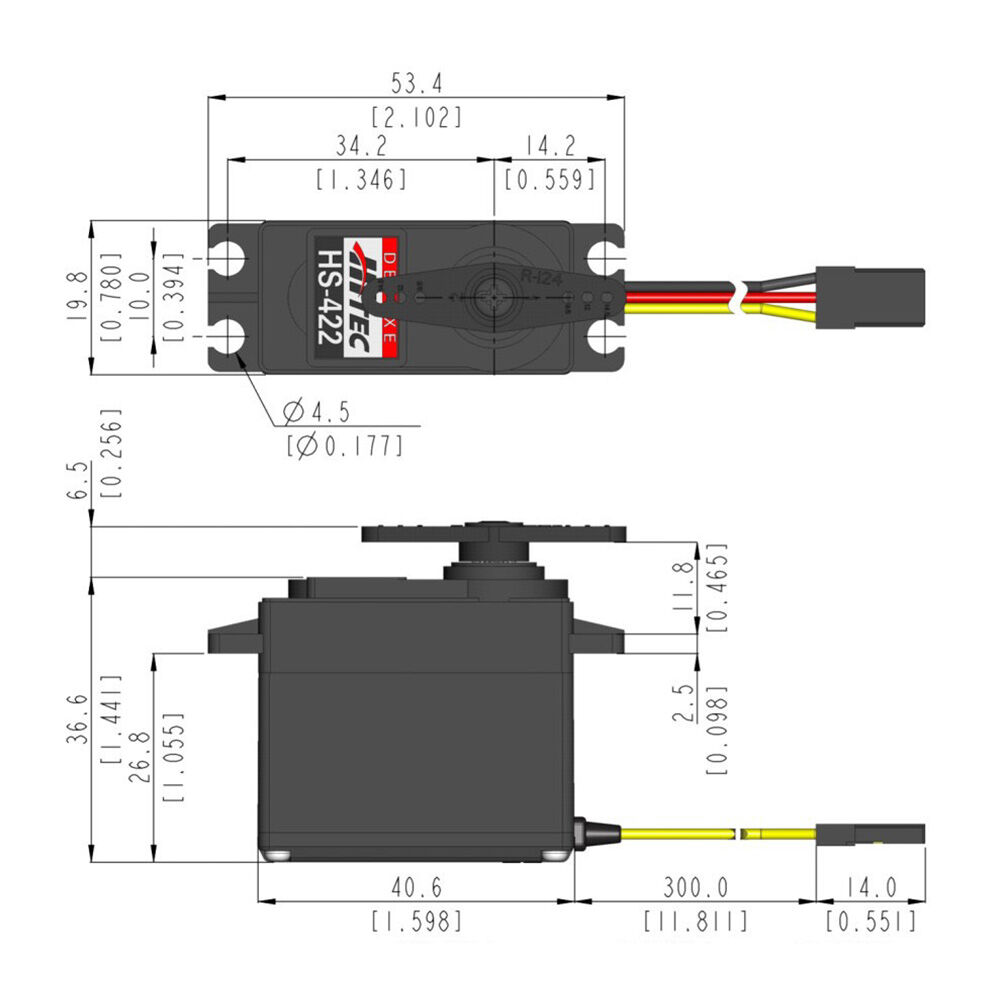

Physical Specifications
Dimensions (Inches): 1.59 x 0.77 x 1.44
Dimensions (Metric): 40.6 x 19.8 x 36.6
Weight (Ounces): 1.60
Weight (Gram): 45.5
Circuit Type: HT7003 Analog SMT
Motor Type: 3 Pole Metal Brush Ferrite
Gear Material: Nylon
Bearing Type: Dual Oilite
Output Shaft (type / Ømm): Standard 24
Case Material: Plastic
Dust / Water Resistance: N / A
Connector Gauge (AWG) / Strand Count: 25 / 40

SKU HRC31422S
Barcode # 0669962310420
Brand Hitec
Shipping Weight 0.1000kg
Shipping Width 0.070m
Shipping Height 0.060m
Shipping Length 0.080m
Shipping Cubic 0.000336000m3
