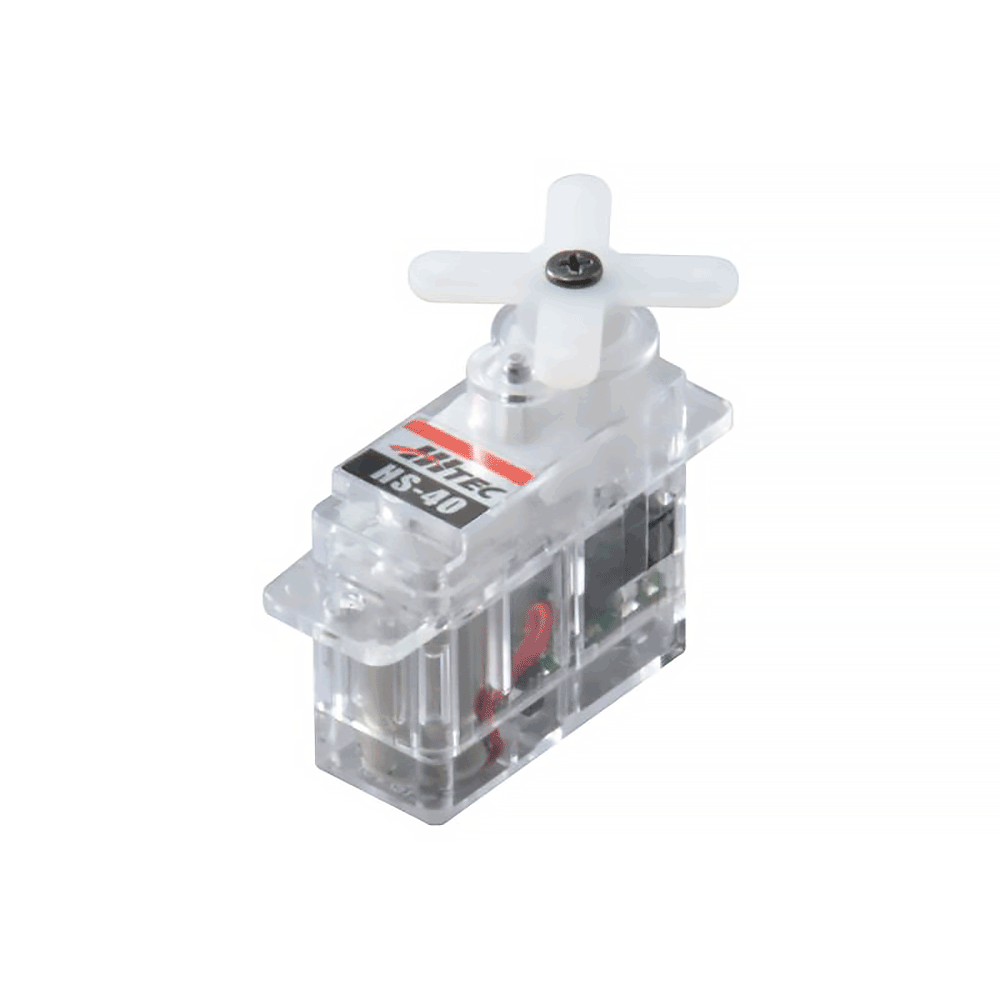

With a three-pole cored motor and resilient nylon gears, the affordable HS-40 servo is a dream come true for micro aircraft, sailplane and helicopter pilots. Slightly larger than the popular HS-35HD with an operating range of 4.8 to 6.0 volts, the HS-40 is a solid performer that is easy on your wallet!

Features

  • Nylon Gears
  • Three-Pole Motor
  • 4.8 & 6.0V Operation
  • Economically Priced

Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.12 ~ 0.10
Maximum Torque Range oz. / in.: 8.4 ~ 10.5
Maximum Torque Range kg. / cm.: 0.6 ~ 0.75
Current Draw at Idle: 8 mA
No Load Operating Current Draw: 60 mA
Stall Current Draw: 460 mA
Dead Band Width: 5 µs

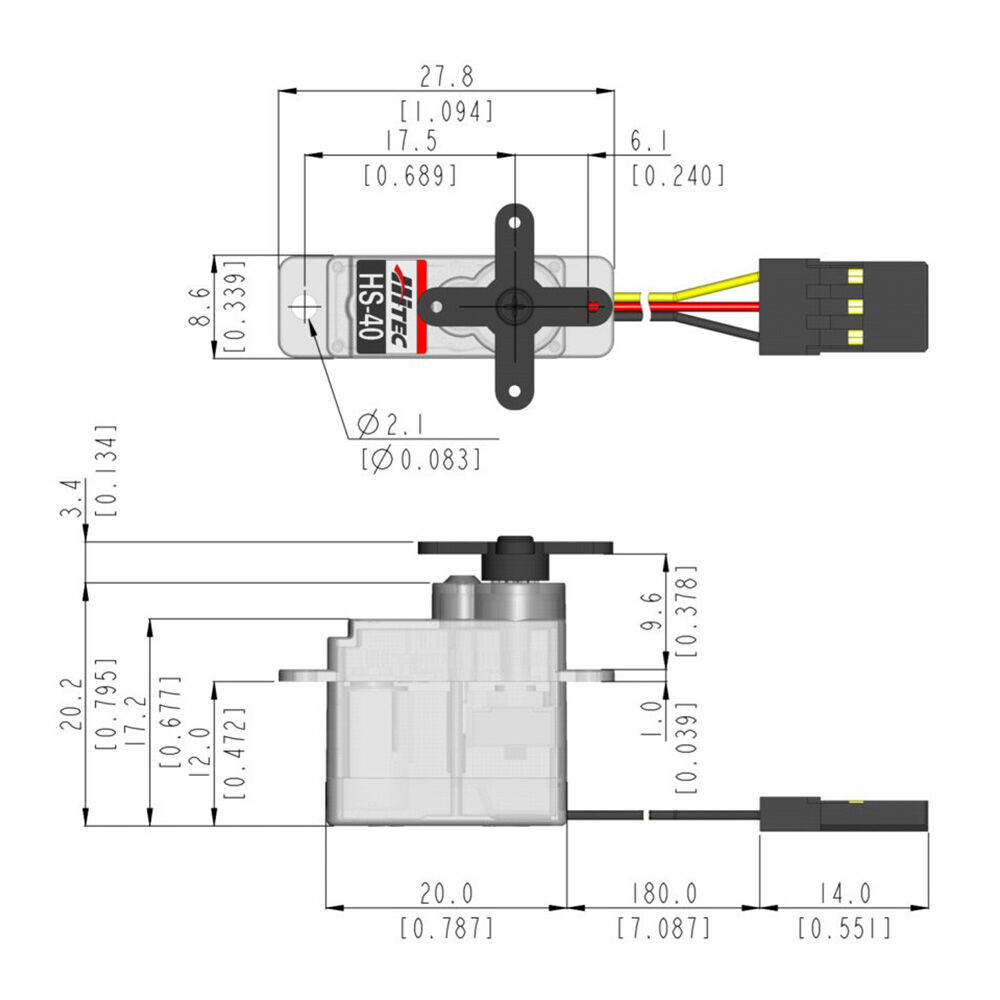

Physical Specifications
Dimensions (Inches): 0.79 x 0.34 x 0.67
Dimensions (Metric): 20.0 x 8.6 x 17.0
Weight (Ounces): 0.17
Weight (Gram): 4.8
Circuit Type: HT7003 Analog SMT
Motor Type: Cored Metal Brush
Gear Material: Nylon
Bearing Type: None
Output Shaft (type / Ømm): Feather 15 / 8
Case Material: Plastic
Dust / Water Resistance: N / A
Connector Gauge (AWG) / Strand Count: 28 / 20

SKU HRC31040
Barcode # 0669962310406
Brand Hitec
Shipping Weight 0.0500kg
Shipping Width 0.070m
Shipping Height 0.040m
Shipping Length 0.080m
Shipping Cubic 0.000224000m3
