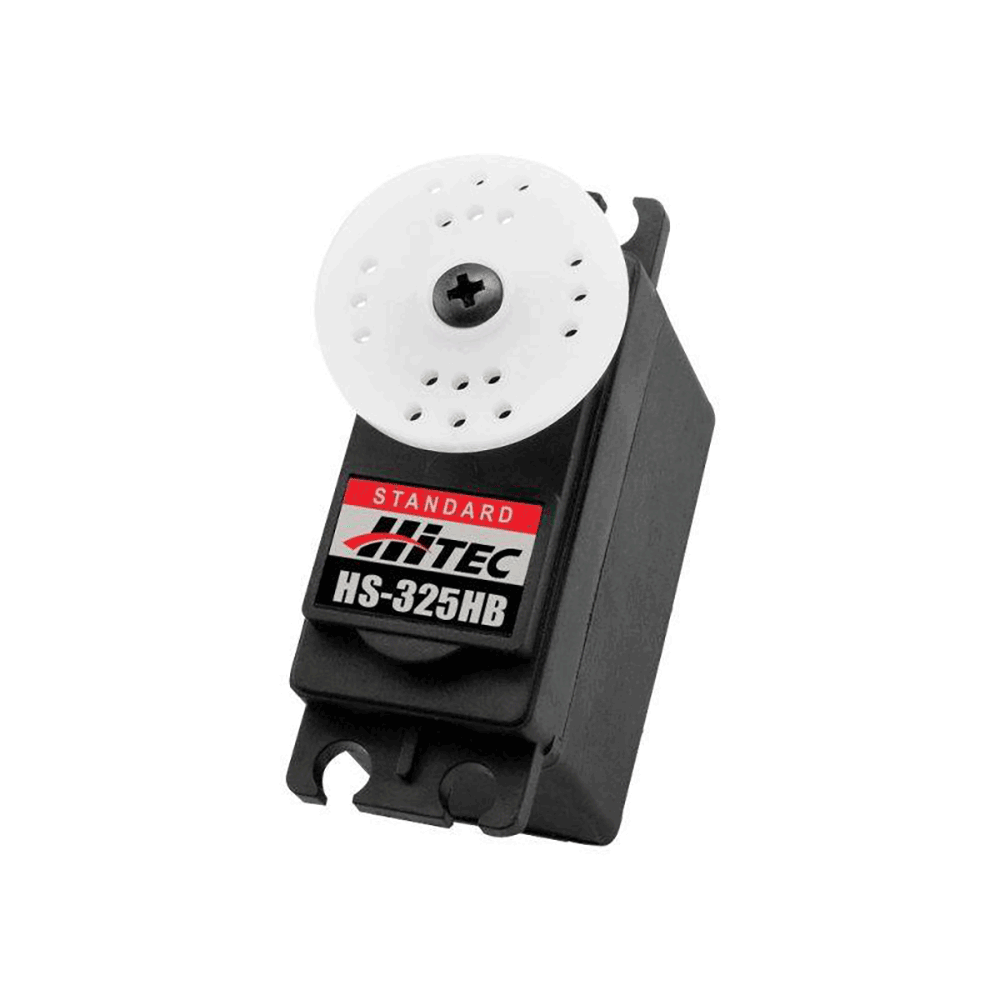

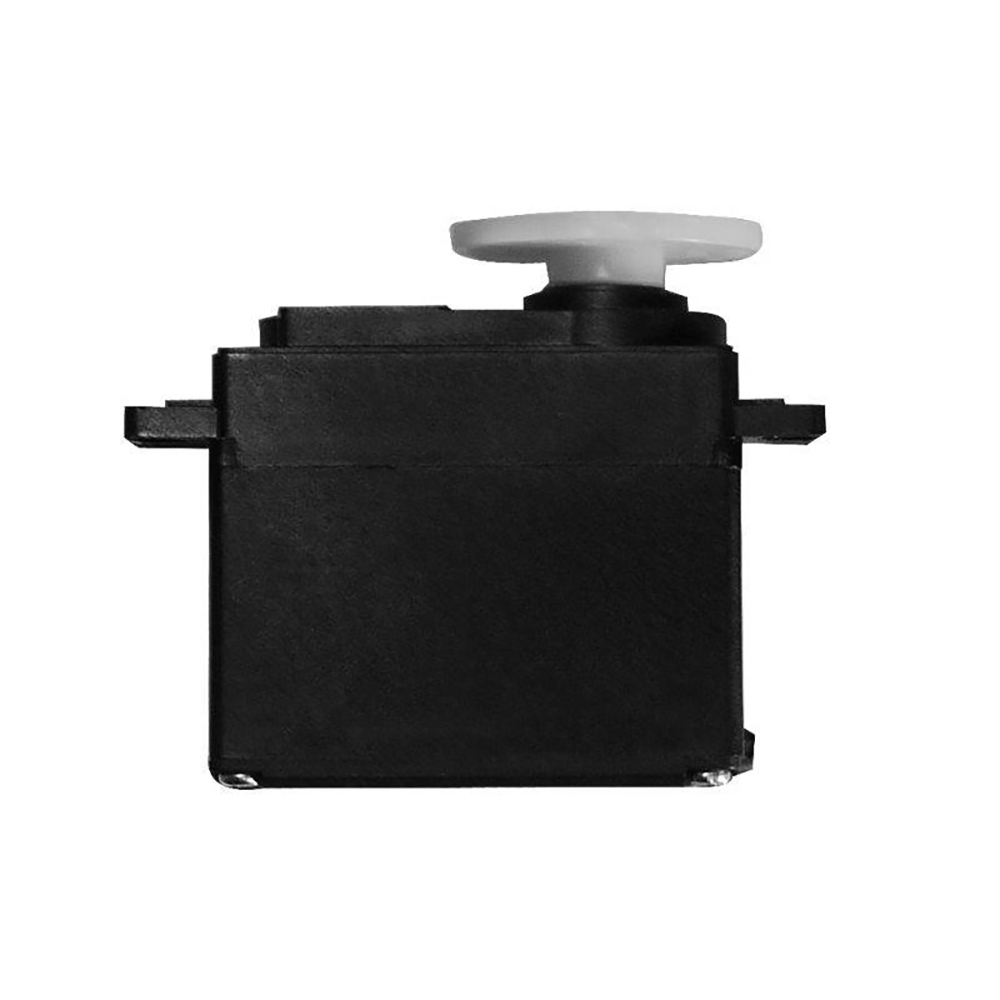

The HS-325HB Standard Heavy Duty Servo features a ball bearing output shaft for long life and positive centering. Hitec’s HS-325HB is offered with Karbonite™ gears, that after hundreds of thousands of cycles won’t show any signs of wear. With 49 oz./in. of torque at 6 Volts, the HS-325HB is a great choice for Sport pilots all over the World!

  • Applications: Heli's and Aircraft up to 72" or up to 12lbs when using just one servo per control surface.
  • Note: Be aware that high vibration gas (not glow) engines combined with large contol surfaces and large thows (3D models) can put undue strain on the gears. Metal geared servos are recommended for these applications even if under 12lbs.
  • Warning: Do not use thread lockers on Karbonite geared servo as it will cause the output shaft to fail.

Features

  • Economical, Ball Bearing, Sport Servo
  • Tough Karbonite Gears
  • Ball Bearing-Supported Output Shaft
  • 24T Spline

Specifications
Motor Type: 3 Pole
Bearing Type: Top Ball Bearing
Speed (4.8V/6.0V): 0.19 / 0.15 sec @ 60 deg.
Torque oz./in. (4.8V/6.0V): 42 / 51
Torque kg./cm. (4.8V/6.0V): 3.0 / 3.7

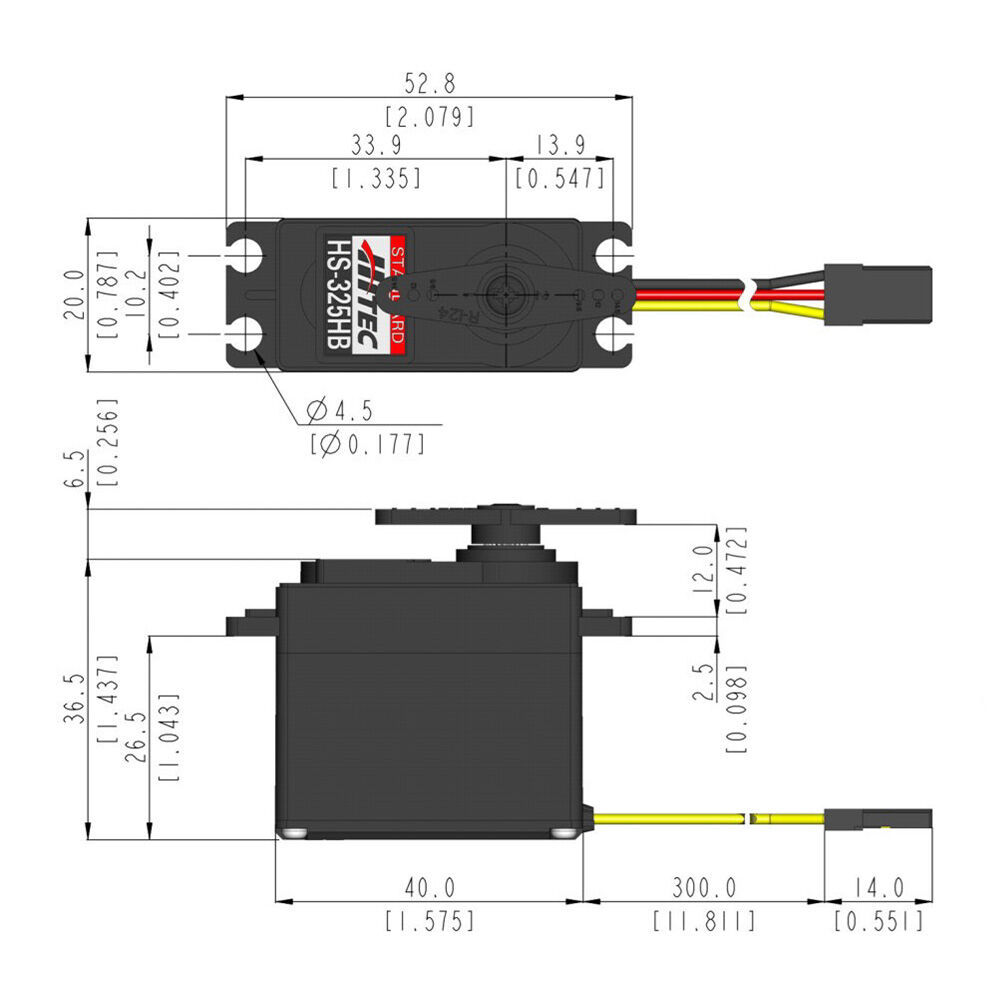

Size in Inches: 1.57 x 0.78 x 1.43
Size in Millimeters: 39.88 x 19.81 x 36.32
Weight ounces: 1.51
Weight grams: 42.81

SKU HRC33325S
Barcode # 0669962330046
Brand Hitec
Shipping Weight 0.1000kg
Shipping Width 0.070m
Shipping Height 0.060m
Shipping Length 0.080m
Shipping Cubic 0.000336000m3
