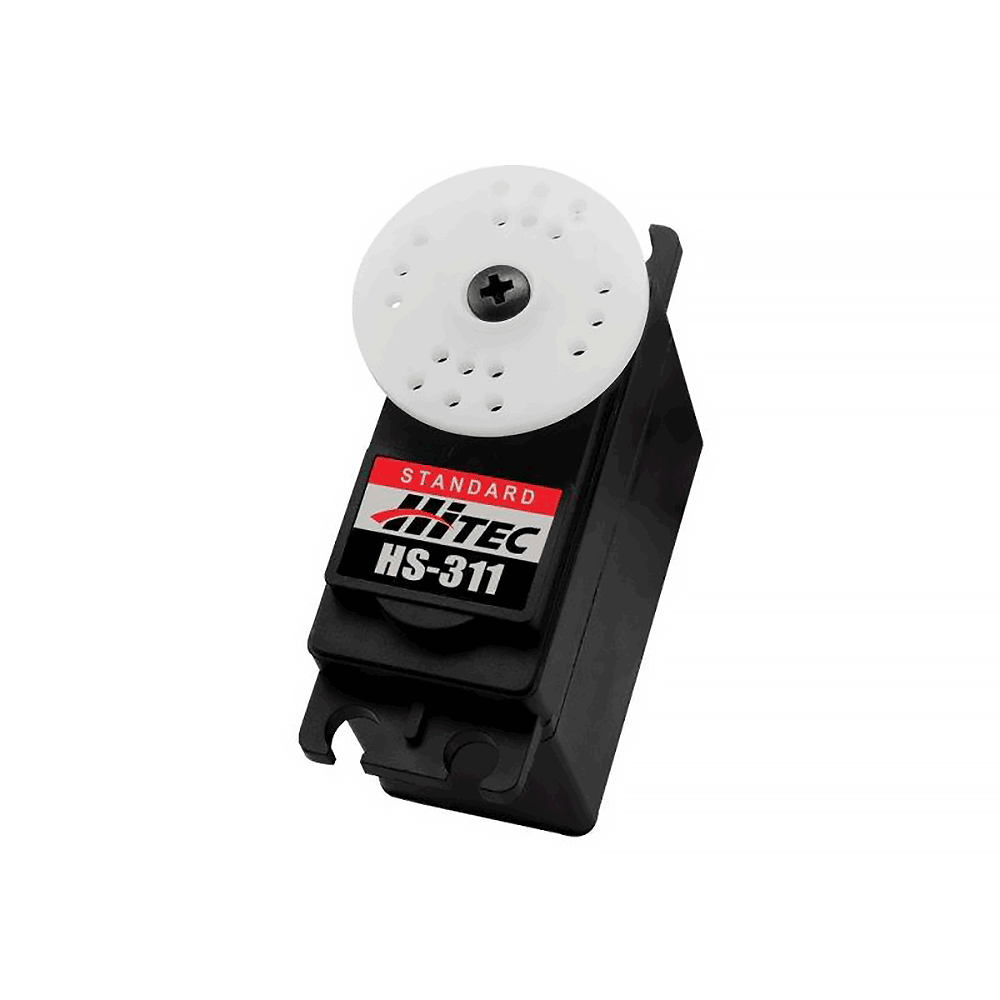

The HS-311 sport servo provides the novice modeler all the performance and reliability you would expect to find in a more expensive servo. Combined with precise resin gears and SMT circuitry, the HS-311 represents a remarkable value in today's R/C market.

Features

  • Our Low Cost Standard Size Servo
  • Reliable Three-Pole Ferrite Motor
  • Durable Resin Gears
  • Popular Selling Servo

Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.19 ~ 0.15
Maximum Torque Range oz. / in.: 42 ~ 49
Maximum Torque Range kg. / cm.: 3.0 ~ 3.5
Current Draw at Idle: 7.7 mA
No Load Operating Current Draw: 180 mA
Stall Current Draw: 800 mA
Dead Band Width: 5 µs

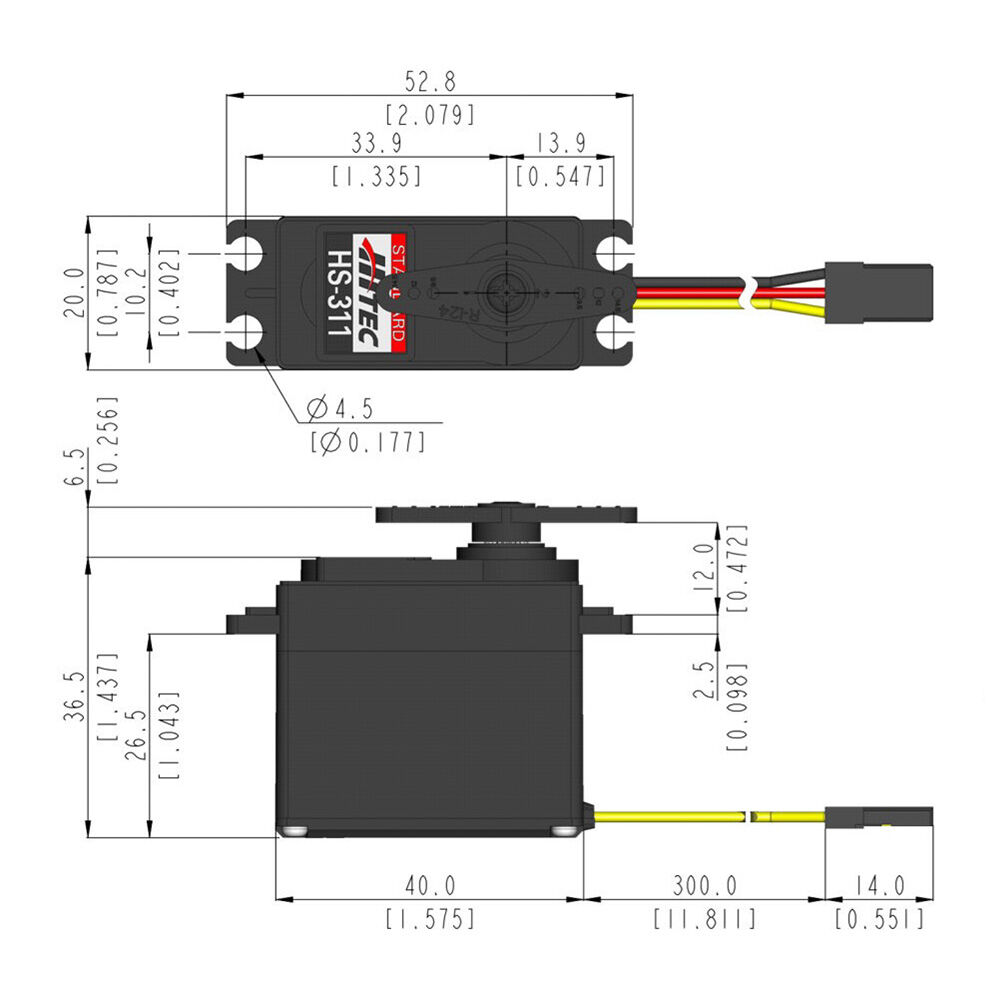

Physical Specifications
Dimensions (Inches): 1.57 x 0.78 x 1.43
Dimensions (Metric): 40.0 x 20.0 x 36.5
Weight (Ounces): 1.51
Weight (Gram): 43.0
Circuit Type: HT7003 Analog SMT
Motor Type: 3 Pole Metal Brush Ferrite
Gear Material: Nylon
Bearing Type: None
Output Shaft (type / Ømm): Standard 24
Case Material: Plastic
Dust / Water Resistance: N / A
Connector Gauge (AWG) / Strand Count: 25 / 40

SKU HRC31311S
Barcode # 0669962310819
Brand Hitec
Shipping Weight 0.1000kg
Shipping Width 0.070m
Shipping Height 0.060m
Shipping Length 0.080m
Shipping Cubic 0.000336000m3
