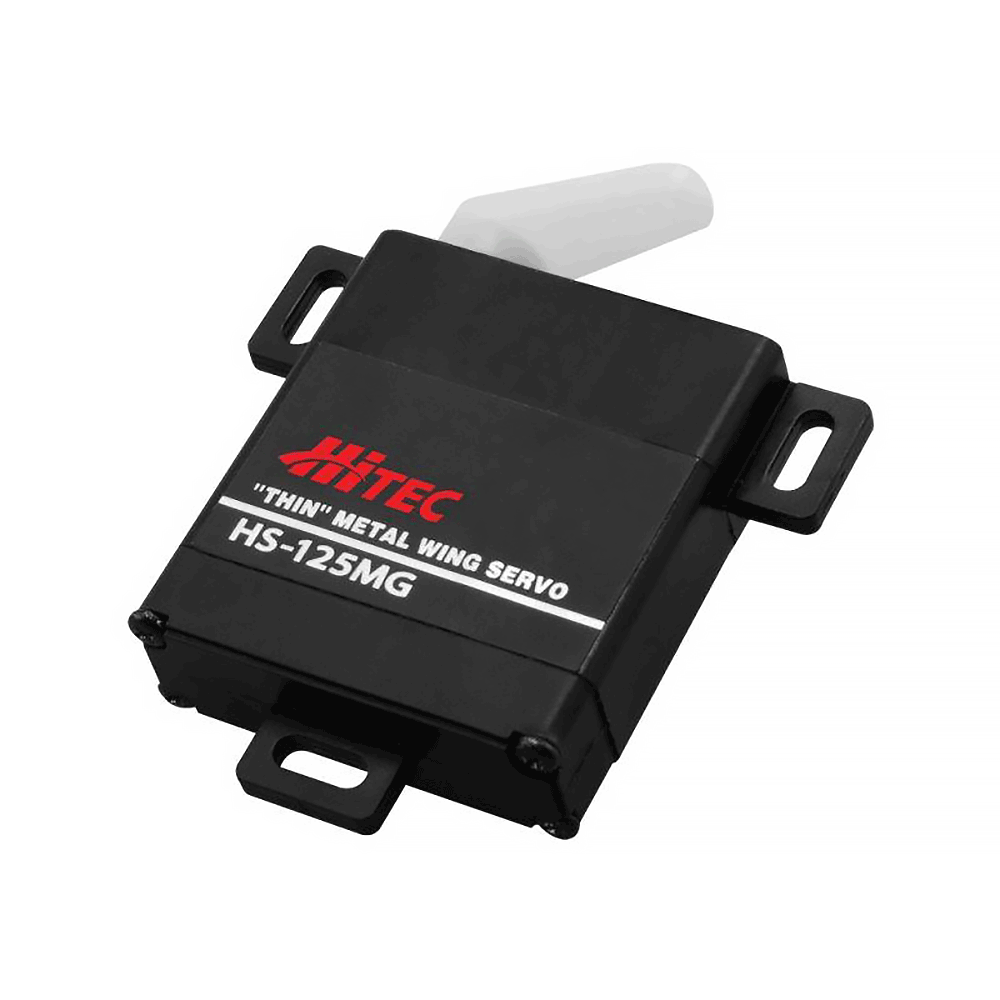

The analog HS-125MG is truly a super thin servo measuring 1.2” x 0.4” x 1.3”. Featuring Hitec’s MP Gear, the HS-125MG is very durable, and a perfect fit in the slim wings of today’s high performance gliders.

Features

  • Super Thin Wing Servo
  • Strong Metal Gears
  • Dual Ball Bearings
  • Perfectly Designed to Fit in Slim Aircraft and Glider Wings

Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.17 ~ 0.13
Maximum Torque Range oz. / in.: 42 ~ 49
Maximum Torque Range kg. / cm.: 3.0 ~ 3.5
Current Draw at Idle: 8 mA
No Load Operating Current Draw: 230 mA
Stall Current Draw: 1,200 mA
Dead Band Width: 1 µs

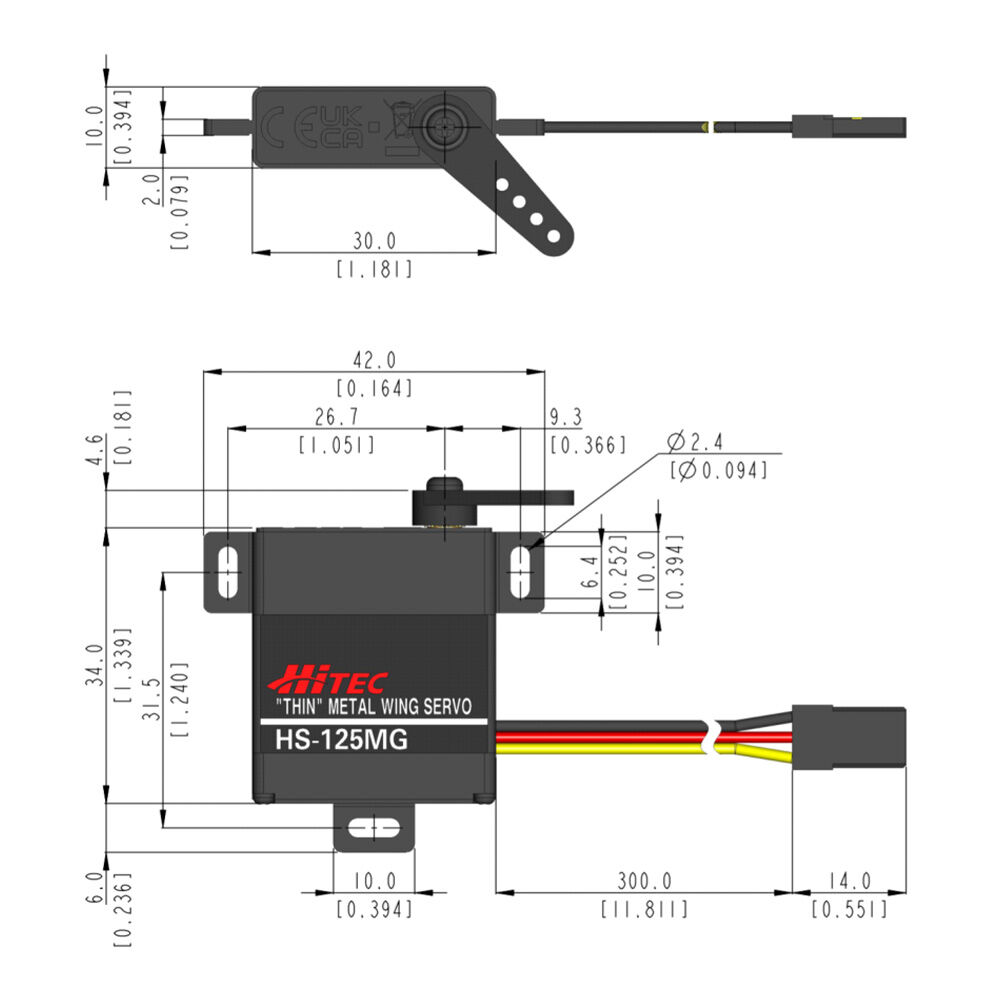

Physical Specifications
Dimensions (Inches): 1.18 x 0.39 x 1.33
Dimensions (Metric): 30.0 x 10.0 x 34.0
Weight (Ounces): 0.84
Weight (Gram): 24.0
Circuit Type: HT7003 Analog SMT
Motor Type: 3 Pole Metal Brush Ferrite
Gear Material: Metal
Bearing Type: Dual Ball Bearing
Output Shaft (type / Ømm): Micro 25
Case Material: Plastic
Dust / Water Resistance: N / A
Connector Gauge (AWG) / Strand Count: 25 / 40

SKU HRC32125S
Barcode # 0669962320443
Brand Hitec
Shipping Weight 0.0500kg
Shipping Width 0.070m
Shipping Height 0.060m
Shipping Length 0.080m
Shipping Cubic 0.000336000m3
