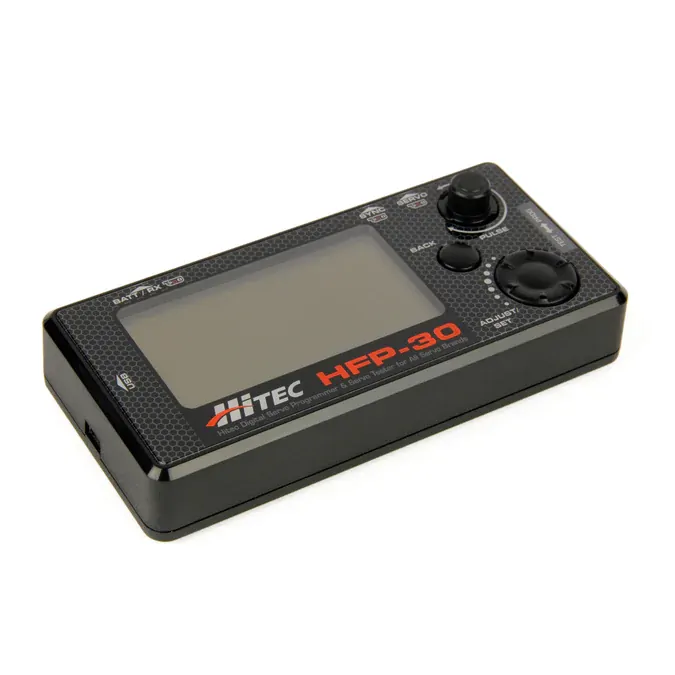

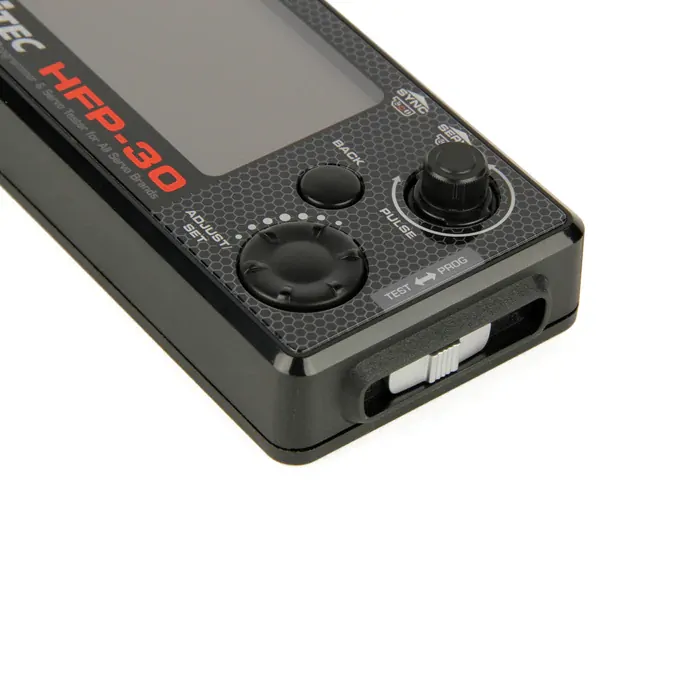

Hitec's lightweight HFP-30 Field Programmer represents the latest in digital servo testing and programming units. Packed with advanced features and a large, easy-to-read LCD screen, it efficiently programs all Hitec digital servos, including the HS-5XXX, HS-7XXX, brushless HSB-9XXX and the latest D-Series. Operating on a wide voltage range of 4.8 to 8.4, the Hitec HFP-30 is a must-have accessory that youll quickly find indispensable.

Manual

Features

• Set EPA/Neutral
• Servo Sync
• Set Rotation (Clockwise / Counter-Clockwise)
• Set Deadband (DB_Width)
• Set Speed
• Set Failsafe
• Factory Reset (Factory Default Set)
• Set ID (ID_Read) (unique to D Series)
• Set Soft Start (unique to D Series and B Series)
• Set Resolution (unique to 5/7 Series)
• Set Overload Protection (OLP) (unique to 5/7 Series)

D Series Program Mode

• Set EPA/Neutral
• Servo Sync
• Set Rotation (CW_CCW)
• Set Deadband (DB_Width)
• Set Speed
• Set ID (ID_Read)
• Set Failsafe
• Set Soft Start
• Factory Reset (Factory Default Set)

5/7 Series Program Mode (For 5xxx*/7xxx Servos)

• Set EPA/Neutral
• Servo Sync
• Set Rotation (CW_CCW)
• Set Deadband (DB_Width)
• Set Speed
• Set Failsafe
• Set Resolution
• Set Overload Protection (OLP)
• Factory Reset (Factory Default Set)

B Series Program Mode (BLDC Servos)

• Set EPA/Neutral
• Servo Sync
• Set Rotation (CW_CCW)
• Set Deadband (DB_Width)
• Set Speed
• Set Failsafe
• Set Soft Start
• Factory Reset (Factory Default Set)
