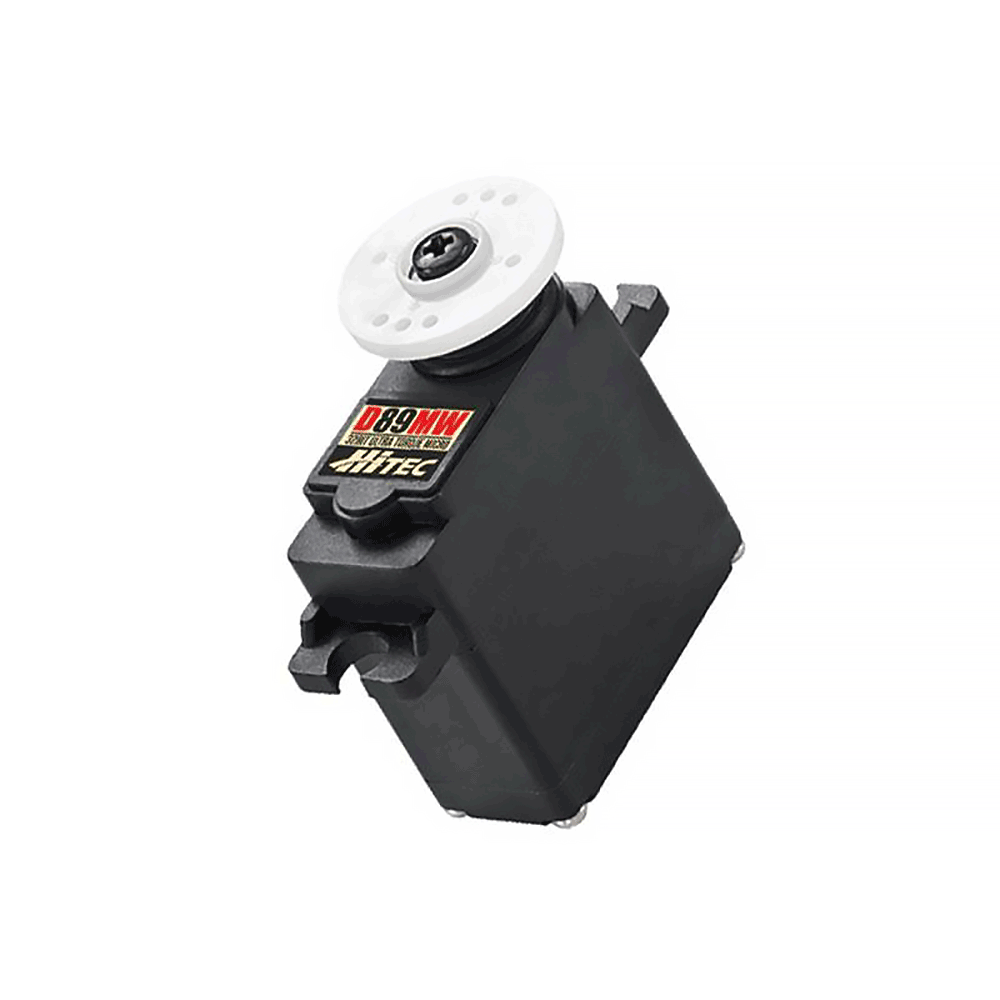

With 32-bit high resolution, ultra-response technology and wide voltage operation, the mighty micro-sized D89MW delivers solid power in a lightweight package. Its efficient coreless motor makes this micro servo a standout in its class. With soft-start enabled circuitry, 4096 high-resolution and a long-life potentiometer, the D89MW allows for smooth and decisive movement and accuracy. Programmable application-specific parameters provide the ultimate in maximum servo performance.

  • Ideal for 3D airplanes where size and weight are a factor without sacrificing performance.

Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 7.4V
Speed (Second @ 60°): 0.17 ~ 0.11
Maximum Torque Range oz. / in.: 74 ~ 118
Maximum Torque Range kg. / cm.: 5.3 ~ 8.5
Current Draw at Idle: 30 mA
No Load Operating Current Draw: 300 mA
Stall Current Draw: 2,900 mA
Dead Band Width: N / A

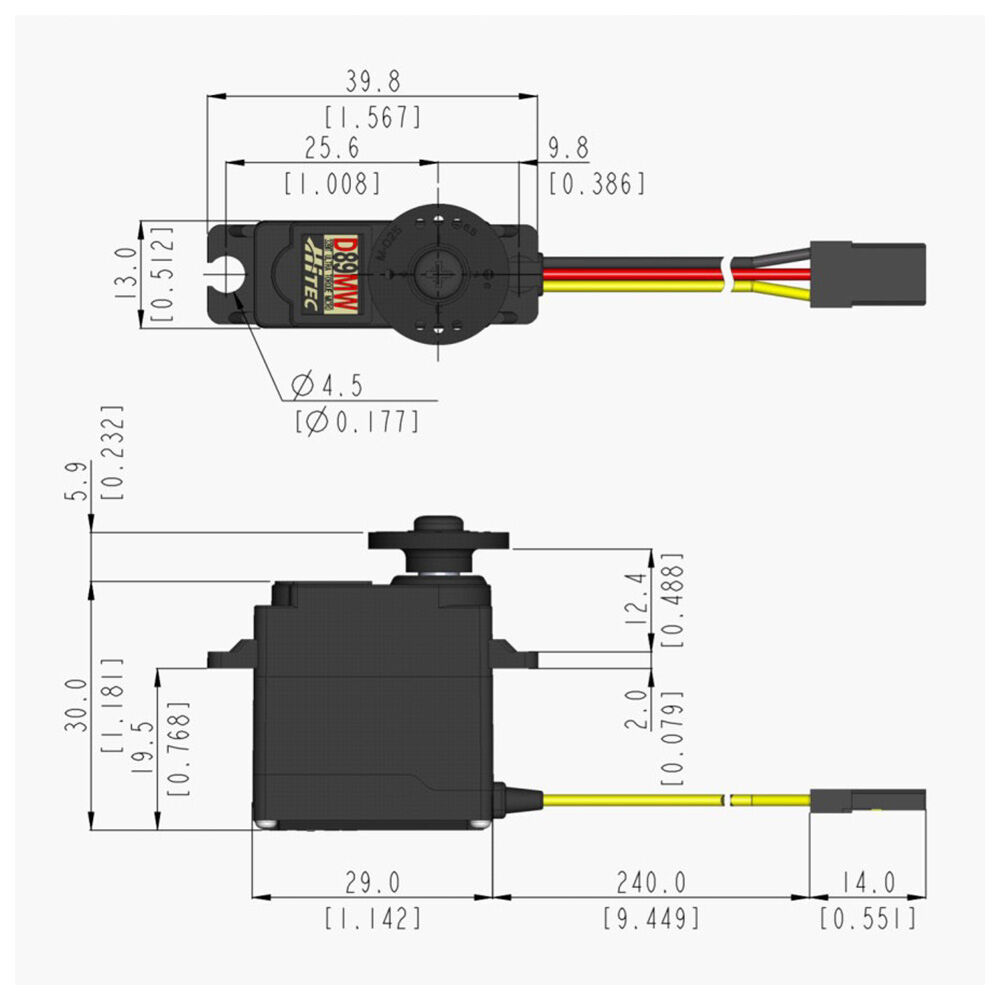

Physical Specifications
Dimensions (Inches): 1.14 x 0.51 x 1.18
Dimensions (Metric): 29.0 x 13.0 x 30.0
Weight (Ounces): 0.88
Weight (Gram): 25.0
Circuit Type: 32bit Programmable Digital
Motor Type: Coreless Metal Brush
Gear Material: 5 Metal Gears
Bearing Type: Dual Ball Bearing
Output Shaft (type / Ømm): 25 / 6
Case Material: Plastic
Dust / Water Resistance: N / A
Connector Gauge (AWG) / Strand Count: N / A

SKU HRC36089
Barcode # 0669962360890
Brand Hitec
Shipping Weight 0.0800kg
Shipping Width 0.090m
Shipping Height 0.050m
Shipping Length 0.110m
Shipping Cubic 0.000495000m3
