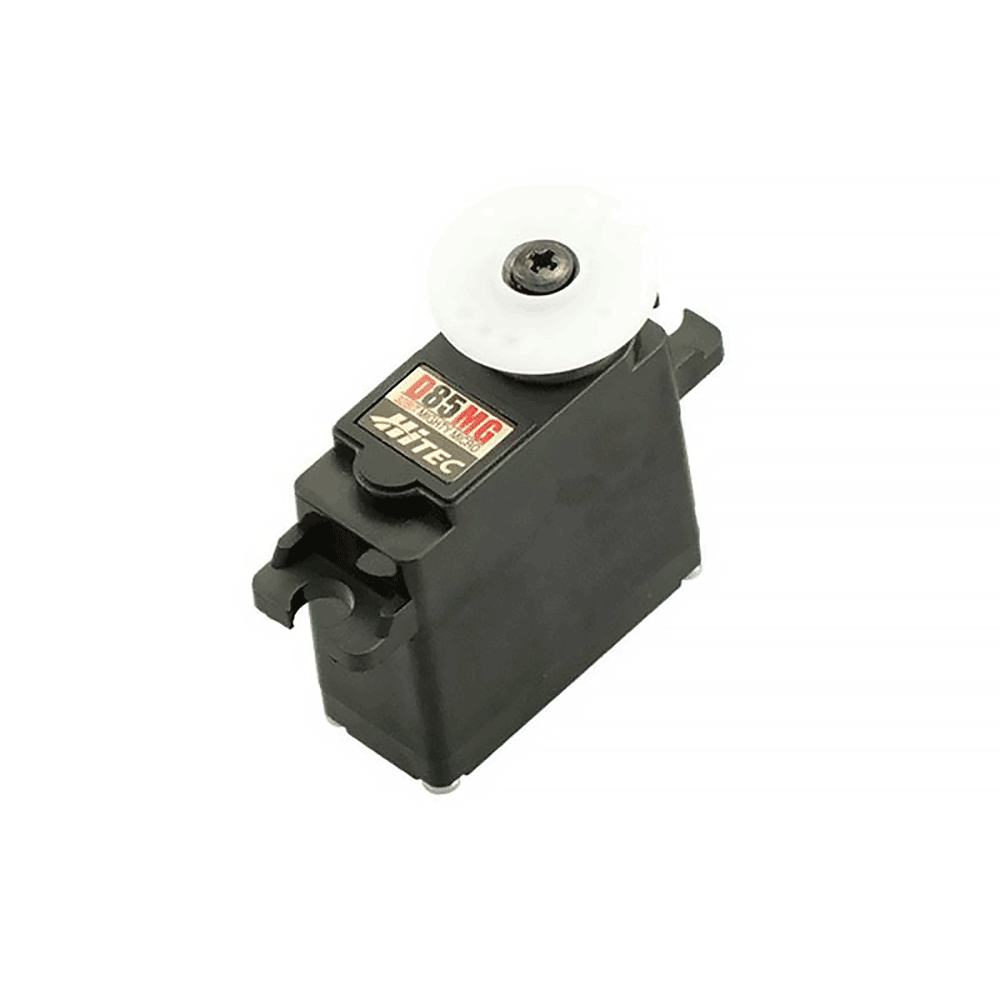

Engineered with our state-of-the-art D-Series technology, this “micro but mighty” D85MG servo is an upgrade from the  popular HS-5085MG. With soft-start enabled circuitry, 4096 high-resolution and a long-life potentiometer, the D85MG allows for smooth and decisive movement and accuracy. Programmable application-specific parameters provide the ultimate in maximum servo performance.

• Ideal for 3m gliders; < 40 oz. 3D airplanes; < 70 oz. scale planes and 1/16 or smaller surface vehicles

Performance Specifications
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.17 ~ 0.13
Maximum Torque Range oz. / in.: 50 ~ 60
Maximum Torque Range kg. / cm.: 3.6 ~ 4.3
Current Draw at Idle: 3 mA
No Load Operating Current Draw: 290 mA
Stall Current Draw: 2,150 mA
Dead Band Width: 2 µs

Physical Specifications

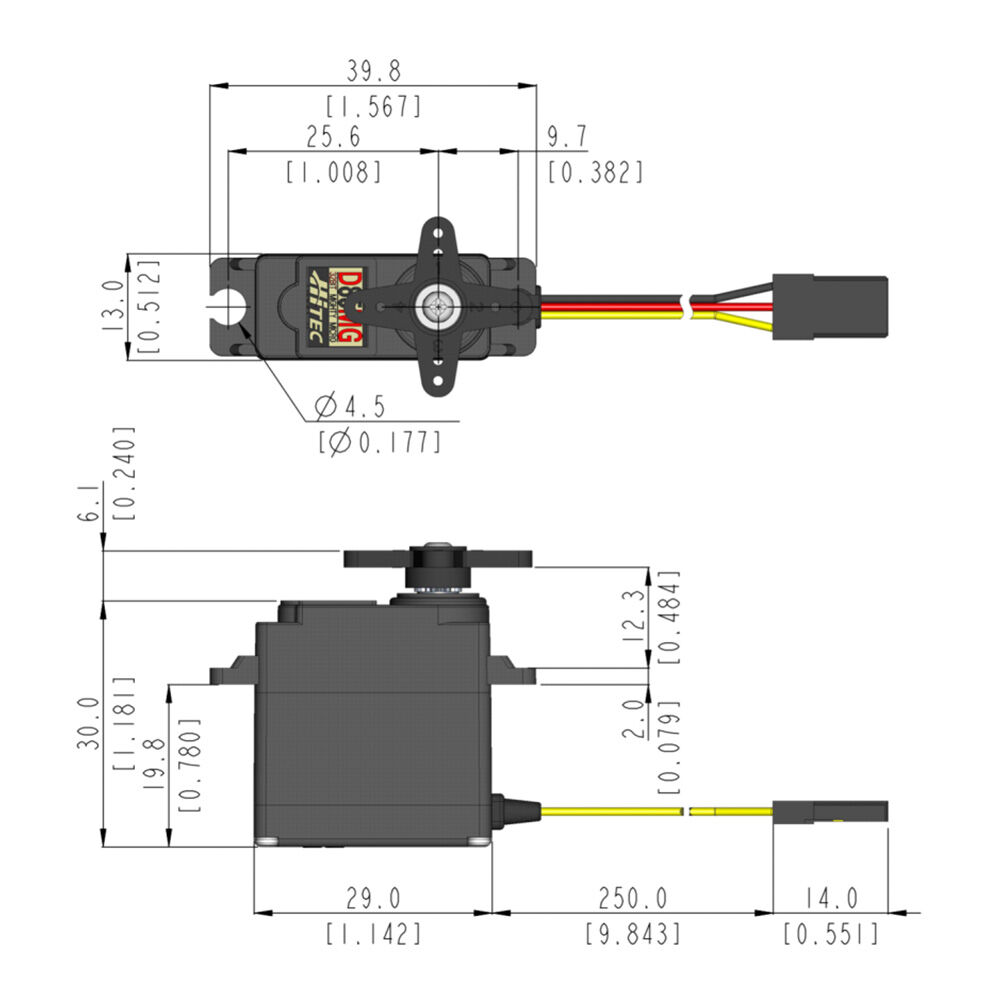

Dimensions (Inches): 1.14 x 0.51 x 1.18
Dimensions (Metric): 29.0 x 13.0 x 30.0
Weight (Ounces): 0.77
Weight (Gram): 21.9
Circuit Type: 32bit Programmable Digital
Motor Type: 3 Pole Metal Brush Ferrite
Gear Material: Metal
Bearing Type: Top Ball Bearing
Output Shaft (type / Ømm): Standard 24
Case Material: Plastic
Dust / Water Resistance: N / A
Connector Gauge (AWG) / Strand Count: 28 / 20
